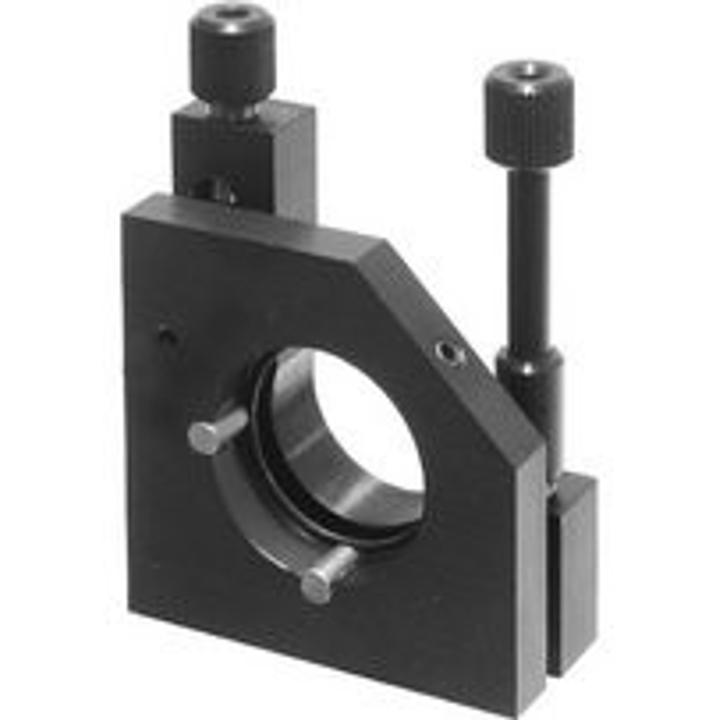

Beamsplitter/Optics Mount 840-0130-T SKU: 840-0130-T
• Adjustment of both angles is controlled from one side • Ideal for high density optical schemes • Fine adjustment screws with 0.25 mm pitch • Travel range ±2° • Hardened inserts under adjusters • Original L-shaped flat spring Precision Optical Mounts of Side Control enable to…
Variant specifications
| Product | Value |
|---|---|
| Product Type | Manual Optical Positioner, 2-screws |
| Mounted Optics Diameter | 25.4 mm |
| Mount Material and Coat | Black Anodised Aluminum |
| Angular Tilt Range | 4 Deg |
| Tilt Sensitivity | 10 sec |
| Number of Axes | 2 |
| Mount Clear Aperture | 24 mm |
| Width | 50 mm |
| Length | 21 mm |
| Height | 73 mm |
