Brewster Windows SKU: 410-0508
Brewster window polarizer is used in the laser cavity to transmit 100% of p-polarized component without reflection losses and to introduce losses for s-polarized component. Total reflection of s-polarized component from the Brewster window is up to 22 % for UVFS and up to 26%…
Variant specifications
| Specification | Value |
|---|---|

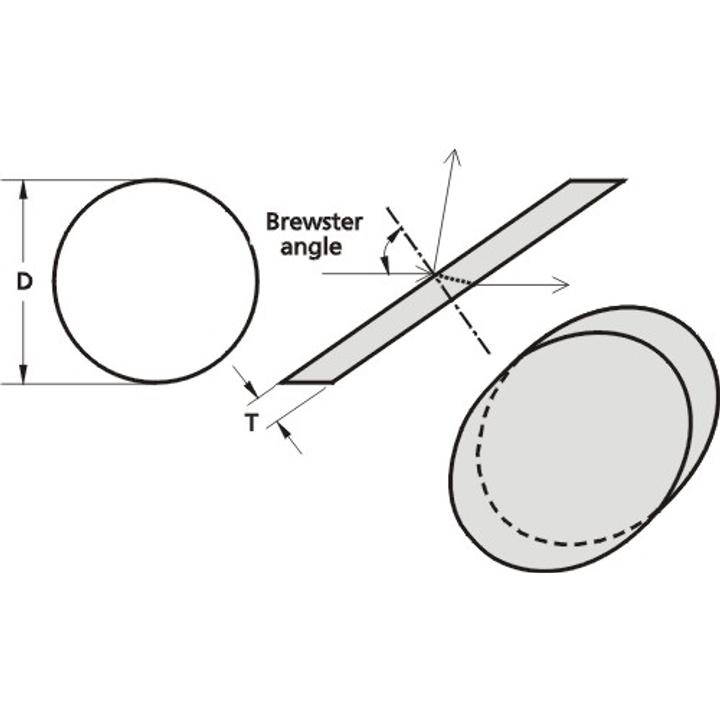

| Minor axis D | 50 mm |
| Thickness T | 8 mm |
| Material | BK7 |
| Group | BK7 Brewster Windows |
Shared product specifications
These specifications apply across the Brewster Windows product family.
| Material | BK7, UV FS |
| Surface quality | 20-10 scratch & dig (MIL-PRF-13830B) |
| Wavefront distortion | λ / 10 @ 633 nm |
| Clear aperture | 90% of diameter |
| Parallelism | < 10 arcsec |
| Axis tolerance | +0.00, -0.12 mm |
| Thickness tolerance | ±0.2 mm |
