Right Angle Prisms SKU: 330-1155
• 45-45-90 degree prisms • Can be used as internal or external reflectors or as retro - reflectors Right Angle Prisms are used to direct beams at 90 degrees by using hypotenuse face in total internal reflection (TIR). The right angle prisms are often preferable to an inclined…
Variant specifications
| Specification | Value |
|---|---|
| Material | UV FS |

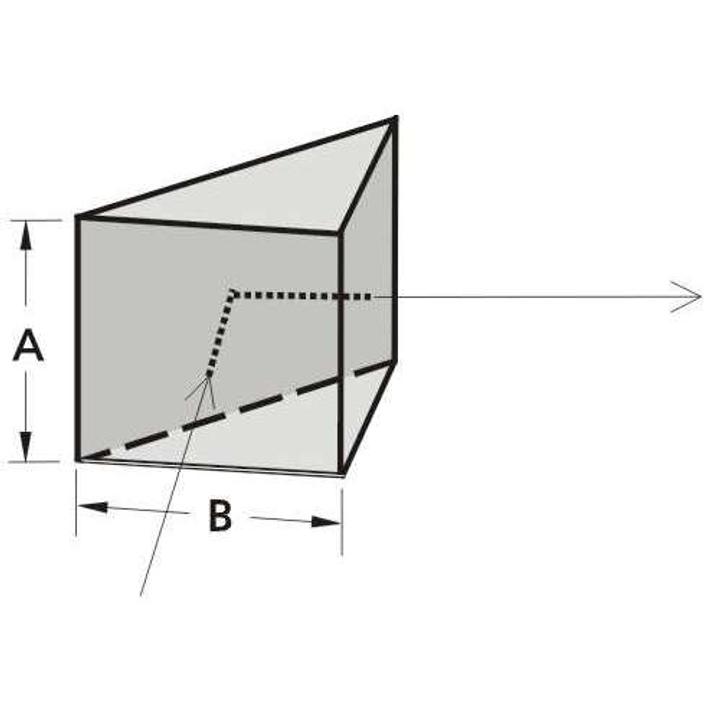

| Size of a face A x B | 15.0 x 15.0 mm |
| 90° angle tolerance | 5 arcsec |
| Pyramidal tolerance | 30 arcsec |
| Group | UVFS Right Angle Prisms |
Shared product specifications
These specifications apply across the Right Angle Prisms product family.
| Material | BK7, UV FS |
| Surface quality | 40-20 scratch & dig (MIL-PRF-13830B) |
| Clear aperture | 80% of the face size |
| Surface flatness | λ / 4 @ 633 nm |
| 90° angle tolerance | ±2 arcmin or ±5 arcsec |
| Pyramidal tolerance | ±1 arcmin or ±30 arcsec |
| Dimensions | ±0.25 mm |
Variant files
Technical drawings, models and data files for SKU 330-1155.
Product brochures
Shared documentation for the complete product family.
