Group Velocity Delay Compensation Plates SKU: 225-2212
• Made of calcite crystals • Designed for different GVD compensation ranges • Clear aperture Ø12 mm (up to Ø20 mm are available on request) • Mounted into 1" ring holder We offer Group Velocity Delay (GVD) compensation plates designed for specified ranges of time delay…
Variant specifications
| Specification | Value |
|---|---|
| Clear aperture | ø 12 mm |
| Coating | BBAR @ 1030 + 515 nm |

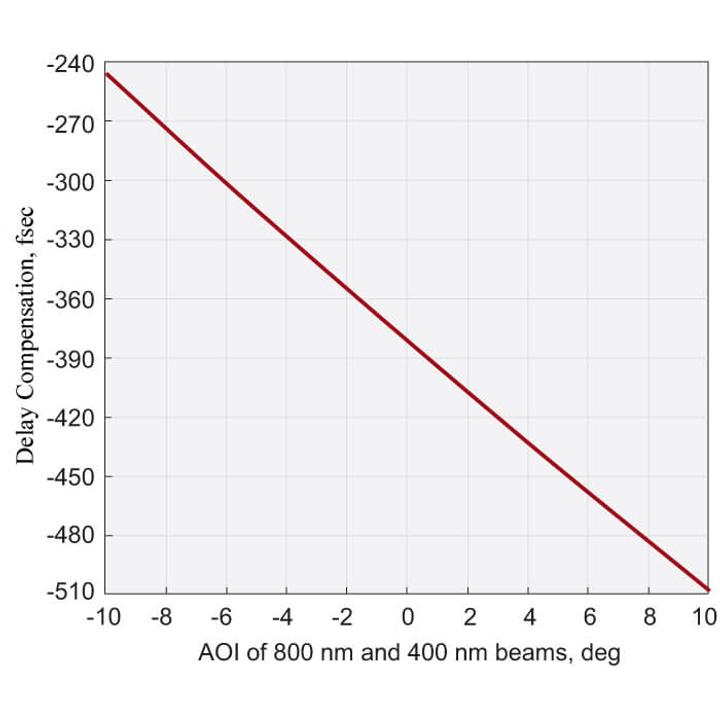

| Delay Compensation Range* | 295-463 fs |
| Outer Diameter | ø 25.4 mm mount |
Shared product specifications
These specifications apply across the Group Velocity Delay Compensation Plates product family.
| Material | Natural Calcite |
| Clear aperture | Ø12 mm |
| Ring mount outer diameter | 25.4 mm +0.0 / -0.2 mm |
| Surface quality | 20-10 scratch & dig (MIL-PRF-13830B) |
| Wavefront distortion | λ / 4 @ 633 nm |
| Parallelism | <3 arc min |
| AR coating | R<0.5 % 760-840 nm and R<1% at 380-420 nm R<0.5% at 500-530+1000-1060 nm |
| Laser damage threshold | > 0.1 J / cm^2, 50 fsec pulse, 800 nm typical, 100 Hz |
Classification
| Line | femtoline |
