Biconcave Lenses SKU: 114-0118E
• Have negative focal lengths diverge collimated incident light • Form only virtual images which are seen through the lens • Minimize spherical aberration, coma and distortion at unit conjugate ratio These lenses are symmetrical with equal radii on both sides. The…

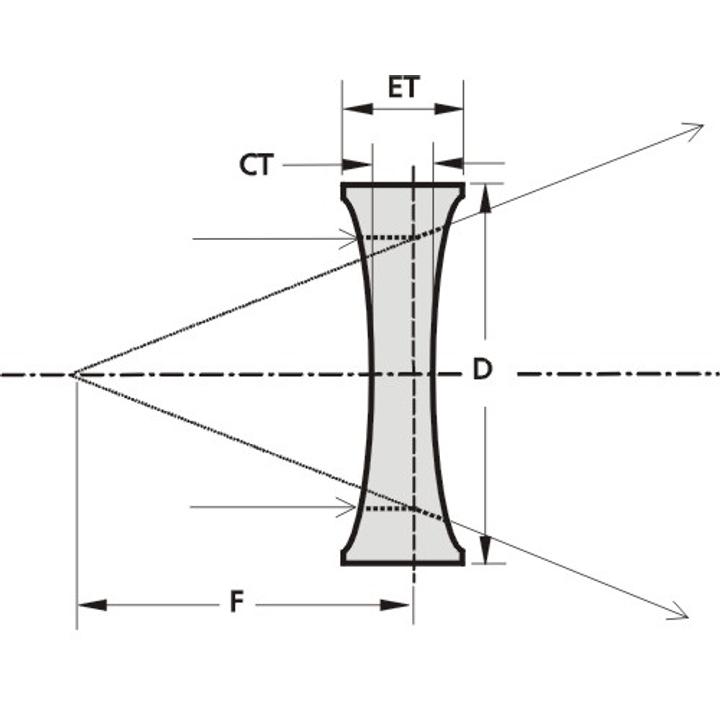

Variant specifications
| Specification | Value |
|---|---|
| Material | BK7 |
| Diameter | 12.7 mm |
| CT | 2.8 mm |
| ET | 3 mm |
| ROC | -104.2 mm |
| Focal Length | -100 mm |
| Group | BK7, Size: dia 12.7 mm |
Shared product specifications
These specifications apply across the Biconcave Lenses product family.
| Material | BK7, UV FS |
| Surface quality | 40-20 scratch & dig (MIL-PRF-13830B) |
| Clear aperture | 90% of the diameter |
| Diameter tolerance | +0.00, -0.12 mm |
| Thickness tolerance | ±0.2 mm |
| Surface irregularity | λ / 8 @ 633 nm |
| Concentricity | 3 arcmin |
| Paraxial focal length: / BK7 / UV FS | ±2% @ 546 nm / ±2% @ 355 nm |
