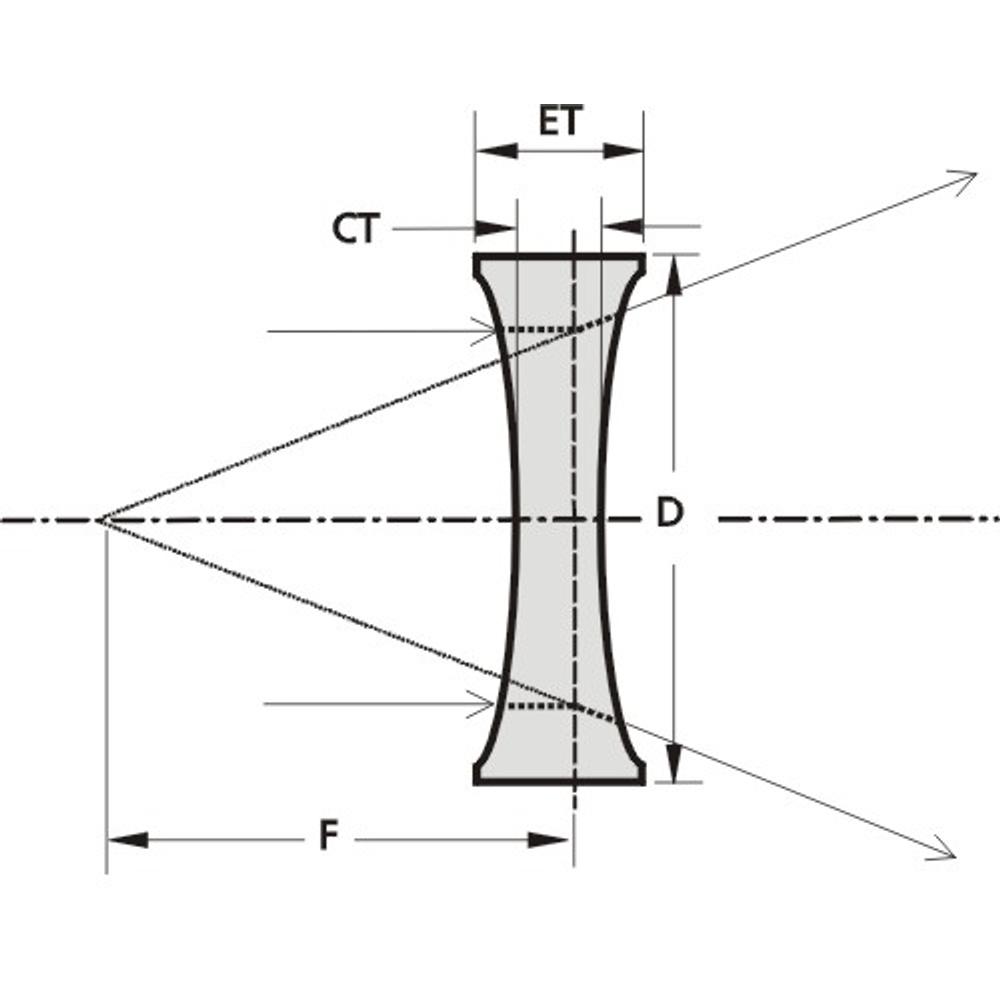

Biconcave Lenses
• Have negative focal lengths diverge collimated incident light • Form only virtual images which are seen through the lens • Minimize spherical aberration, coma and distortion at unit conjugate ratio These… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Configure & order — pick a catalog variant or configure your own
Product
Diameter
12.7 mm - 25.4 mm · 2 values
Any
mm
mm
Center Thickness
1.3 mm - 4.8 mm · 20 values
Any
mm
mm
Focal Length
-500 mm - -12.7 mm · 14 values
Any
mm
mm
Focal Length Wavelength
355 nm - 546 nm · 2 values
Any
nm
nm
36
catalog variants — refine the spec to narrow it down.
| SKU | Diameter | Center Thickness | Focal Length | Focal Length Wavelength | Power and Irregularity, fringes @633 nm | Coating | |
|---|---|---|---|---|---|---|---|
| 114-0104E | 12.7 mm | 3.2 mm | -12.7 mm | 546 nm | -(0.25) | Uncoated |
49 in stock
Ships in: 2–5 calendar days
$24
|
| 114-0106E | 12.7 mm | 2.2 mm | -25 mm | 546 nm | -(0.25) | Uncoated |
12 in stock
Ships in: 2–5 calendar days
$24
|
| 114-0108E | 12.7 mm | 2.4 mm | -40 mm | 546 nm | -(0.25) | Uncoated |
2 in stock
Ships in: 2–5 calendar days
$24
|
| 114-0110E | 12.7 mm | 2.6 mm | -50 mm | 546 nm | -(0.25) | Uncoated |
Out of stock
Ships in: 58–61 calendar days
$24
|
| 114-0112E | 12.7 mm | 2.6 mm | -60 mm | 546 nm | -(0.25) | Uncoated |
Out of stock
Ships in: 62–65 calendar days
$24
|
| 114-0114E | 12.7 mm | 2.7 mm | -75 mm | 546 nm | -(0.25) | Uncoated |
Out of stock
Ships in: 62–65 calendar days
$24
|
| 114-0118E | 12.7 mm | 2.8 mm | -100 mm | 546 nm | -(0.25) | Uncoated |
3 in stock
Ships in: 2–5 calendar days
$24
|
| 114-0120E | 12.7 mm | 1.7 mm | -125 mm | 546 nm | -(0.25) | Uncoated |
17 in stock
Ships in: 2–5 calendar days
$23
|
| 114-0124E | 12.7 mm | 1.8 mm | -150 mm | 546 nm | -(0.25) | Uncoated |
9 in stock
Ships in: 2–5 calendar days
$23
|
| 114-0128E | 12.7 mm | 1.8 mm | -200 mm | 546 nm | -(0.25) | Uncoated |
18 in stock
Ships in: 2–5 calendar days
$23
|
| 114-0132E | 12.7 mm | 1.8 mm | -250 mm | 546 nm | -(0.25) | Uncoated |
7 in stock
Ships in: 2–5 calendar days
$23
|
| 114-0204E | 25.4 mm | 4.8 mm | -25 mm | 546 nm | -(0.25) | Uncoated |
12 in stock
Ships in: 2–5 calendar days
$28
|
| 114-0206E | 25.4 mm | 2.7 mm | -40 mm | 546 nm | -(0.25) | Uncoated |
80 in stock
Ships in: 2–5 calendar days
$28
|
| 114-0208E | 25.4 mm | 4.4 mm | -50 mm | 546 nm | -(0.25) | Uncoated |
171 in stock
Ships in: 2–5 calendar days
$28
|
| 114-0210E | 25.4 mm | 2.6 mm | -60 mm | 546 nm | -(0.25) | Uncoated |
70 in stock
Ships in: 2–5 calendar days
$28
|
| 114-0212E | 25.4 mm | 3.7 mm | -75 mm | 546 nm | -(0.25) | Uncoated |
18 in stock
Ships in: 2–5 calendar days
$27
|
| 114-0214E | 25.4 mm | 3.2 mm | -100 mm | 546 nm | -(0.25) | Uncoated |
34 in stock
Ships in: 2–5 calendar days
$26
|
| 114-0218E | 25.4 mm | 3.1 mm | -125 mm | 546 nm | -(0.25) | Uncoated |
15 in stock
Ships in: 2–5 calendar days
$26
|
| 114-0220E | 25.4 mm | 3 mm | -150 mm | 546 nm | -(0.25) | Uncoated |
24 in stock
Ships in: 2–5 calendar days
$26
|
| 114-0224E | 25.4 mm | 2.8 mm | -200 mm | 546 nm | -(0.25) | Uncoated |
31 in stock
Ships in: 2–5 calendar days
$26
|
| 114-0228E | 25.4 mm | 2.9 mm | -250 mm | 546 nm | -(0.25) | Uncoated |
29 in stock
Ships in: 2–5 calendar days
$26
|
| 114-0234E | 25.4 mm | 3.2 mm | -400 mm | 546 nm | -(0.25) | Uncoated |
36 in stock
Ships in: 2–5 calendar days
$26
|
| 114-0238E | 25.4 mm | 3.2 mm | -500 mm | 546 nm | -(0.25) | Uncoated |
18 in stock
Ships in: 2–5 calendar days
$26
|
| 114-1104E | 12.7 mm | 3.7 mm | -12.7 mm | 355 nm | -(0.25) | Uncoated |
54 in stock
Ships in: 2–5 calendar days
$59
|
| 114-1108E | 12.7 mm | 2.3 mm | -25 mm | 355 nm | -(0.25) | Uncoated |
62 in stock
Ships in: 2–5 calendar days
$59
|
| 114-1110E | 12.7 mm | 1.3 mm | -30 mm | 355 nm | -(0.25) | Uncoated |
10 in stock
Ships in: 2–5 calendar days
$59
|
| 114-1114E | 12.7 mm | 2.6 mm | -50 mm | 355 nm | -(0.25) | Uncoated |
10 in stock
Ships in: 2–5 calendar days
$59
|
| 114-1118E | 12.7 mm | 2.7 mm | -75 mm | 355 nm | -(0.25) | Uncoated |
24 in stock
Ships in: 2–5 calendar days
$59
|
| 114-1122E | 12.7 mm | 2.8 mm | -100 mm | 355 nm | -(0.25) | Uncoated |
Out of stock
Ships in: 62–65 calendar days
$57
|
| 114-1204E | 25.4 mm | 3 mm | -25 mm | 355 nm | -(0.25) | Uncoated |
46 in stock
Ships in: 2–5 calendar days
$86
|
| 114-1205E | 25.4 mm | 3 mm | -30 mm | 355 nm | -(0.25) | Uncoated |
10 in stock
Ships in: 2–5 calendar days
$86
|
| 114-1208E | 25.4 mm | 4.2 mm | -50 mm | 355 nm | -(0.25) | Uncoated |
20 in stock
Ships in: 2–5 calendar days
$86
|
| 114-1212E | 25.4 mm | 3.8 mm | -75 mm | 355 nm | -(0.25) | Uncoated |
45 in stock
Ships in: 2–5 calendar days
$86
|
| 114-1216E | 25.4 mm | 3.6 mm | -100 mm | 355 nm | -(0.25) | Uncoated |
10 in stock
Ships in: 2–5 calendar days
$86
|
| 114-1220E | 25.4 mm | 3.9 mm | -150 mm | 355 nm | -(0.25) | Uncoated |
42 in stock
Ships in: 2–5 calendar days
$86
|
| 114-1224E | 25.4 mm | 3 mm | -200 mm | 355 nm | -(0.25) | Uncoated |
48 in stock
Ships in: 2–5 calendar days
$84
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Shape Type | Round |
| Diameter Upper Tolerance | 0 mm |
| Center Thickness Upper Tolerance | 0.2 mm |
| Center Thickness Lower Tolerance | -0.2 mm |
| Edge Thickness Upper Tolerance | 0.2 mm |
| Edge Thickness Lower Tolerance | -0.2 mm |
| Focal Length tolerance %, +/- | 2 % |
Surface 1
| Surface Shape | Concave |
| Surface quality, grind or polish | Polished |
| Power and Irregularity, fringes @633 nm | -(0.25) |
| Centration, angle | 0 deg 0 min 0 sec - 0 deg 3 min 0 sec |
| Clear Aperture, % | 90 % - 100 % |
Surface 1, Wavelength 1
| Coating | Uncoated |
Surface 2
| Surface Shape | Concave |
| Surface quality, grind or polish | Polished |
| Power and Irregularity, fringes @633 nm | -(0.25) |
| Clear Aperture, % | 90 % - 100 % |
Surface 2, Wavelength 1
| Coating | Uncoated |
Description
- Have negative focal lengths diverge collimated incident light
- Form only virtual images which are seen through the lens
- Minimize spherical aberration, coma and distortion at unit conjugate ratio
These lenses are symmetrical with equal radii on both sides. The biconcave lenses are often used to expand light beams or to increase focal lengths in optical systems, and are normally used in combination with other lenses. Among the many devices utilising biconcave lenses are laser beam expanders, optical character readers, viewers and projection systems.
A variety of anti-reflection coatings is available for these lenses. For appropriate coating please refer to the Coatings section of the Optical Components catalog. We can supply custom cutting, edging, coating or complete fabrication if required.
