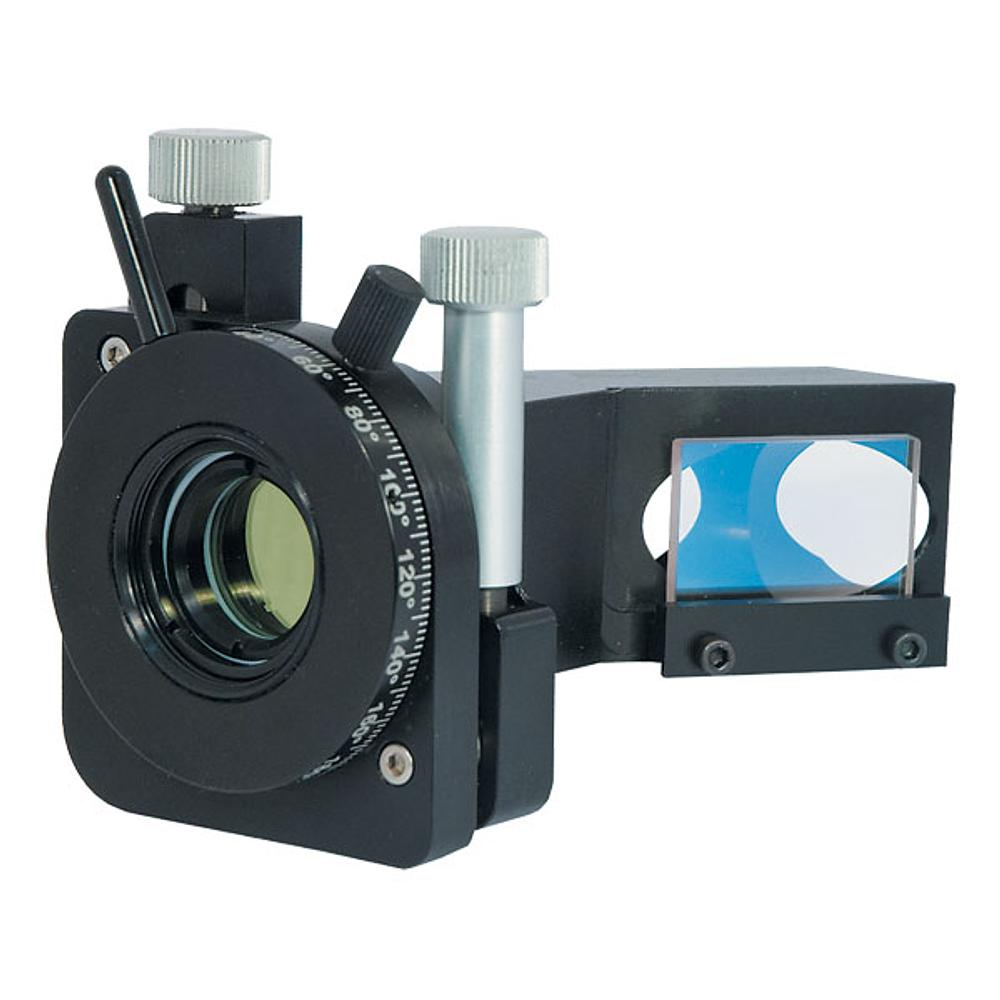

Variable Attenuators for Linearly Polarized Laser Beam 990-0070
• Divides laser beam into two parallel beams of manually adjustable intensity ratio • Large dynamic range • Transmitted beam shift ~0.5 mm • High optical damage threshold • S-Pol attenuation range ~ 0.25% - 99.0% •… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Product Type | Design Wavelength Range | Input Aperture Diameter | Extinction ratio | Angular Tilt Range | Beam Separation Angle | |
|---|---|---|---|---|---|---|---|
| 990-0070-1030 | Collinear type - Manual | 1030 nm - 1030 nm | 17 mm | 500:1 | 4 Deg | 0 deg 0 min 0 sec |
2 in stock
Ships in: 2–5 calendar days
$924
|
| 990-0070-1030B | Collinear type - Manual | 1010 nm - 1050 nm | 17 mm | 500:1 | 4 Deg | 0 deg 0 min 0 sec |
1 in stock
Ships in: 2–5 calendar days
$1,104
|
| 990-0070-1030H | Collinear type - Manual | 1030 nm - 1030 nm | 17 mm | 500:1 | 4 Deg | 0 deg 0 min 0 sec |
Out of stock
$1,014
|
| 990-0070-1030HB | Collinear type - Manual | 1010 nm - 1050 nm | 17 mm | 500:1 | 4 Deg | 0 deg 0 min 0 sec |
Out of stock
$1,194
|
| 990-0070-1064 | Collinear type - Manual | 1064 nm - 1064 nm | 17 mm | 500:1 | 4 Deg | 0 deg 0 min 0 sec |
Out of stock
$816
|
| 990-0070-257 | Collinear type - Manual | 257 nm - 257 nm | 17 mm | 500:1 | 4 Deg | 0 deg 0 min 0 sec |
1 in stock
Ships in: 2–5 calendar days
$1,170
|
| 990-0070-257H | Collinear type - Manual | 257 nm - 257 nm | 17 mm | 500:1 | 4 Deg | 0 deg 0 min 0 sec |
Out of stock
$1,260
|
| 990-0070-266 | Collinear type - Manual | 266 nm - 266 nm | 17 mm | 500:1 | 4 Deg | 0 deg 0 min 0 sec |
1 in stock
Ships in: 2–5 calendar days
$1,170
|
| 990-0070-266H | Collinear type - Manual | 266 nm - 266 nm | 17 mm | 500:1 | 4 Deg | 0 deg 0 min 0 sec |
Out of stock
$1,260
|
| 990-0070-343 | Collinear type - Manual | 343 nm - 343 nm | 17 mm | 500:1 | 4 Deg | 0 deg 0 min 0 sec |
1 in stock
Ships in: 2–5 calendar days
$1,044
|
| 990-0070-343H | Collinear type - Manual | 343 nm - 343 nm | 17 mm | 500:1 | 4 Deg | 0 deg 0 min 0 sec |
Out of stock
$1,134
|
| 990-0070-355 | Collinear type - Manual | 355 nm - 355 nm | 17 mm | 500:1 | 4 Deg | 0 deg 0 min 0 sec |
1 in stock
Ships in: 2–5 calendar days
$936
|
| 990-0070-400 | Collinear type - Manual | 400 nm - 400 nm | 17 mm | 500:1 | 4 Deg | 0 deg 0 min 0 sec |
Out of stock
$924
|
| 990-0070-400B | Collinear type - Manual | 390 nm - 410 nm | 17 mm | 500:1 | 4 Deg | 0 deg 0 min 0 sec |
Out of stock
$1,104
|
| 990-0070-400H | Collinear type - Manual | 400 nm - 400 nm | 17 mm | 500:1 | 4 Deg | 0 deg 0 min 0 sec |
Out of stock
$1,026
|
| 990-0070-400HB | Collinear type - Manual | 390 nm - 410 nm | 17 mm | 500:1 | 4 Deg | 0 deg 0 min 0 sec |
1 in stock
Ships in: 2–5 calendar days
$1,194
|
| 990-0070-515 | Collinear type - Manual | 515 nm - 515 nm | 17 mm | 500:1 | 4 Deg | 0 deg 0 min 0 sec |
2 in stock
Ships in: 2–5 calendar days
$924
|
| 990-0070-515B | Collinear type - Manual | 505 nm - 525 nm | 17 mm | 500:1 | 4 Deg | 0 deg 0 min 0 sec |
Out of stock
$1,104
|
| 990-0070-515H | Collinear type - Manual | 515 nm - 515 nm | 17 mm | 500:1 | 4 Deg | 0 deg 0 min 0 sec |
Out of stock
$1,014
|
| 990-0070-515HB | Collinear type - Manual | 505 nm - 525 nm | 17 mm | 500:1 | 4 Deg | 0 deg 0 min 0 sec |
Out of stock
$1,194
|
| 990-0070-532 | Collinear type - Manual | 532 nm - 532 nm | 17 mm | 500:1 | 4 Deg | 0 deg 0 min 0 sec |
1 in stock
Ships in: 2–5 calendar days
$816
|
| 990-0070-800 | Collinear type - Manual | 800 nm - 800 nm | 17 mm | 500:1 | 4 Deg | 0 deg 0 min 0 sec |
Out of stock
$924
|
| 990-0070-800B | Collinear type - Manual | 780 nm - 820 nm | 17 mm | 500:1 | 4 Deg | 0 deg 0 min 0 sec |
1 in stock
Ships in: 2–5 calendar days
$1,104
|
| 990-0070-800H | Collinear type - Manual | 800 nm - 800 nm | 17 mm | 500:1 | 4 Deg | 0 deg 0 min 0 sec |
Out of stock
$1,014
|
| 990-0070-800HB | Collinear type - Manual | 780 nm - 820 nm | 17 mm | 500:1 | 4 Deg | 0 deg 0 min 0 sec |
1 in stock
Ships in: 2–5 calendar days
$1,194
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Collinear type - Manual |
| Input Aperture Diameter | 17 mm |
| Extinction ratio | 500:1 |
| Weight | 0.35 kg |
| Angular Tilt Range | 4 Deg |
| Beam Separation Angle | 0 deg 0 min 0 sec |
Description
- Divides laser beam into two parallel beams of manually adjustable intensity ratio
- Large dynamic range
- Transmitted beam shift ~0.5 mm
- High optical damage threshold
- S-Pol attenuation range ~ 0.25% - 99.0%
- P-Pol attenuation range ~ 0.5 % - 95.0 %
This Variable Attenuator / Beamsplitter consists of special design Opto-mechanical Adapter and Precision Opto-mechanical Holder 840-0197. Two Thin Film Brewster type polarizers, which reflect s-polarized light while transmitting p-polarized light, are housed into Adapter. Quartz Half Waveplates are housed in rotating holder 840-0197.
The intensity ratio of those two beams may be continuously varied without alteration of other beam parameters by rotating the waveplate. The intensity of either exit beam, or their intensity ratio, can be controlled over a wide dynamic range. P-polarization could be selected for maximum transmission, or high-purity s-polarization could be reflected when maximum attenuation of the transmitted beam takes place. The holder 840-0197 allows to adjust angle of incidence of the Thin Film Brewster type polarizers by ±2° and to get the maximum polarization contrast.
Note: Movable base 820-0090, Rod Holder 820-0050-02 and standard rod should be ordered separately.
