Table Supports 765, 766
• Convenient sizes • Optimal height • Multipurpose in use • Handy assembling Optical Table Supports are primarily designed for support of the Honeycomb Tabletops 720-740. Table Supports are produced from steel tubes of… Read more →
Listed in
Configure & order — pick a catalog variant or configure your own
| SKU | H, mm · L, mm · B, mm · Group | |
|---|---|---|
| 765-0507-AP-1000 | 700±15·700·500 |
Out of stock
—
|
| 765-0507-AP-200 | 675±15·700·500·AP - Passive Air Leveling Vibration Isolator |
Out of stock
—
|
| 765-0507-AP-500 | 675±15·700·500·AP - Passive Air Leveling Vibration Isolator |
Out of stock
—
|
| 765-0507-AR | 665±25·700·500·AR -Rubber Leveling Element |
Out of stock
—
|
| 765-0507-AS | 675±25·700·500·AS - Solid Leveling Element |
Out of stock
—
|
| 765-0512-AP-1000 | 700±15·1200·500 |
Out of stock
—
|
| 765-0512-AP-200 | 675±15·1200·500 |
Out of stock
—
|
| 765-0512-AP-500 | 675±15·1200·500 |
Out of stock
—
|
| 765-0512-AR | 665±25·1200·500·AR -Rubber Leveling Element |
Out of stock
—
|
| 765-0512-AS | 675±25·1200·500·AS - Solid Leveling Element |
Out of stock
—
|
| 765-0812-AP-1000 | 700±15·1200·800 |
Out of stock
—
|
| 765-0812-AP-200 | 675±15·1200·800 |
Out of stock
—
|
| 765-0812-AP-500 | 675±15·1200·800 |
Out of stock
—
|
| 765-0812-AR | 665±25·1200·800 |
Out of stock
—
|
| 765-0812-AS | 675±25·1200·800 |
Out of stock
—
|
| 765-6512-AP-1000 | 700±15·1200·650 |
Out of stock
—
|
| 765-6512-AP-200 | 675±15·1200·650 |
Out of stock
—
|
| 765-6512-AP-500 | 675±15·1200·650 |
Out of stock
—
|
| 765-6512-AR | 665±25·1200·650·AR -Rubber Leveling Element |
Out of stock
—
|
| 765-6512-AS | 675±25·1200·650·AS - Solid Leveling Element |
Out of stock
—
|
| 765-6518-AP-1000 | 700±15·1800·650 |
Out of stock
—
|
| 765-6518-AP-200 | 675±15·1800·650 |
Out of stock
—
|
| 765-6518-AP-500 | 675±15·1800·650 |
Out of stock
—
|
| 765-6518-AR | 665±25·1800·650·AR -Rubber Leveling Element |
Out of stock
—
|
| 765-6518-AS | 675±25·1800·650 |
Out of stock
—
|
| 765-6522-AP-1000 | 700±15·2200·650 |
Out of stock
—
|
| 765-6522-AP-200 | 675±15·2200·650 |
Out of stock
—
|
| 765-6522-AP-500 | 675±15·2200·650 |
Out of stock
—
|
| 765-6522-AR | 665±25·2200·650 |
Out of stock
—
|
| 765-6522-AS | 675±25·2200·650 |
Out of stock
—
|
| 766-0507-AP-1000 | 800±15·700·500·AP - Passive Air Leveling Vibration Isolator |
Out of stock
—
|
| 766-0507-AP-200 | 775±15·700·500 |
Out of stock
—
|
| 766-0507-AP-500 | 775±15·700·500·AP - Passive Air Leveling Vibration Isolator |
Out of stock
—
|
| 766-0507-AR | 765±25·700·500·AR -Rubber Leveling Element |
1 in stock
Ships in: 2–5 calendar days
—
|
| 766-0507-AS | 775±25·700·500·AS - Solid Leveling Element |
Out of stock
—
|
| 766-0512-AP-1000 | 800±15·1200·500·AP - Passive Air Leveling Vibration Isolator |
Out of stock
—
|
| 766-0512-AP-200 | 775±15·1200·500 |
Out of stock
—
|
| 766-0512-AP-500 | 775±15·1200·500 |
Out of stock
—
|
| 766-0512-AR | 765±25·1200·500·AR -Rubber Leveling Element |
Out of stock
—
|
| 766-0512-AS | 775±25·1200·500·AS - Solid Leveling Element |
Out of stock
—
|
| 766-0812-AP-1000 | 800±15·1200·800·AP - Passive Air Leveling Vibration Isolator |
Out of stock
—
|
| 766-0812-AP-200 | 775±15·1200·800 |
Out of stock
—
|
| 766-0812-AP-500 | 775±15·1200·800·AP - Passive Air Leveling Vibration Isolator |
Out of stock
—
|
| 766-0812-AR | 765±25·1200·800·AR -Rubber Leveling Element |
Out of stock
—
|
| 766-0812-AS | 775±25·1200·800·AS - Solid Leveling Element |
Out of stock
—
|
| 766-6512-AP-1000 | 800±15·1200·650·AP - Passive Air Leveling Vibration Isolator |
Out of stock
—
|
| 766-6512-AP-200 | 775±15·1200·650 |
Out of stock
—
|
| 766-6512-AP-500 | 775±15·1200·650·AP - Passive Air Leveling Vibration Isolator |
Out of stock
—
|
| 766-6512-AR | 765±25·1200·650·AR -Rubber Leveling Element |
Out of stock
—
|
| 766-6512-AS | 775±25·1200·650·AS - Solid Leveling Element |
Out of stock
—
|
| 766-6518-AP-1000 | 800±15·1800·650 |
Out of stock
—
|
| 766-6518-AP-200 | 775±15·1800·650 |
Out of stock
—
|
| 766-6518-AP-500 | 775±15·1800·650 |
Out of stock
—
|
| 766-6518-AR | 765±25·1800·650·AR -Rubber Leveling Element |
Out of stock
—
|
| 766-6518-AS | 775±25·1800·650 |
Out of stock
—
|
| 766-6522-AP-1000 | 800±15·2200·650 |
Out of stock
—
|
| 766-6522-AP-200 | 775±15·2200·650 |
Out of stock
—
|
| 766-6522-AP-500 | 775±15·2200·650 |
Out of stock
—
|
| 766-6522-AR | 765±25·2200·650·AR -Rubber Leveling Element |
Out of stock
—
|
| 766-6522-AS | 775±25·2200·650 |
Out of stock
—
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Natural frequency | 3-5 Hz |
| Natural frequency pressure-relieved approx. | 8 Hz |
| Load range per 4 isolators | Load range per 4 isolators |
| AP-200 | 30 - 260 kg (max pressure 5 bar) |
| AP-500 | 140 - 720 kg (max pressure 5 bar) |
| AP-1000 | 220 - 1120 kg (max pressure 6 bar) |
| AR | 1500 kg |
| AS | 3000 kg |
Description
- Convenient sizes
- Optimal height
- Multipurpose in use
- Handy assembling

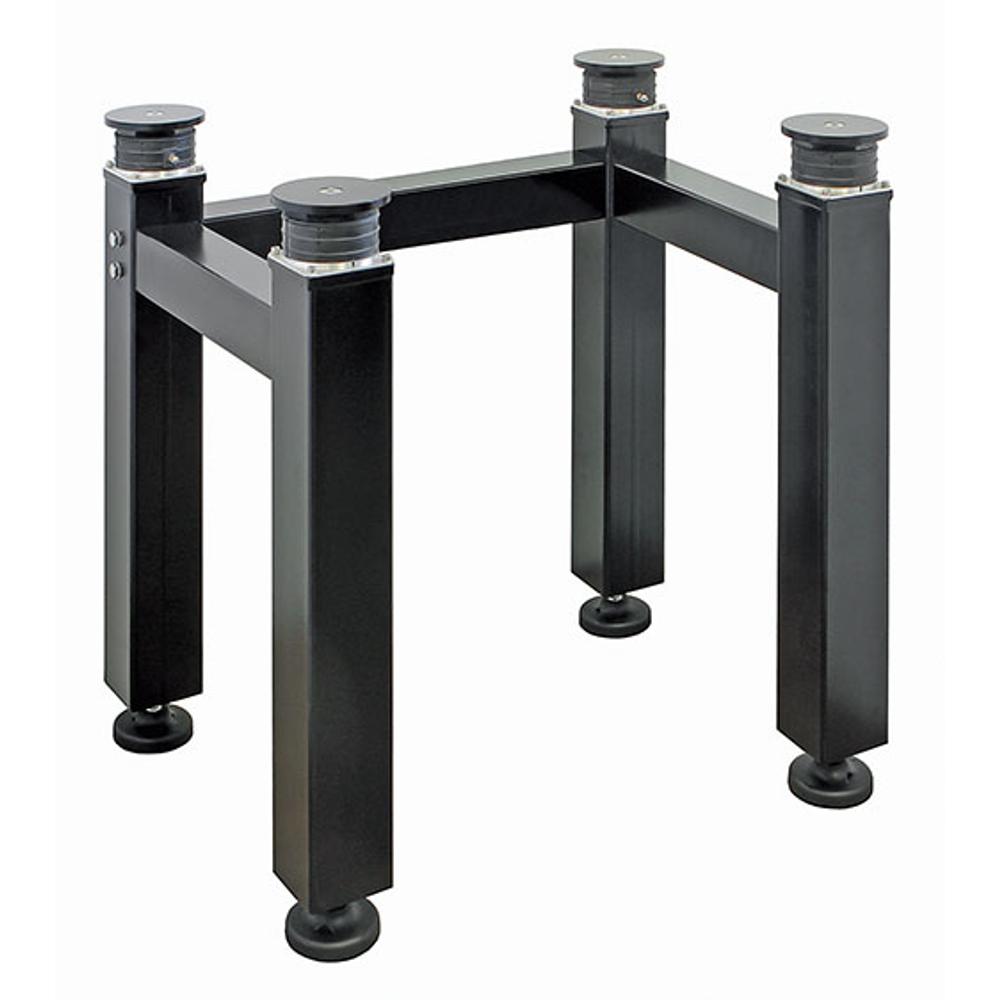

Optical Table Supports are primarily designed for support of the Honeycomb Tabletops 720-740. Table Supports are produced from steel tubes of 100 mm square section, in decorative black coating, and contain two "Π" type supports, bound by a cross-beam.
Optical Table Supports ideally suit other types of optical plates and other equipment, e.g. Laser Shelves, as well. This is possible because the plates are not fastened – they are just laid on top of the supports.
On request we produce table supports of any size, design, and of greater sturdiness.
For heavy tabletops longer than 3500 mm we provide reinforced table support structure by default. Extra cross-bars are added to three sides of the table support frame for increased stability and reliability. Standard length - 2200 mm between support leg centers.
