Round Thin Film Laser Polarizers
Please refer to the new product list that includes all thin film polarizers offered by EKSMA Optics. • Provide the achievement of strictly linear polarization of laser radiaton • Utilize the polarization… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Listed in
Configure & order — pick a catalog variant or configure your own
| SKU | Wavelength · Diameter · Material · Thickness T | |
|---|---|---|
| 420-0114M | 515 nm·12,5 mm·BK7·3 mm |
Out of stock
Ships in: 58–61 calendar days
$126
|
| 420-0118M | 1030 nm·12,5 mm·BK7·3 mm |
Out of stock
Ships in: 58–61 calendar days
$134
|
| 420-0125M | 633 nm·12,5 mm·BK7·3 mm |
Out of stock
Ships in: 58–61 calendar days
$126
|
| 420-0126M | 800 nm·12,5 mm·BK7·3 mm |
Out of stock
Ships in: 58–61 calendar days
$126
|
| 420-0127M | 775 nm·12,5 mm·BK7·3 mm |
Out of stock
Ships in: 58–61 calendar days
$126
|
| 420-0136M | 780-820 nm·12,5 mm·BK7·3 mm |
Out of stock
Ships in: 58–61 calendar days
$186
|
| 420-0138M | 1010-1050 nm·12,5 mm·BK7·3 mm |
Out of stock
Ships in: 58–61 calendar days
$186
|
| 420-0244M | 515 nm·25,0 mm·BK7·3 mm |
Out of stock
Ships in: 58–61 calendar days
$149
|
| 420-0248M | 1030 nm·25,0 mm·BK7·3 mm |
Out of stock
Ships in: 58–61 calendar days
$180
|
| 420-0255M | 633 nm·25,0 mm·BK7·3 mm |
Out of stock
Ships in: 58–61 calendar days
$149
|
| 420-0256M | 800 nm·25,0 mm·BK7·3 mm |
Out of stock
Ships in: 58–61 calendar days
$149
|
| 420-0257M | 775 nm·25,0 mm·BK7·3 mm |
Out of stock
Ships in: 58–61 calendar days
$149
|
| 420-0266M | 780-820 nm·25,0 mm·BK7·3 mm |
Out of stock
Ships in: 58–61 calendar days
$220
|
| 420-0268M | 1010-1050 nm·25,0 mm·BK7·3 mm |
Out of stock
Ships in: 58–61 calendar days
$220
|
| 420-0505M | 633 nm·50,0 mm·BK7·6 mm |
Out of stock
Ships in: 58–61 calendar days
$240
|
| 420-0506M | 800 nm·50,0 mm·BK7·6 mm |
Out of stock
Ships in: 58–61 calendar days
$250
|
| 420-0507M | 775 nm·50,0 mm·BK7·6 mm |
Out of stock
Ships in: 58–61 calendar days
$250
|
| 420-0514M | 515 nm·50,0 mm·BK7·6 mm |
Out of stock
Ships in: 58–61 calendar days
$240
|
| 420-0518M | 1030 nm·50,0 mm·BK7·6 mm |
Out of stock
Ships in: 58–61 calendar days
$296
|
| 420-0526M | 780-820 nm·50,0 mm·BK7·6 mm |
Out of stock
Ships in: 58–61 calendar days
$359
|
| 420-0528M | 1010-1050 nm·50,0 mm·BK7·6 mm |
Out of stock
Ships in: 58–61 calendar days
$389
|
| 420-1110M | 266 nm·12,5 mm·UV FS·3 mm |
Out of stock
Ships in: 58–61 calendar days
$209
|
| 420-1112M | 343 nm·12,5 mm·UV FS·3 mm |
Out of stock
Ships in: 58–61 calendar days
$191
|
| 420-1114M | 515 nm·12,5 mm·UV FS·3 mm |
Out of stock
Ships in: 58–61 calendar days
$153
|
| 420-1118M | 1030 nm·12,5 mm·UV FS·3 mm |
Out of stock
Ships in: 58–61 calendar days
$169
|
| 420-1123M | 400 nm·12,5 mm·UV FS·3 mm |
Out of stock
Ships in: 58–61 calendar days
$153
|
| 420-1126M | 800 nm·12,5 mm·UV FS·3 mm |
Out of stock
Ships in: 58–61 calendar days
$153
|
| 420-1136M | 780-820 nm·12,5 mm·UV FS·3 mm |
Out of stock
Ships in: 58–61 calendar days
$228
|
| 420-1138M | 1010-1050 nm·12,5 mm·UV FS·3 mm |
Out of stock
Ships in: 58–61 calendar days
$228
|
| 420-1240M | 266 nm·25,0 mm·UV FS·3 mm |
Out of stock
Ships in: 58–61 calendar days
$233
|
| 420-1242M | 343 nm·25,0 mm·UV FS·3 mm |
Out of stock
Ships in: 58–61 calendar days
$212
|
| 420-1244M | 515 nm·25,0 mm·UV FS·3 mm |
Out of stock
Ships in: 58–61 calendar days
$179
|
| 420-1248M | 1030 nm·25,0 mm·UV FS·3 mm |
Out of stock
Ships in: 58–61 calendar days
$209
|
| 420-1253M | 400 nm·25,0 mm·UV FS·3 mm |
Out of stock
Ships in: 58–61 calendar days
$179
|
| 420-1256M | 800 nm·25,0 mm·UV FS·3 mm |
Out of stock
Ships in: 58–61 calendar days
$179
|
| 420-1266M | 780-820 nm·25,0 mm·UV FS·3 mm |
Out of stock
Ships in: 58–61 calendar days
$269
|
| 420-1268M | 1010-1050 nm·25,0 mm·UV FS·3 mm |
Out of stock
Ships in: 58–61 calendar days
$269
|
| 420-1503M | 400 nm·50,0 mm·UV FS·6 mm |
Out of stock
Ships in: 58–61 calendar days
$343
|
| 420-1506M | 800 nm·50,0 mm·UV FS·6 mm |
Out of stock
Ships in: 58–61 calendar days
$354
|
| 420-1510M | 266 nm·50,0 mm·UV FS·6 mm |
Out of stock
Ships in: 58–61 calendar days
$416
|
| 420-1512M | 343 nm·50,0 mm·UV FS·6 mm |
Out of stock
Ships in: 58–61 calendar days
$378
|
| 420-1514M | 515 nm·50,0 mm·UV FS·6 mm |
Out of stock
Ships in: 58–61 calendar days
$343
|
| 420-1518M | 1030 nm·50,0 mm·UV FS·6 mm |
Out of stock
Ships in: 58–61 calendar days
$366
|
| 420-1526M | 780-820 nm·50,0 mm·UV FS·6 mm |
Out of stock
Ships in: 58–61 calendar days
$469
|
| 420-1528M | 1010-1050 nm·50,0 mm·UV FS·6 mm |
Out of stock
Ships in: 58–61 calendar days
$469
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
Specifications
| Material | BK7, UV FS |
| Surface quality | 20-10 scratch & dig (MIL-PRF-13830B) |
| Surface flatness | λ/10 @ 633 nm |
| Parallelism | < 30 arcsec |
| Clear aperture | > 90% |
| Angle of incidence | 56°±2° |
| Diameter tolerance | +0.0 -0.12 mm |
| Thickness tolerance | ±0.2 mm |
| Transmission efficiency | Tp > 95% |
| Extinction ratio Tp/Ts | > 200:1 (for standard, HT and UHT series) >1000:1 (for HE series) |
| Laser damage threshold | 10 J/cm2, 10 nsec pulse at 1064 nm typical |
Description
Please refer to the new product list that includes all thin film polarizers offered by EKSMA Optics.
- Provide the achievement of strictly linear polarization of laser radiaton
- Utilize the polarization wich occurs on reflection from a plane surface
- Rs/Tp:>99.5/95.0% for standard thin film polarizers
- Rs/Tp:>99.5/99.0% for high transmittance thin film laser polarizers
- Ts<0.2%, Rp<0.2% for ultra high transmission thin film polarizers
- Tp>98%, Ts<0.1% for thin film polarizers with high extinction ratio
- High damage threshold reaching 10 J/cm2
- Extinction ratio 200:1 (for standard, high and ultra high transmission thin film polarizers), 1000:1 (for thin film polarizers with high extinction ratio)

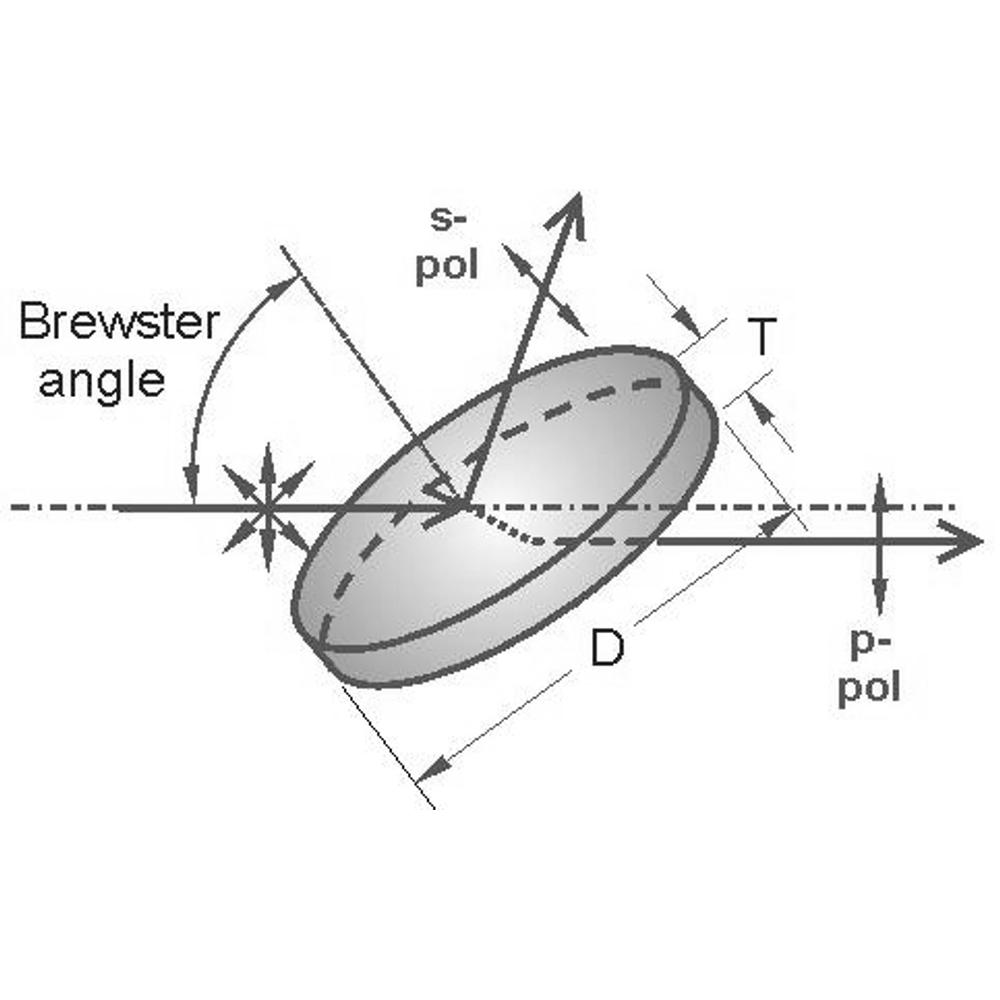

Thin Film Polarizers separate the s- and p-polarization components. They are designed for use in high energy lasers. Due to high damage threshold, reaching 10 J/cm2 @ 1064 nm 8 ns, Thin Film Polarizers are used as an alternative to Glan Laser Polarizing Prisms or Cube Polarizing Beamsplitters.
Typical applications are intracavity Q-switch hold-off polarizer or extracavity attenuator for Nd:YAG lasers.
Thin Film Polarizers can be used at an > 40° angle of incidence, but polarization is most efficient and appears in a broad wavelength range at 56° AOI (Brewster angle). Typical polarization ratio Tp/Ts is 200:1.
Standard size is up to Ø50 mm (2”), while max. available dimensions are 100×200 mm. For optimal transmission a Thin Film Polarizer should be mounted in an appropriate holder for angular adjustment. For Rectangular Thin Film Polarizers, visit here.
