Rotation Stage of Big Platform 860-0160
• 200 mm platform • 360° rotation • 10° fine adjustment • Ø 50.8 mm (2") clear aperture The Rotation Stage of Big Platform 860-0160 is used to manually rotate large optical components through continuous 360° with… Read more →
Listed in
Order
| SKU | Spec | |
|---|---|---|
| 860-0160 |
Out of stock
$659
|
Specifications
| Coarse rotation range | 360° |
| Fine rotation range | 10° |
| Reading accuracy | 0.5 arcmin |
| Sensitivity | 0.1 arcmin |
| Wobble | 1 arcmin |
| Horizontal load capacity | 15 kg |
| Rotation Stage of Big Platform - Solidworks file | |
| Rotation Stage of Big Platform - DWG file | |
| Rotation Stage of Big Platform - STEP file |
Classification
| Type | translation|rotation |
Description
- 200 mm platform
- 360° rotation
- 10° fine adjustment
- Ø 50.8 mm (2") clear aperture
The Rotation Stage of Big Platform 860-0160 is used to manually rotate large optical components through continuous 360° with accuracy of 1°, and to adjust them finely within 10° by a micrometer, with accuracy of 0.5 arcmin.

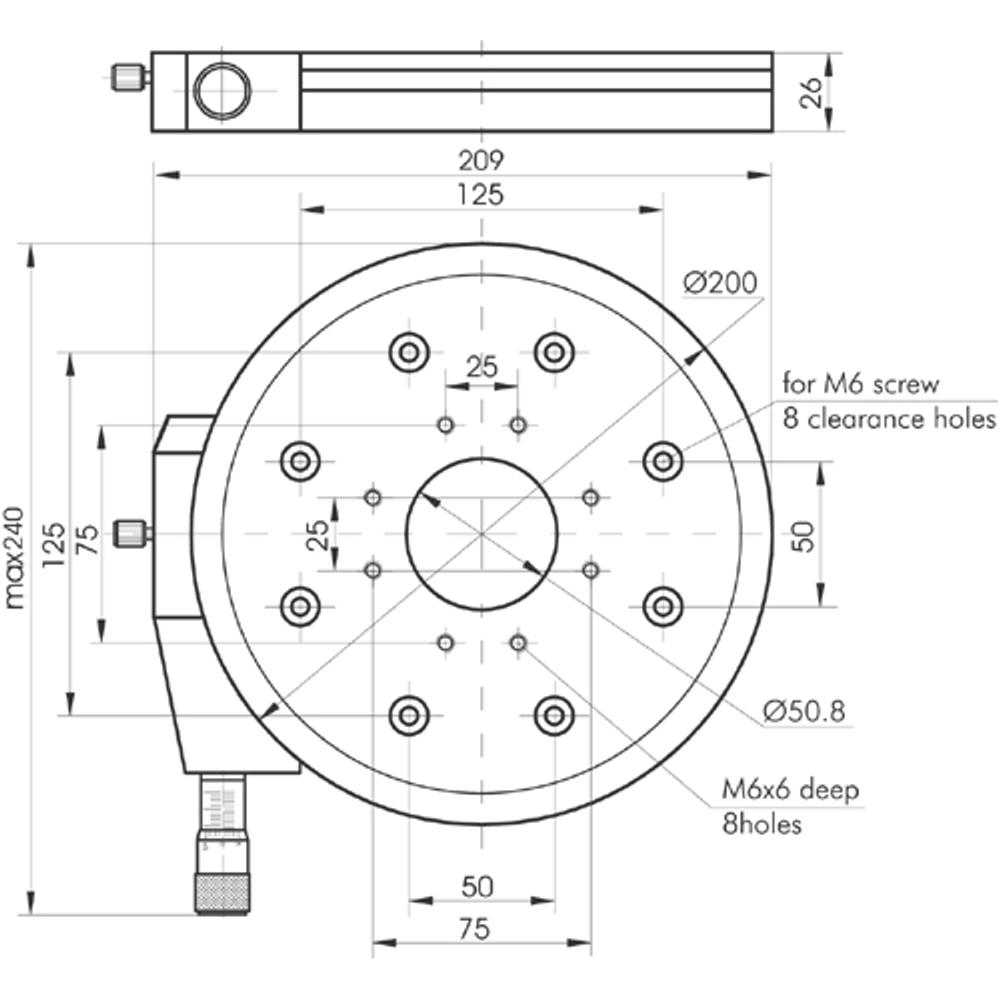

The stage has Ø50.8 mm clear aperture. The platform has a pattern of M6 mounting holes for components.
