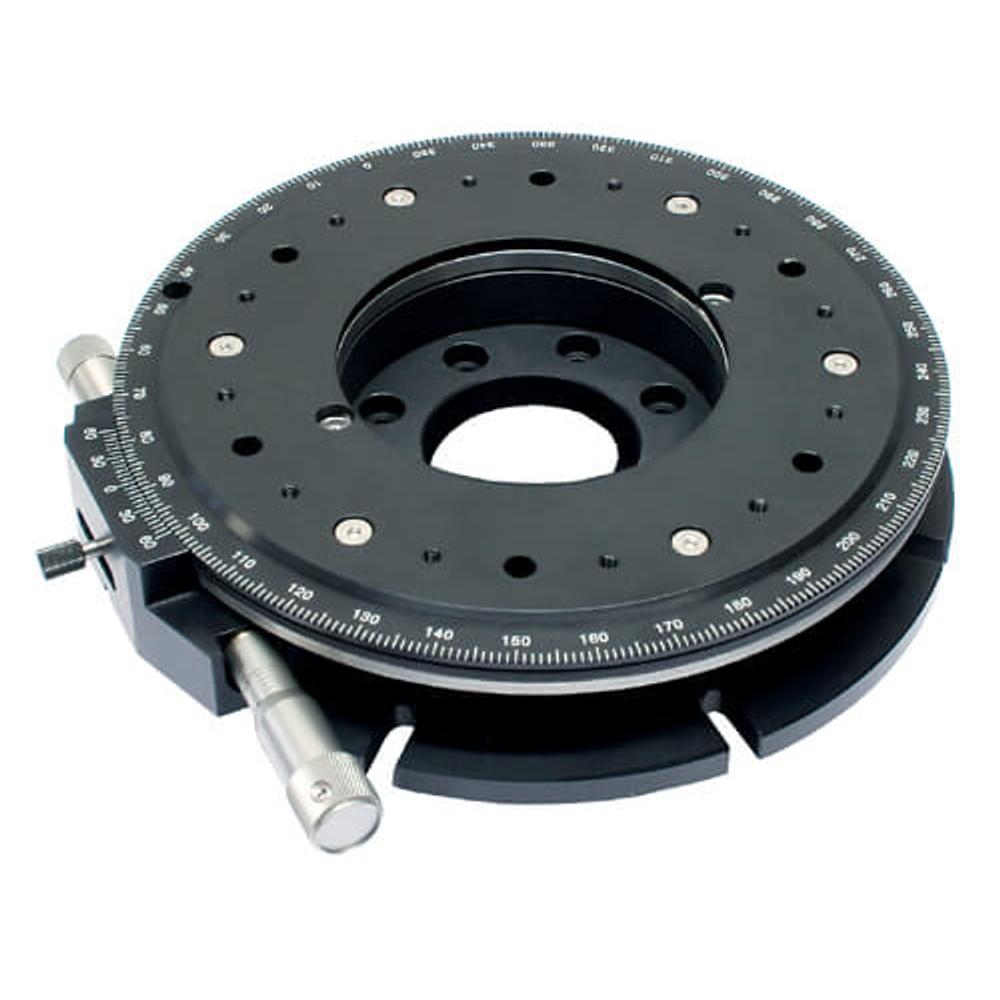

Rotary Stage 860-0165
• Ø 190 mm platform • Ø 88.9 mm clear aperture • 360° rotation • 10° Fine adjustment • Available for vacum (860-0165V) Rotary stage of Big Platform 860-0165 is used to rotate manually large optical and other components… Read more →
Listed in
Order
| SKU | Description | |
|---|---|---|
| 860-0165 | black anodized rotary stage |
Out of stock
$1,043
|
| 860-0165E | black anodized rotary stage inch version |
Out of stock
$1,055
|
| 860-0165EV | vacuum compatible rotary stage inch version |
Out of stock
—
|
| 860-0165V | vacuum compatible rotary stage |
Out of stock
—
|
Specifications
| Coarse rotation range | 360° |
| Fine rotation range | 10° |
| Reading accuracy | 0.5 arcmin |
| Sensitivity | 0.1 arcmin |
| Wobble | 1 arcmin |
| Horizontal load capacity | 60 kg |
| Material | Aluminium |
| Finish | Black Anodized |
Classification
| Type | translation|rotation |
Description
- Ø 190 mm platform
- Ø 88.9 mm clear aperture
- 360° rotation
- 10° Fine adjustment
- Available for vacum (860-0165V)
Rotary stage of Big Platform 860-0165 is used to rotate manually large optical and other components through continuous 360° with accuracy of 1°, and finely to adjust them within 10° by a micrometer, with accuracy of 0.5 arcmin.
The platform of the stage has a pattern of M6 and M4 mounting holes for components.
