Pockels Cell Drivers For Up to 6 MHz Repetition Rate (≤6 MHz, ≤3.1 kV)
2DP/DPB3 series Pockels cell drivers can operate with highest possible repetition rates among all the Pockels cells drivers offered by Eksma Optics. These drivers can be used for a single pulse selection in the pulse… Read more →
Listed in
Configure & order — pick a catalog variant or configure your own
MAX. HV OPERATING VOLTAGE
Any
MAX. HV REPETITION RATE
Any
or
12
catalog variants — refine the spec to narrow it down.
| SKU | MAX. HV OPERATING VOLTAGE · MAX. HV REPETITION RATE | |
|---|---|---|
| 2DP-1000-2.4-Al | 2.4 kV·1 MHz |
Out of stock
$6,222
|
| 2DP-2000-1.6-Al | 1.6 kV·2 MHz |
Out of stock
$5,976
|
| 2DPB2-1000-2.5-Al | 2.5 kV·1 MHz |
Out of stock
$5,076
|
| 2DPB2-2000-1.5-Al | 1.5 kV·2 MHz |
Out of stock
—
|
| 2DPB2-2000-1.8-Al | 1.8 kV·2 MHz |
Out of stock
—
|
| 2DPB2-300-3.4 | 3.4 kV·300 kHz |
Out of stock
$4,476
|
| 2DPB2-500-3.4-Al | 3.4 kV·500 kHz |
2 in stock
Ships in: 2–5 calendar days
$4,734
|
| 2DPB3-4000-1.7-Al | 1.7 kV·4 MHz |
Out of stock
$6,636
|
| 2DPB3-6000-1.3-Al | 1.3 kV·6 MHz |
Out of stock
$6,762
|
| DPB3-2000-3.4-Al | 3.4 kV·2 MHz |
Out of stock
$6,504
|
| DPB3-2500-3.1-Al | 3.1 kV·2.5 MHz |
Out of stock
$6,312
|
| DPB3-3000-2.6-Al | 2.6 kv·3 MHz |
Out of stock
$6,312
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| 2DP-1000-2.4-Al | 2DP-2000-1.6-Al | DPB3-2500-3.1-Al | DPB3-3000-2.6-Al | |
|---|---|---|---|---|
| Maximal HV operating voltage | 2.4 kV | 1.6 kV | 3.1 kV | 2.6 kV |
| Maximal HV repetition rate | 1 MHz | 2 MHz | 2.5 MHz | 3 MHz |
| Pulse duration | 0 - 5000 ns | 0 - 5000 ns | 100 - 5000 ns | 100 - 5000 ns |
| HV pulse rise time, typical | <6.5 ns | <6 ns | <10 ns | <8.5 ns |
| HV pulse fall time, typical | <6.5 ns | <6 ns | <10 ns | <8.5 ns |
| Output polarity | Positive | Positive | Bipolar | Bipolar |
| HV power consumption | <180 W | <130 W | <360 W | <325 W |
| 24 V power consumption | <14 W | <18 W | <10 W | <10 W |
| Cooling | Water | Water | Water | Water |
| 2DPB3-4000-1.7-Al | 2DPB3-6000-1.3-Al | |
|---|---|---|
| Maximal HV operating voltage | 1.7 kV | 1.3 kV |
| Maximal HV repetition rate | 4 MHz | 6 MHz |
| Pulse duration | 0 - 5000 ns | 0 - 5000 ns |
| HV pulse rise time, typical | <10.5 ns | <9 ns |
| HV pulse fall time, typical | <10.5 ns | <9 ns |
| Output polarity | Positive | Positive |
| HV power consumption | <360 W | <350 W |
| 24 V power consumption | <6 W | <10 W |
| Cooling | Water | Water |
Description

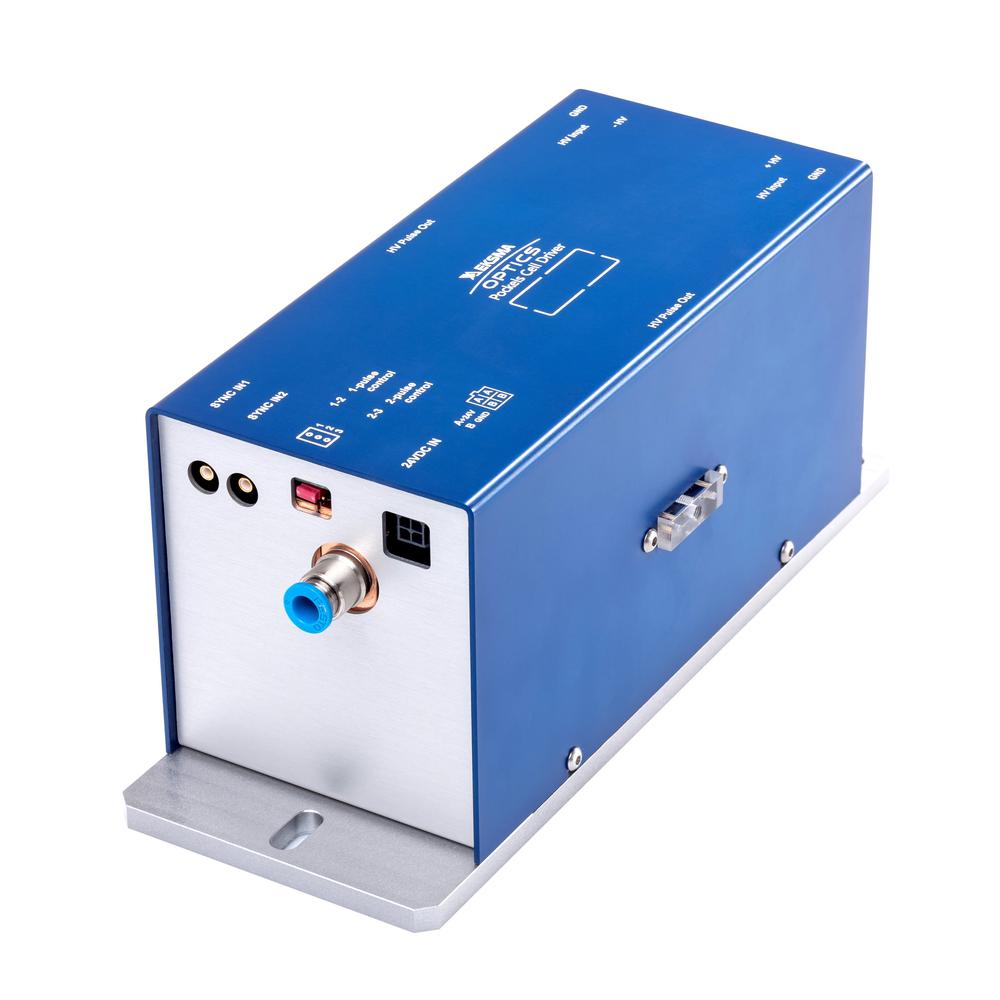

2DP/DPB3 series Pockels cell drivers can operate with highest possible repetition rates among all the Pockels cells drivers offered by Eksma Optics. These drivers can be used for a single pulse selection in the pulse picker applications for high repetition rate lasers.
Features:
- HV pulse amplitude up to 3.1 kV
- Repetition rate up to 6 MHz
- HV pulse duration down to <1 ns
- HV pulse duration extension using pulse regeneration technique
Downloads
PDF
DPB3_series_Pockels_cell_driver_manual.pdf
PDF · 1.27 MB
PDF
EKSMA_Optics_High_Repetition_Rate_Pockels_Cell_Drivers-2DP-DPB3.pdf
PDF · 143 KB
PDF
2DP_series_Pockels_cell_driver_manual.pdf
PDF · 1.06 MB
PDF
2DPB3_series_Pockels_cell_driver_manual.pdf
PDF · 1.23 MB
PDF
2DPB2_series_Pockels_cell_driver_manual.pdf
PDF · 654 KB
