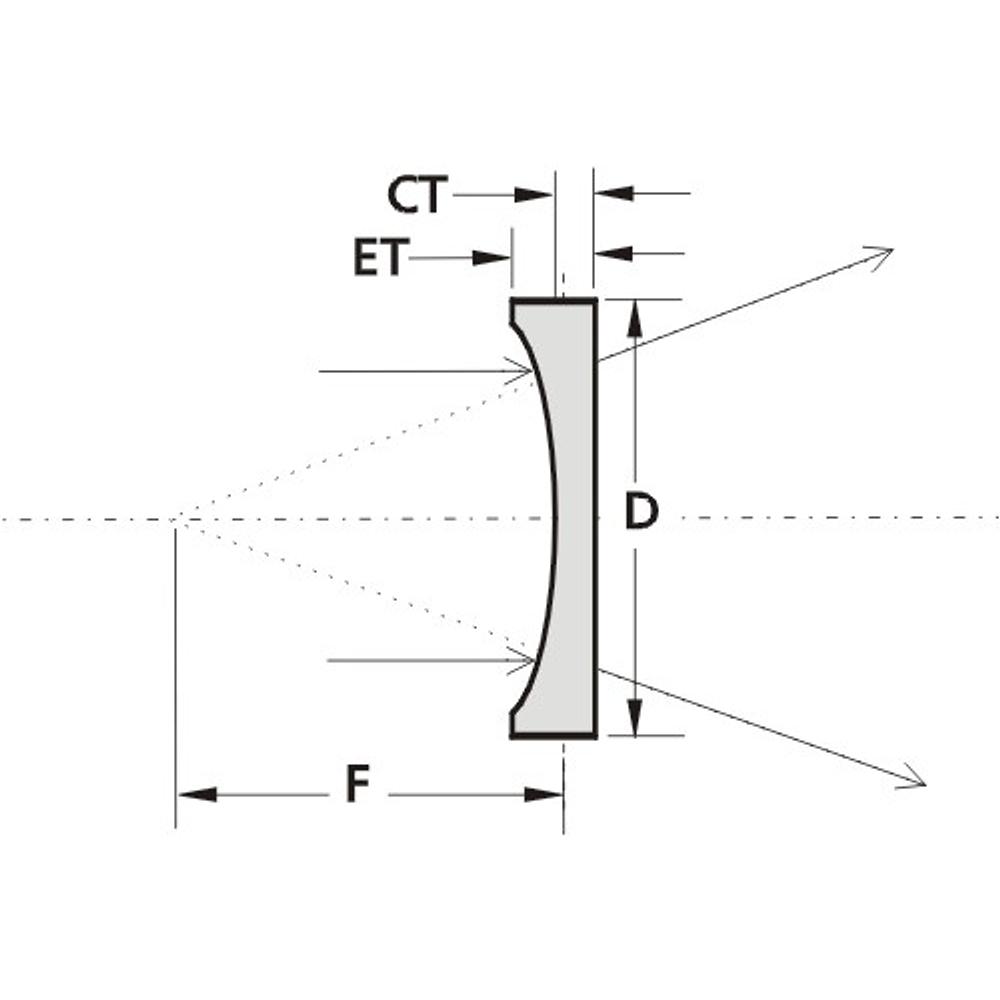

Plano-Concave Lenses
• Have negative focal lengths • Diverge collimated incident light • Forms only virtual images which are seen through the lens • Reduce spherical aberration, coma and distortion at negative-infinite or near-infinite… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Configure & order — pick a catalog variant or configure your own
Product
Diameter
12.7 mm - 50.8 mm · 4 values
Any
mm
mm
Center Thickness
1.2 mm - 5.8 mm · 33 values
Any
mm
mm
Focal Length
-5000 mm - -25 mm · 26 values
Any
mm
mm
Focal Length Wavelength
355 nm - 3000 nm · 3 values
Any
nm
nm
Surface 1
Power and Irregularity, fringes @633 nm
Any
Surface 1, Wavelength 1
Coating
Any
Wavelength
210 nm - 1100 nm · 10 values
Any
nm
nm
Reflectivity, %
0 % - 2 % · 3 values
Any
%
%
127
catalog variants — refine the spec to narrow it down.
| SKU | Diameter | Center Thickness | Focal Length | Focal Length Wavelength | Power and Irregularity, fringes @633 nm | Coating | Wavelength | Reflectivity, % | |
|---|---|---|---|---|---|---|---|---|---|
| 112-0105E | 12.7 mm | 1.9 mm | -25 mm | 546 nm | -(0.25) | Uncoated | — | — |
24 in stock
Ships in: 2–5 calendar days
$22
|
| 112-0109E | 12.7 mm | 2.7 mm | -50 mm | 546 nm | -(0.25) | Uncoated | — | — |
23 in stock
Ships in: 2–5 calendar days
$22
|
| 112-0112E | 12.7 mm | 2.4 mm | -60 mm | 546 nm | -(0.25) | Uncoated | — | — |
Out of stock
Ships in: 62–65 calendar days
$22
|
| 112-0115E | 12.7 mm | 2.9 mm | -75 mm | 546 nm | -(0.25) | Uncoated | — | — |
24 in stock
Ships in: 2–5 calendar days
$22
|
| 112-0117E | 12.7 mm | 3 mm | -100 mm | 546 nm | -(0.25) | Uncoated | — | — |
11 in stock
Ships in: 2–5 calendar days
$22
|
| 112-0119E | 12.7 mm | 3.1 mm | -125 mm | 546 nm | -(0.25) | Uncoated | — | — |
5 in stock
Ships in: 2–5 calendar days
$22
|
| 112-0121E | 12.7 mm | 3.2 mm | -150 mm | 546 nm | -(0.25) | Uncoated | — | — |
21 in stock
Ships in: 2–5 calendar days
$22
|
| 112-0123E | 12.7 mm | 3.3 mm | -200 mm | 546 nm | -(0.25) | Uncoated | — | — |
70 in stock
Ships in: 2–5 calendar days
$22
|
| 112-0125E | 12.7 mm | 3.3 mm | -250 mm | 546 nm | -(0.25) | Uncoated | — | — |
Out of stock
Ships in: 62–65 calendar days
$22
|
| 112-0127E | 12.7 mm | 2.9 mm | -300 mm | 546 nm | -(0.25) | Uncoated | — | — |
24 in stock
Ships in: 2–5 calendar days
$22
|
| 112-0205E | 25.4 mm | 1.4 mm | -30 mm | 546 nm | -(0.25) | Uncoated | — | — |
58 in stock
Ships in: 2–5 calendar days
$24
|
| 112-0207E | 25.4 mm | 1.7 mm | -40 mm | 546 nm | -(0.25) | Uncoated | — | — |
51 in stock
Ships in: 2–5 calendar days
$24
|
| 112-0209E | 25.4 mm | 2.7 mm | -50 mm | 546 nm | -(0.25) | Uncoated | — | — |
13 in stock
Ships in: 2–5 calendar days
$24
|
| 112-0215E | 25.4 mm | 2.9 mm | -75 mm | 546 nm | -(0.25) | Uncoated | — | — |
9 in stock
Ships in: 2–5 calendar days
$23
|
| 112-0219E | 25.4 mm | 3.1 mm | -100 mm | 546 nm | -(0.25) | Uncoated | — | — |
25 in stock
Ships in: 2–5 calendar days
$23
|
| 112-0223E | 25.4 mm | 3 mm | -125 mm | 546 nm | -(0.25) | Uncoated | — | — |
8 in stock
Ships in: 2–5 calendar days
$23
|
| 112-0227E | 25.4 mm | 2.7 mm | -150 mm | 546 nm | -(0.25) | Uncoated | — | — |
15 in stock
Ships in: 2–5 calendar days
$23
|
| 112-0231E | 25.4 mm | 3 mm | -200 mm | 546 nm | -(0.25) | Uncoated | — | — |
17 in stock
Ships in: 2–5 calendar days
$23
|
| 112-0235E | 25.4 mm | 3.1 mm | -250 mm | 546 nm | -(0.25) | Uncoated | — | — |
8 in stock
Ships in: 2–5 calendar days
$23
|
| 112-0239E | 25.4 mm | 3.1 mm | -300 mm | 546 nm | -(0.25) | Uncoated | — | — |
1 in stock
Ships in: 2–5 calendar days
$23
|
| 112-0243E | 25.4 mm | 3.6 mm | -400 mm | 546 nm | -(0.25) | Uncoated | — | — |
26 in stock
Ships in: 2–5 calendar days
$23
|
| 112-0245E | 25.4 mm | 3.7 mm | -450 mm | 546 nm | -(0.25) | Uncoated | — | — |
17 in stock
Ships in: 2–5 calendar days
$23
|
| 112-0247E | 25.4 mm | 3.7 mm | -500 mm | 546 nm | -(0.25) | Uncoated | — | — |
1 in stock
Ships in: 2–5 calendar days
$23
|
| 112-0250E | 25.4 mm | 3.8 mm | -650 mm | 546 nm | -(0.25) | Uncoated | — | — |
21 in stock
Ships in: 2–5 calendar days
$23
|
| 112-0252E | 25.4 mm | 3.8 mm | -750 mm | 546 nm | -(0.25) | Uncoated | — | — |
15 in stock
Ships in: 2–5 calendar days
$23
|
| 112-0259E | 25.4 mm | 3.8 mm | -1000 mm | 546 nm | -(0.25) | Uncoated | — | — |
9 in stock
Ships in: 2–5 calendar days
$23
|
| 112-0260E | 25.4 mm | 3.8 mm | -1500 mm | 546 nm | -(0.25) | Uncoated | — | — |
Out of stock
Ships in: 62–65 calendar days
$23
|
| 112-0261E | 25.4 mm | 3.9 mm | -2000 mm | 546 nm | -(0.25) | Uncoated | — | — |
33 in stock
Ships in: 2–5 calendar days
$23
|
| 112-0263E | 25.4 mm | 3.9 mm | -3000 mm | 546 nm | -(0.25) | Uncoated | — | — |
18 in stock
Ships in: 2–5 calendar days
$23
|
| 112-0264E | 25.4 mm | 4 mm | -4000 mm | 546 nm | -(0.25) | Uncoated | — | — |
26 in stock
Ships in: 2–5 calendar days
$23
|
| 112-0265E | 25.4 mm | 4 mm | -5000 mm | 546 nm | -(0.25) | Uncoated | — | — |
21 in stock
Ships in: 2–5 calendar days
$23
|
| 112-0409E | 38.1 mm | 2 mm | -100 mm | 546 nm | -(0.25) | Uncoated | — | — |
Out of stock
Ships in: 62–65 calendar days
$42
|
| 112-0411E | 38.1 mm | 3.3 mm | -150 mm | 546 nm | -(0.25) | Uncoated | — | — |
Out of stock
Ships in: 62–65 calendar days
$42
|
| 112-0415E | 38.1 mm | 4.2 mm | -200 mm | 546 nm | -(0.25) | Uncoated | — | — |
3 in stock
Ships in: 2–5 calendar days
$42
|
| 112-0419E | 38.1 mm | 4.8 mm | -300 mm | 546 nm | -(0.25) | Uncoated | — | — |
Out of stock
Ships in: 62–65 calendar days
$42
|
| 112-0502E | 50.8 mm | 3 mm | -75 mm | 546 nm | -(0.25) | Uncoated | — | — |
Out of stock
Ships in: 62–65 calendar days
$66
|
| 112-0505E | 50.8 mm | 3.4 mm | -100 mm | 546 nm | -(0.25) | Uncoated | — | — |
Out of stock
Ships in: 62–65 calendar days
$59
|
| 112-0506E | 50.8 mm | 4.8 mm | -125 mm | 546 nm | -(0.25) | Uncoated | — | — |
4 in stock
Ships in: 2–5 calendar days
$58
|
| 112-0507E | 50.8 mm | 4.7 mm | -150 mm | 546 nm | -(0.25) | Uncoated | — | — |
3 in stock
Ships in: 2–5 calendar days
$56
|
| 112-0509E | 50.8 mm | 4.8 mm | -200 mm | 546 nm | -(0.25) | Uncoated | — | — |
3 in stock
Ships in: 2–5 calendar days
$54
|
| 112-0511E | 50.8 mm | 5 mm | -250 mm | 546 nm | -(0.25) | Uncoated | — | — |
19 in stock
Ships in: 2–5 calendar days
$54
|
| 112-1105E | 12.7 mm | 1.2 mm | -25 mm | 355 nm | -(0.25) | Uncoated | — | — |
67 in stock
Ships in: 2–5 calendar days
$57
|
| 112-1105E+AR1064HT | 12.7 mm | 1.3 mm | -25 mm | 355 nm | -(0.25) | AR | 1064 nm - 1064 nm | 0 % - 0.1 % |
10 in stock
Ships in: 2–5 calendar days
$183
|
| 112-1109E | 12.7 mm | 2.1 mm | -50 mm | 355 nm | -(0.25) | Uncoated | — | — |
Out of stock
Ships in: 62–65 calendar days
$57
|
| 112-1109E+AR1030HT | 12.7 mm | 2.1 mm | -50 mm | 355 nm | -(0.25) | AR | 1000 nm - 1060 nm | 0 % - 0.1 % |
Out of stock
Ships in: 58–61 calendar days
$183
|
| 112-1109E+ARD1030HT | 12.7 mm | 2.1 mm | -50 mm | 355 nm | -(0.25) | AR | 515 nm - 515 nm | 0 % - 0.1 % |
2 in stock
Ships in: 2–5 calendar days
$195
|
| 112-1110E | 12.7 mm | 2.3 mm | -60 mm | 355 nm | -(0.25) | Uncoated | — | — |
10 in stock
Ships in: 2–5 calendar days
$57
|
| 112-1111E | 12.7 mm | 2.5 mm | -75 mm | 355 nm | -(0.25) | Uncoated | — | — |
1 in stock
Ships in: 2–5 calendar days
$56
|
| 112-1111E+ARD1030HT | 12.7 mm | 2.4 mm | -75 mm | 355 nm | -(0.25) | AR | 515 nm - 515 nm | 0 % - 0.1 % |
1 in stock
Ships in: 2–5 calendar days
$194
|
| 112-1112E | 12.7 mm | 2.5 mm | -80 mm | 355 nm | -(0.25) | Uncoated | — | — |
14 in stock
Ships in: 2–5 calendar days
$56
|
| 112-1114E | 12.7 mm | 2.5 mm | -90 mm | 355 nm | -(0.25) | Uncoated | — | — |
Out of stock
Ships in: 62–65 calendar days
$56
|
| 112-1115E | 12.7 mm | 2.6 mm | -100 mm | 355 nm | -(0.25) | Uncoated | — | — |
135 in stock
Ships in: 2–5 calendar days
$56
|
| 112-1115E+ARD1030HT | 12.7 mm | 2.6 mm | -100 mm | 355 nm | -(0.25) | AR | 515 nm - 515 nm | 0 % - 0.1 % |
1 in stock
Ships in: 2–5 calendar days
$194
|
| 112-1117E | 12.7 mm | 2.7 mm | -125 mm | 355 nm | -(0.25) | Uncoated | — | — |
13 in stock
Ships in: 2–5 calendar days
$56
|
| 112-1119E | 12.7 mm | 2.7 mm | -150 mm | 355 nm | -(0.25) | Uncoated | — | — |
79 in stock
Ships in: 2–5 calendar days
$56
|
| 112-1121E | 12.7 mm | 2.8 mm | -175 mm | 355 nm | -(0.5) | Uncoated | — | — |
Out of stock
Ships in: 62–65 calendar days
$56
|
| 112-1121E+AR1030HT | 12.7 mm | 2.8 mm | -175 mm | 355 nm | -(0.5) | AR | 1000 nm - 1060 nm | 0 % - 0.1 % |
2 in stock
Ships in: 2–5 calendar days
$182
|
| 112-1123E | 12.7 mm | 2.8 mm | -200 mm | 355 nm | -(0.25) | Uncoated | — | — |
21 in stock
Ships in: 2–5 calendar days
$56
|
| 112-1127E | 12.7 mm | 2.8 mm | -250 mm | 355 nm | -(0.25) | Uncoated | — | — |
10 in stock
Ships in: 2–5 calendar days
$56
|
| 112-1203E | 25.4 mm | 1.6 mm | -30 mm | 355 nm | -(0.25) | Uncoated | — | — |
62 in stock
Ships in: 2–5 calendar days
$90
|
| 112-1205E | 25.4 mm | 1.9 mm | -50 mm | 355 nm | -(0.25) | Uncoated | — | — |
113 in stock
Ships in: 2–5 calendar days
$84
|
| 112-1205E+AR515HT | 25.4 mm | 1.9 mm | -50 mm | 355 nm | -(0.25) | AR | 500 nm - 530 nm | 0 % - 0.1 % |
11 in stock
Ships in: 2–5 calendar days
$210
|
| 112-1205E+ARB300 | 25.4 mm | 1.9 mm | -50 mm | 355 nm | -(0.25) | AR | 210 nm - 400 nm | 0 % - 2 % |
4 in stock
Ships in: 2–5 calendar days
$168
|
| 112-1205E+ARB800HT | 25.4 mm | 1.9 mm | -50 mm | 355 nm | -(0.25) | AR | 700 nm - 900 nm | 0 % - 0.1 % |
2 in stock
Ships in: 2–5 calendar days
$222
|
| 112-1209E | 25.4 mm | 3.1 mm | -75 mm | 355 nm | -(0.25) | Uncoated | — | — |
34 in stock
Ships in: 2–5 calendar days
$84
|
| 112-1211E | 25.4 mm | 3 mm | -100 mm | 355 nm | -(0.25) | Uncoated | — | — |
53 in stock
Ships in: 2–5 calendar days
$84
|
| 112-1211E+AR1030HT | 25.4 mm | 3 mm | -100 mm | 355 nm | -(0.25) | AR | 1000 nm - 1060 nm | 0 % - 0.1 % |
Out of stock
Ships in: 62–65 calendar days
$210
|
| 112-1211E+ARB1000HT | 25.4 mm | 3 mm | -100 mm | 355 nm | -(0.25) | AR | 900 nm - 1100 nm | 0 % - 0.1 % |
1 in stock
Ships in: 2–5 calendar days
$222
|
| 112-1211E+ARD1030HT | 25.4 mm | 3 mm | -100 mm | 355 nm | -(0.25) | AR | 515 nm - 515 nm | 0 % - 0.1 % |
Out of stock
Ships in: 58–61 calendar days
$222
|
| 112-1215E | 25.4 mm | 3 mm | -125 mm | 355 nm | -(0.25) | Uncoated | — | — |
22 in stock
Ships in: 2–5 calendar days
$84
|
| 112-1215E+ARD1064HT | 25.4 mm | 3 mm | -125 mm | 355 nm | -(0.25) | AR | 532 nm - 532 nm | 0 % - 0.1 % |
Out of stock
Ships in: 62–65 calendar days
$222
|
| 112-1217E | 25.4 mm | 3.1 mm | -150 mm | 355 nm | -(0.25) | Uncoated | — | — |
30 in stock
Ships in: 2–5 calendar days
$78
|
| 112-1217E+AR1030HT | 25.4 mm | 3.1 mm | -150 mm | 355 nm | -(0.25) | AR | 1000 nm - 1060 nm | 0 % - 0.1 % |
Out of stock
Ships in: 62–65 calendar days
$204
|
| 112-1217E+ARB800HT | 25.4 mm | 3.1 mm | -150 mm | 355 nm | -(0.25) | AR | 700 nm - 900 nm | 0 % - 0.1 % |
Out of stock
Ships in: 62–65 calendar days
$216
|
| 112-1217E+ARD1030HT | 25.4 mm | 3.1 mm | -150 mm | 355 nm | -(0.25) | AR | 515 nm - 515 nm | 0 % - 0.1 % |
Out of stock
Ships in: 58–61 calendar days
$216
|
| 112-1219E | 25.4 mm | 3.1 mm | -200 mm | 355 nm | -(0.25) | Uncoated | — | — |
19 in stock
Ships in: 2–5 calendar days
$78
|
| 112-1219E+AR800HT | 25.4 mm | 3.1 mm | -200 mm | 355 nm | -(0.25) | AR | 760 nm - 840 nm | 0 % - 0.1 % |
Out of stock
Ships in: 58–61 calendar days
$216
|
| 112-1219E+ARB825 | 25.4 mm | 3.1 mm | -200 mm | 355 nm | -(0.25) | AR | 650 nm - 1100 nm | 0 % - 0.7 % |
Out of stock
Ships in: 58–61 calendar days
$152
|
| 112-1219E+ARD1030HT | 25.4 mm | 3.1 mm | -200 mm | 355 nm | -(0.25) | AR | 515 nm - 515 nm | 0 % - 0.1 % |
Out of stock
Ships in: 62–65 calendar days
$216
|
| 112-1221E | 25.4 mm | 3.3 mm | -250 mm | 355 nm | -(0.25) | Uncoated | — | — |
24 in stock
Ships in: 2–5 calendar days
$78
|
| 112-1221E+AR800HT | 25.4 mm | 3.3 mm | -250 mm | 355 nm | -(0.25) | AR | 760 nm - 840 nm | 0 % - 0.1 % |
Out of stock
Ships in: 62–65 calendar days
$204
|
| 112-1221E+ARB825 | 25.4 mm | 3.3 mm | -250 mm | 355 nm | -(0.25) | AR | 650 nm - 1100 nm | 0 % - 0.7 % |
Out of stock
Ships in: 58–61 calendar days
$152
|
| 112-1223E | 25.4 mm | 3.4 mm | -300 mm | 355 nm | -(0.25) | Uncoated | — | — |
16 in stock
Ships in: 2–5 calendar days
$78
|
| 112-1223E+AR800HT | 25.4 mm | 3.4 mm | -300 mm | 355 nm | -(0.25) | AR | 760 nm - 840 nm | 0 % - 0.1 % |
Out of stock
Ships in: 58–61 calendar days
$204
|
| 112-1227E | 25.4 mm | 3.6 mm | -400 mm | 355 nm | -(0.25) | Uncoated | — | — |
12 in stock
Ships in: 2–5 calendar days
$72
|
| 112-1233E | 25.4 mm | 3.7 mm | -500 mm | 355 nm | -(0.25) | Uncoated | — | — |
15 in stock
Ships in: 2–5 calendar days
$72
|
| 112-1239E | 25.4 mm | 3.8 mm | -750 mm | 355 nm | -(0.25) | Uncoated | — | — |
19 in stock
Ships in: 2–5 calendar days
$72
|
| 112-1245E | 25.4 mm | 3.8 mm | -1000 mm | 355 nm | -(0.25) | Uncoated | — | — |
76 in stock
Ships in: 2–5 calendar days
$72
|
| 112-1250E | 25.4 mm | 3.9 mm | -2000 mm | 546 nm | -(0.25) | Uncoated | — | — |
33 in stock
Ships in: 2–5 calendar days
$72
|
| 112-1255E | 25.4 mm | 2 mm | -5000 mm | 355 nm | -(0.25) | Uncoated | — | — |
18 in stock
Ships in: 2–5 calendar days
$72
|
| 112-1255E+AR800HT | 25.4 mm | 2 mm | -5000 mm | 355 nm | -(0.25) | AR | 760 nm - 840 nm | 0 % - 0.1 % |
Out of stock
Ships in: 58–61 calendar days
$198
|
| 112-1411E | 38.1 mm | 2.4 mm | -100 mm | 355 nm | -(0.25) | Uncoated | — | — |
Out of stock
Ships in: 62–65 calendar days
$132
|
| 112-1415E | 38.1 mm | 3 mm | -150 mm | 355 nm | -(0.25) | Uncoated | — | — |
Out of stock
Ships in: 62–65 calendar days
$132
|
| 112-1419E | 38.1 mm | 3 mm | -200 mm | 355 nm | -(0.25) | Uncoated | — | — |
Out of stock
Ships in: 62–65 calendar days
$132
|
| 112-1427E | 38.1 mm | 4.3 mm | -300 mm | 355 nm | -(0.25) | Uncoated | — | — |
2 in stock
Ships in: 2–5 calendar days
$132
|
| 112-1509E | 50.8 mm | 5 mm | -100 mm | 355 nm | -(0.25) | Uncoated | — | — |
3 in stock
Ships in: 2–5 calendar days
$166
|
| 112-1509E+AR800HT | 50.8 mm | 5 mm | -100 mm | 355 nm | -(0.25) | AR | 760 nm - 840 nm | 0 % - 0.1 % |
1 in stock
Ships in: 2–5 calendar days
$382
|
| 112-1512E | 50.8 mm | 3.2 mm | -150 mm | 355 nm | -(0.25) | Uncoated | — | — |
20 in stock
Ships in: 2–5 calendar days
$166
|
| 112-1512E+AR800HT | 50.8 mm | 3.2 mm | -150 mm | 355 nm | -(0.25) | AR | 760 nm - 840 nm | 0 % - 0.1 % |
2 in stock
Ships in: 2–5 calendar days
$382
|
| 112-1517E | 50.8 mm | 3.1 mm | -250 mm | 355 nm | -(0.25) | Uncoated | — | — |
Out of stock
Ships in: 62–65 calendar days
$166
|
| 112-1517E+AR800HT | 50.8 mm | 3.1 mm | -250 mm | 355 nm | -(0.25) | AR | 760 nm - 840 nm | 0 % - 0.1 % |
Out of stock
Ships in: 58–61 calendar days
$382
|
| 112-1519E | 50.8 mm | 3.5 mm | -300 mm | 355 nm | -(0.25) | Uncoated | — | — |
6 in stock
Ships in: 2–5 calendar days
$166
|
| 112-1519E+AR800HT | 50.8 mm | 3.5 mm | -300 mm | 355 nm | -(0.25) | AR | 760 nm - 840 nm | 0 % - 0.1 % |
Out of stock
Ships in: 58–61 calendar days
$382
|
| 112-1527E | 50.8 mm | 4.7 mm | -500 mm | 355 nm | -(0.25) | Uncoated | — | — |
Out of stock
Ships in: 62–65 calendar days
$166
|
| 112-1540E | 50.8 mm | 5.8 mm | -2000 mm | 355 nm | -(0.25) | Uncoated | — | — |
Out of stock
Ships in: 62–65 calendar days
$166
|
| 112-5105E | 12.7 mm | 1.9 mm | -25 mm | 3000 nm | -(0.5) | Uncoated | — | — |
33 in stock
Ships in: 2–5 calendar days
$84
|
| 112-5109E | 12.7 mm | 2 mm | -50 mm | 3000 nm | -(0.5) | Uncoated | — | — |
121 in stock
Ships in: 2–5 calendar days
$84
|
| 112-5111E | 12.7 mm | 2.4 mm | -75 mm | 3000 nm | -(0.5) | Uncoated | — | — |
3 in stock
Ships in: 2–5 calendar days
$84
|
| 112-5115E | 12.7 mm | 2.5 mm | -100 mm | 3000 nm | -(0.5) | Uncoated | — | — |
Out of stock
Ships in: 62–65 calendar days
$84
|
| 112-5120E | 12.7 mm | 2.7 mm | -150 mm | 3000 nm | -(0.5) | Uncoated | — | — |
10 in stock
Ships in: 2–5 calendar days
$84
|
| 112-5125E | 12.7 mm | 1.8 mm | -200 mm | 3000 nm | -(0.5) | Uncoated | — | — |
4 in stock
Ships in: 2–5 calendar days
$84
|
| 112-5130E | 12.7 mm | 1.8 mm | -250 mm | 3000 nm | -(0.5) | Uncoated | — | — |
8 in stock
Ships in: 2–5 calendar days
$84
|
| 112-5135E | 12.7 mm | 1.9 mm | -500 mm | 3000 nm | -(0.5) | Uncoated | — | — |
7 in stock
Ships in: 2–5 calendar days
$84
|
| 112-5204E | 25.4 mm | 2.5 mm | -40 mm | 3000 nm | -(0.5) | Uncoated | — | — |
Out of stock
Ships in: 62–65 calendar days
$90
|
| 112-5205E | 25.4 mm | 2.7 mm | -50 mm | 3000 nm | -(0.5) | Uncoated | — | — |
17 in stock
Ships in: 2–5 calendar days
$90
|
| 112-5209E | 25.4 mm | 2.8 mm | -75 mm | 3000 nm | -(0.5) | Uncoated | — | — |
19 in stock
Ships in: 2–5 calendar days
$90
|
| 112-5211E | 25.4 mm | 3 mm | -100 mm | 3000 nm | -(0.5) | Uncoated | — | — |
28 in stock
Ships in: 2–5 calendar days
$90
|
| 112-5217E | 25.4 mm | 2.7 mm | -150 mm | 3000 nm | -(0.5) | Uncoated | — | — |
18 in stock
Ships in: 2–5 calendar days
$90
|
| 112-5219E | 25.4 mm | 3 mm | -200 mm | 3000 nm | -(0.5) | Uncoated | — | — |
16 in stock
Ships in: 2–5 calendar days
$90
|
| 112-5223E | 25.4 mm | 3.2 mm | -250 mm | 3000 nm | -(0.5) | Uncoated | — | — |
9 in stock
Ships in: 2–5 calendar days
$90
|
| 112-5225E | 25.4 mm | 3.4 mm | -300 mm | 3000 nm | -(0.5) | Uncoated | — | — |
Out of stock
Ships in: 62–65 calendar days
$90
|
| 112-5228E | 25.4 mm | 3.5 mm | -400 mm | 3000 nm | -(0.5) | Uncoated | — | — |
Out of stock
Ships in: 62–65 calendar days
$90
|
| 112-5230E | 25.4 mm | 2.6 mm | -500 mm | 3000 nm | -(0.5) | Uncoated | — | — |
4 in stock
Ships in: 2–5 calendar days
$90
|
| 112-5235E | 25.4 mm | 2.8 mm | -1000 mm | 3000 nm | -(0.5) | Uncoated | — | — |
6 in stock
Ships in: 2–5 calendar days
$90
|
| 112-5519E | 50.8 mm | 3.6 mm | -200 mm | 3000 nm | -(0.5) | Uncoated | — | — |
9 in stock
Ships in: 2–5 calendar days
$216
|
| 112-5525E | 50.8 mm | 3 mm | -300 mm | 3000 nm | -(0.5) | Uncoated | — | — |
Out of stock
Ships in: 62–65 calendar days
$216
|
| 112-5530E | 50.8 mm | 4 mm | -500 mm | 3000 nm | -(0.5) | Uncoated | — | — |
Out of stock
Ships in: 62–65 calendar days
$216
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Shape Type | Round |
| Diameter Upper Tolerance | 0 mm |
| Diameter Lower Tolerance | -0.12 mm |
| Center Thickness Upper Tolerance | 0.2 mm |
| Center Thickness Lower Tolerance | -0.2 mm |
| Edge Thickness Upper Tolerance | 0.2 mm |
| Edge Thickness Lower Tolerance | -0.2 mm |
| Focal Length tolerance %, +/- | 2 % |
Surface 1
| Surface Shape | Concave |
| Surface quality, grind or polish | Polished |
| Centration, angle | 0 deg 0 min 0 sec - 0 deg 3 min 0 sec |
| Clear Aperture, % | 90 % - 100 % |
Surface 2
| Surface Shape | Plano |
| Surface quality, grind or polish | Polished |
| Clear Aperture, % | 90 % - 100 % |
Description
- Have negative focal lengths
- Diverge collimated incident light
- Forms only virtual images which are seen through the lens
- Reduce spherical aberration, coma and distortion at negative-infinite or near-infinite conjugate ratios
- With the concave surface facing the longest conjugate distance
These lenses are thicker at the edge than in the centre and flat on one side. The plano-concave lenses are used to expand light beams or to increase focal lengths in optical systems. They are often employed for beam expansion of high peak power pulsed lasers. A beam incident on a concave surface will be focused to a point outside the instrument.
Air heating and ionization at the unwanted focal point are possible with attendant mode disruption or material damage. To avoid this problem, the input lens should be reversed so that no concave surface faces a parallel beam.
A variety of anti-reflection coatings is available for these lenses. For appropriate coating please refer to the Coatings section of the Optical Components catalog. We can supply custom cutting, edging, coating or complete fabrication if required.
