Notch Filters
Notch filters, or stop-band filters, are designed to block a specific narrow wavelength range (stop band) and to transmit broad wavelength ranges outside of this band (pass bands). These optical filters feature high… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Configure & order — pick a catalog variant or configure your own
Wavelength 1
| SKU | Product Type | Shape Type | Diameter | Material | Coating E1S1W1 | Coating E1S2W1 | Wavelength | Optical density | |
|---|---|---|---|---|---|---|---|---|---|
| 246-2506-488 | Notch | Round | 25.4 mm | UVFS | HR | AR | 488 nm | 6 OD |
5 in stock
Ships in: 2–5 calendar days
$540
|
| 246-2506-514 | Notch | Round | 25.4 mm | UVFS | HR | AR | 514 nm | 6 OD |
13 in stock
Ships in: 2–5 calendar days
$540
|
| 246-2506-532 | Notch | Round | 25.4 mm | UVFS | HR | AR | 532 nm | 6 OD |
19 in stock
Ships in: 2–5 calendar days
$540
|
| 246-2506-561 | Notch | Round | 25.4 mm | UVFS | HR | AR | 561 nm | 6 OD |
8 in stock
Ships in: 2–5 calendar days
$540
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Notch |
| Shape Type | Round |
| Diameter | 25.4 mm |
| Diameter Upper Tol | 0 mm |
| Diameter Lower Tol | -0.2 mm |
| Thickness | 6 mm |
| Thickness Upper Tol | 0.2 mm |
| Thickness Lower Tol | -0.2 mm |
Element 1
| Material | UVFS |
| Parallelism, angle | 0 - 30 sec |
Element 1, Surface 1, Wavelength 1
| Coating | HR |
| Reflectivity, % | >99.9997 % |
| AOI (angle of incidence) | 0 deg |
Element 1, Surface 1, Wavelength 2
| Coating | HT |
| Reflectivity, % | >90 % |
| Transmission, % | >90 % |
| AOI (angle of incidence) | 0 deg |
Element 1, Surface 1, Wavelength 3
| Coating | HT |
| Reflectivity, % | >90 % |
| Transmission, % | >90 % |
| AOI (angle of incidence) | 0 deg |
Element 1, Surface 2, Wavelength 1
| Coating | AR |
| AOI (angle of incidence) | 0 deg |
Wavelength 1
| Optical density | 6 OD |
Description
Notch filters, or stop-band filters, are designed to block a specific narrow wavelength range (stop band) and to transmit broad wavelength ranges outside of this band (pass bands). These optical filters feature high optical density (OD), which is a logarithmic measurement of the percent transmission (T%):
OD = log₁₀ ¹ ⁄ T%. OD is specified for the center wavelength of the stop band.
Eksma Optics Notch filters feature OD 6.0 (transmission less than 0.0001%) that ensures effective blocking of the designated laser wavelength. The back side of the filter is anti-reflection coated at pass band regions to minimize the reflection.

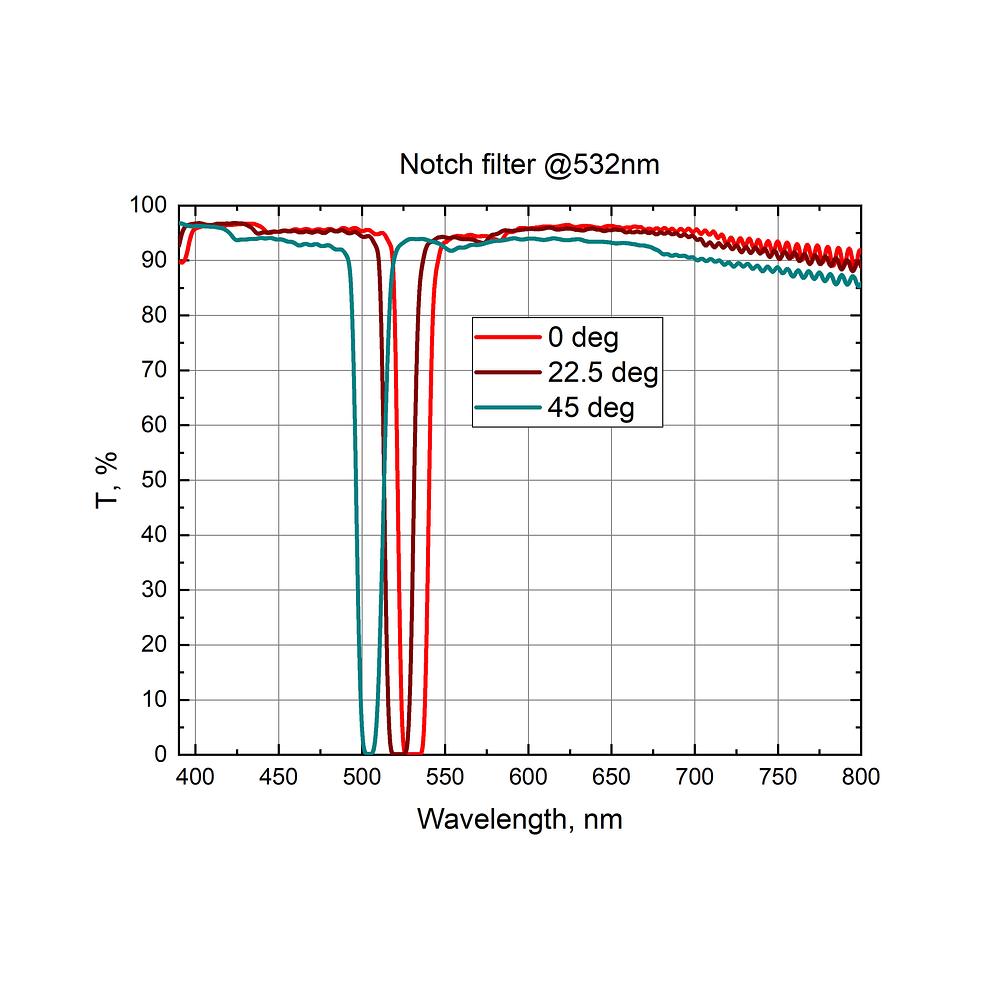

The spectral characteristics of Notch filters strongly depend on the angle of incidence (AOI). We specify OD for the design wavelength at 0° AOI. As angle of incidence increases, the stop band shifts to shorter wavelengths. We provide transmission curves for different AOI values (0°, 22.5°, 45°) for each of our standard Notch filters.
Thin-film notch filters, or rejection filters, can be used for numerous applications, where some specific laser wavelengths need to be blocked, while others have to be transmitted. They are commonly used in Raman spectroscopy, medical laser systems, laser safety applications and laser-based fluorescence instruments.
