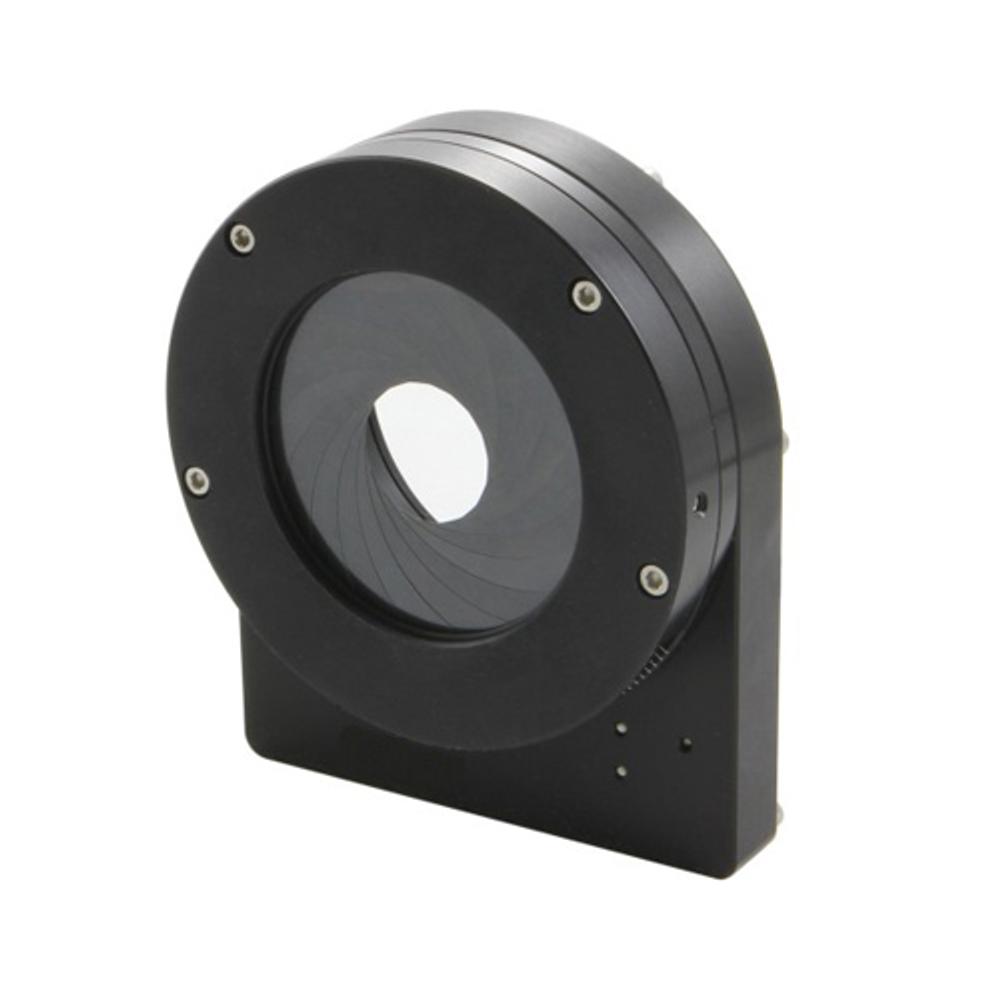

Motorized Iris Diaphragms 996 Series (Max. Aperture Range 30-50 mm)
Irises with max. apertures from 30 mm to 50 mm close from min. to max. in 2 seconds with resolution depending on aperture size. Zero aperture motorized Iris Diaphragms are available on request, max. aperture sizes from… Read more →
Listed in
Configure & order — pick a catalog variant or configure your own
Diaphragm Used
Any
or
d Min. Aperture, mm
Any
d Max. Aperture, mm
Any
Resolution, steps per mm
Any
11
catalog variants — refine the spec to narrow it down.
| SKU | Diaphragm Used · d Max. Aperture, mm · Resolution, steps per mm · d Min. Aperture, mm | |
|---|---|---|
| 996-4330-H | 993-4330-H·30·125·1.5 |
Out of stock
—
|
| 996-4330-N | 993-4330-N·30·125·1.5 |
Out of stock
—
|
| 996-4934-AR | 993-4934-AR·34·111·2 |
Out of stock
—
|
| 996-4934-N | 993-4934-N·34·111·2 |
Out of stock
—
|
| 996-5036-N | 993-5036-N·36·106·2.5 |
Out of stock
—
|
| 996-5337-N | 993-5337-N·37·100·2.5 |
Out of stock
—
|
| 996-5842-N | 993-5842-N·42·91·2.5 |
Out of stock
—
|
| 996-6040-N | 993-6040-N·40·90·2.5 |
Out of stock
—
|
| 996-6445-H | 993-6445-H·45·84·2.5 |
Out of stock
—
|
| 996-6445-N | 993-6445-N·45·84·2.5 |
Out of stock
—
|
| 996-7050-N | 993-7050-N·50·75·2.5 |
Out of stock
—
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a quote request — sales will confirm price and lead time within 1 business day.
Specifications
| Closing speed (min to max) | 2 seconds |
| Stepper motor / gear | 50:1 |
| Limit switch | 2 mechanical |
| Switch polarity | pushed is closed |
| Stepper motor | PG15 / 50 |
Classification
| Type | iris-diaphragm |
Description
Irises with max. apertures from 30 mm to 50 mm close from min. to max. in 2 seconds with resolution depending on aperture size.
Zero aperture motorized Iris Diaphragms are available on request, max. aperture sizes from 12 mm to 40 mm.
