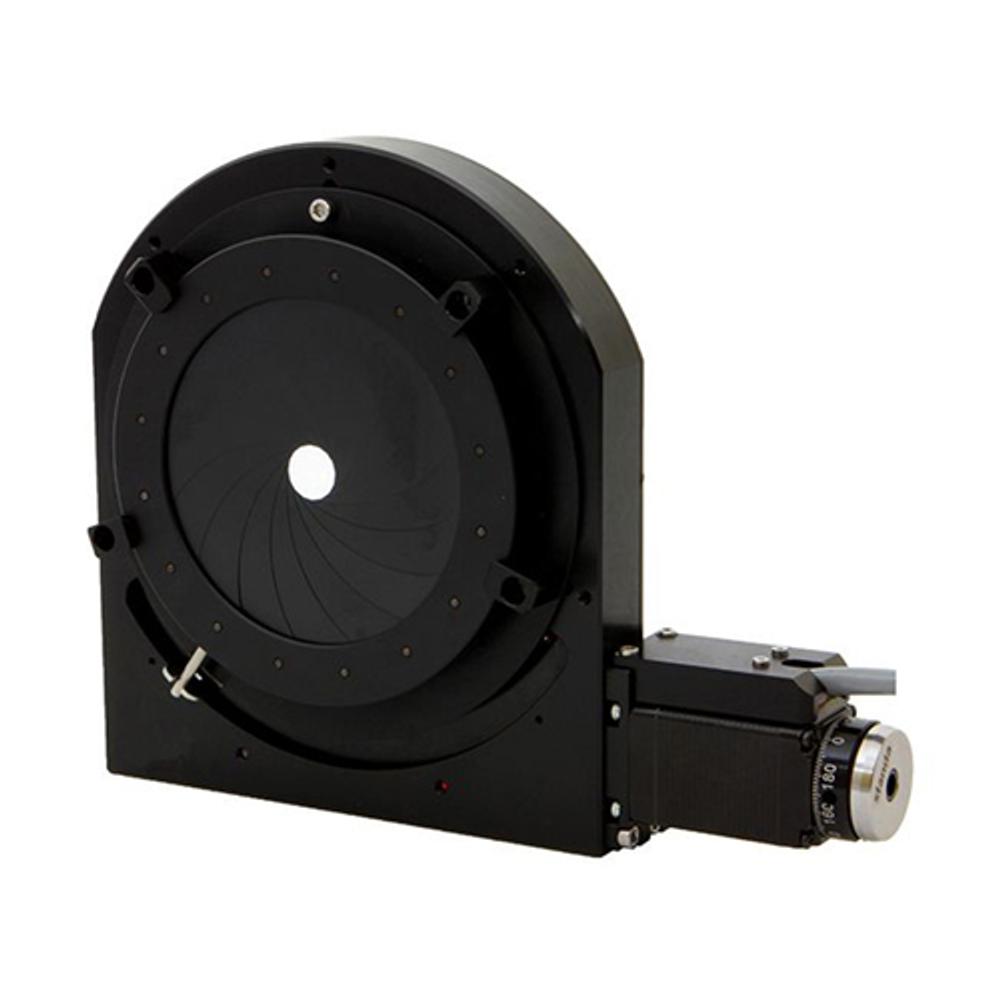

Motorized Iris Diaphragm 997 Series (Max. Aperture Range 60-98 mm)
Motorized Iris Diaphragm is designed for our small medium family, more information about fitted Iris Diaphragms can be found here. Unfortunately, it is impossible to interchange Iris Diaphragms at home since every… Read more →
Listed in
Configure & order — pick a catalog variant or configure your own
Diaphragm Used
Any
or
Min. Aperture, mm
Any
Max. Aperture, mm
Any
Resolution, steps per mm
Any
8
catalog variants — refine the spec to narrow it down.
| SKU | Diaphragm Used · Resolution, steps per mm · Max. Aperture, mm · Min. Aperture, mm · Note · Diaphragm used · Min. aperture, mm · Max. aperture, mm | |
|---|---|---|
| 997-1075-H | 993-1075-H·143·75·4·AR - Leaves with AR coating, for temperatures up to 180 °C |
Out of stock
—
|
| 997-1075-N | 993-1075-N·143·75·4·AR - Leaves with AR coating, for temperatures up to 180 °C |
Out of stock
—
|
| 997-1181-AR | 993-1181-AR·132·81·3·AR - Leaves with AR coating, for temperatures up to 180 °C |
Out of stock
—
|
| 997-1290-AR | 122·993-1290-AR·3.5·90 |
Out of stock
—
|
| 997-1398-H | 993-1398-H·112·98·4·AR - Leaves with AR coating, for temperatures up to 180 °C |
Out of stock
—
|
| 997-1398-N | 993-1398-N·112·98·4·AR - Leaves with AR coating, for temperatures up to 180 °C |
Out of stock
—
|
| 997-8260-H | 993-8260-H·178·60·4·AR - Leaves with AR coating, for temperatures up to 180 °C |
Out of stock
—
|
| 997-8260-N | 993-8260-N·178·60·4·AR - Leaves with AR coating, for temperatures up to 180 °C |
Out of stock
—
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a quote request — sales will confirm price and lead time within 1 business day.
Specifications
| Closing speed (min to max) | 3 seconds |
| Stepper motor / gear | 195:1 |
| Limit switch | 2, mechanical |
| Switch polarity | pushed is closed |
Classification
| Type | iris-diaphragm |
Description
Motorized Iris Diaphragm is designed for our small medium family, more information about fitted Iris Diaphragms can be found here. Unfortunately, it is impossible to interchange Iris Diaphragms at home since every diaphragm has its own adapter ring and requires calibration.
