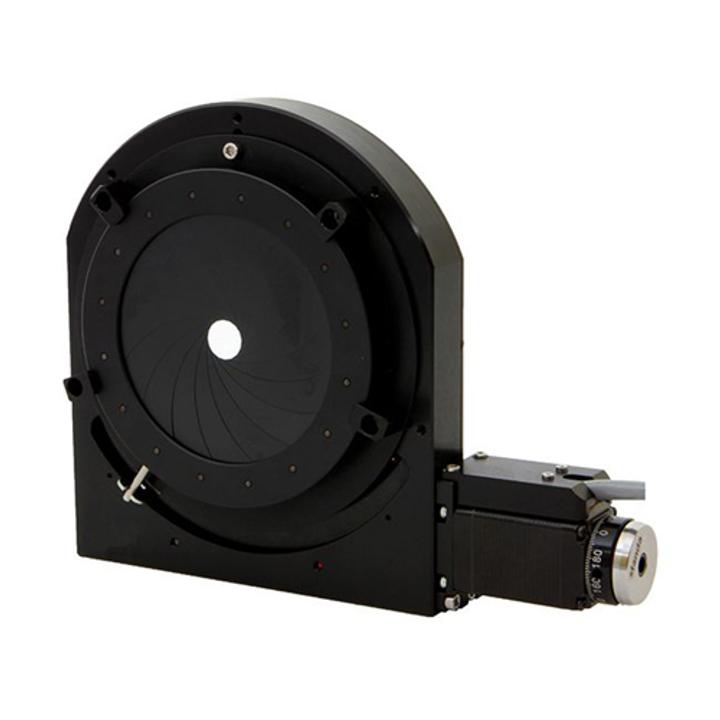

Motorized Iris Diaphragm 997 Series (Max. Aperture Range 60-98 mm) SKU: 997-1290-AR
Motorized Iris Diaphragm is designed for our small medium family, more information about fitted Iris Diaphragms can be found here. Unfortunately, it is impossible to interchange Iris Diaphragms at home since every diaphragm has its own adapter ring and requires calibration.
Variant specifications
| Specification | Value |
|---|---|
| Diaphragm used | 993-1290-AR |
| Min. aperture, mm | 3.5 |
| Max. aperture, mm | 90 |
| Resolution, steps per mm | 122 |
Shared product specifications
These specifications apply across the Motorized Iris Diaphragm 997 Series (Max. Aperture Range 60-98 mm) product family.
| Closing speed (min to max) | 3 seconds |
| Stepper motor / gear | 195:1 |
| Limit switch | 2, mechanical |
| Switch polarity | pushed is closed |
Classification
| Type | iris-diaphragm |
