Motorized Closed Variable Two Wheels Attenuators 991-0702

Motorized Closed Variable Two Wheels Attenuators 991-0702

• Filter diameter – Ø20/Ø25.4 mm • Clear aperture Ø18/Ø23 mm • Non parallel filters (inclined by 4°) • Maximum thickness of filters – 4 mm • C -mount threads on both ends Motorized Closed Variable Two Wheel Attenuator… Read more →

From $1,198 Configure & order →

Volume discount

  • 5–9 units −5%
  • 10+ units −10%

Applied in your cart. Quantities of any variant of this product count together.

Configure & order — pick a catalog variant or configure your own

Product

Input Aperture Diameter 18 mm - 23 mm · 2 values Any mm
mm
2 catalog variants — refine the spec to narrow it down.
SKU Product Type Input Aperture Diameter Controller and Power Supply Included
991-0702-01 Wheel type - Motorized 18 mm False
Out of stock Ships in: 60–63 calendar days
$1,558
991-0702-02 Wheel type - Motorized 23 mm False
Out of stock Ships in: 60–63 calendar days
$1,198

We can make this for you

No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.

Specifications

Product Type Wheel type - Motorized
Width 124 mm
Length 100 mm
Height 125 mm
Controller and Power Supply Included False

Description

  • Filter diameter – Ø20/Ø25.4 mm
  • Clear aperture Ø18/Ø23 mm
  • Non parallel filters (inclined by 4°)
  • Maximum thickness of filters – 4 mm
  • C -mount threads on both ends

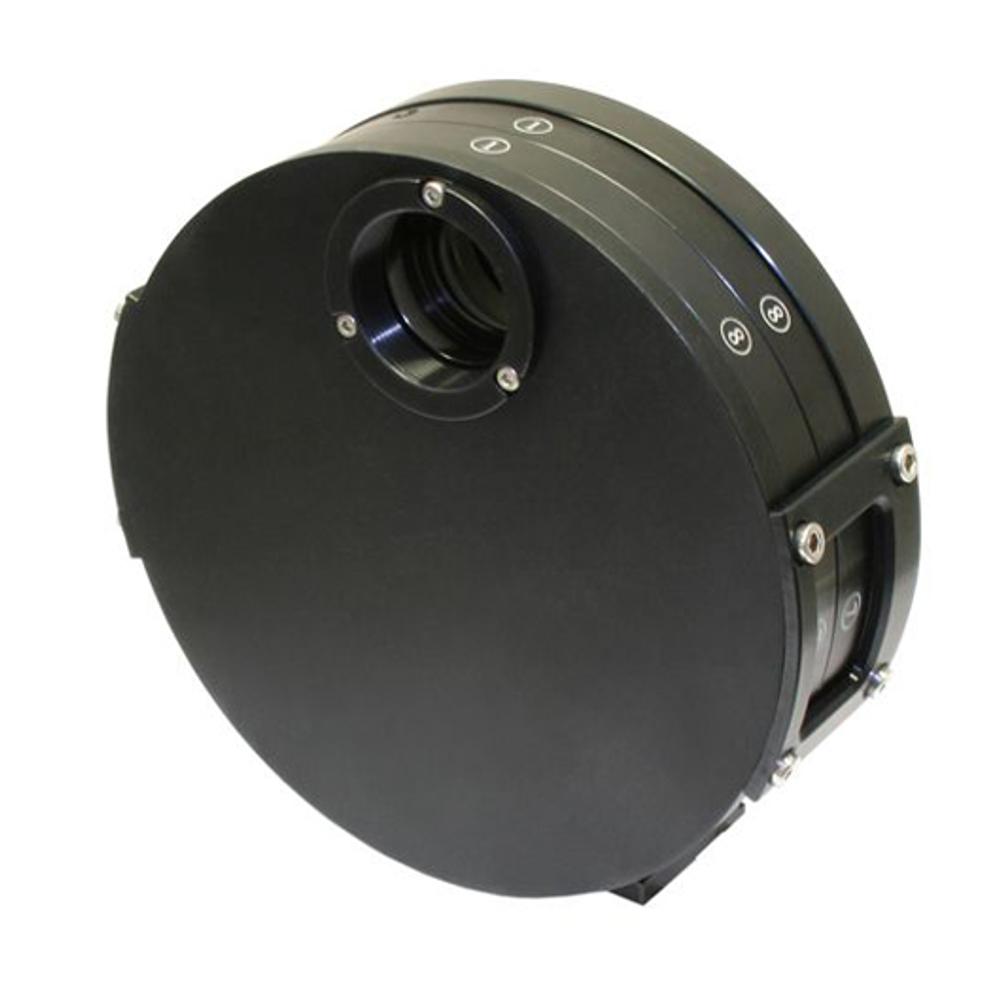

Motorized Closed Variable Two Wheel Attenuator 991-0702 consists of two filter wheels. Each wheel contains eight filter mounts of ØD mm with clear aperture of Ød mm. Each mount is inclined by 4 degrees to prevent mutual reflections between filters.

We supply the attenuator 991-0702-01 with a standard, most popular, set of filters. See the table below. Alternatively, optics could be manufactured to individual orders. Or we could supply the attenuator without filters, which you can fit by yourself. You bring a filter of each wheel into the optical path easily by hand or using automation. The two wheels are driven by a single step motor. A computer can operate it via a controller and Computer Software come separately.

For fastening, the attenuator has clearance slots for M6 and M4 screws. There are also two M6 holes, and one M4 hole (opposite to one of the M6 holes).

Material: black anodized aluminium.
