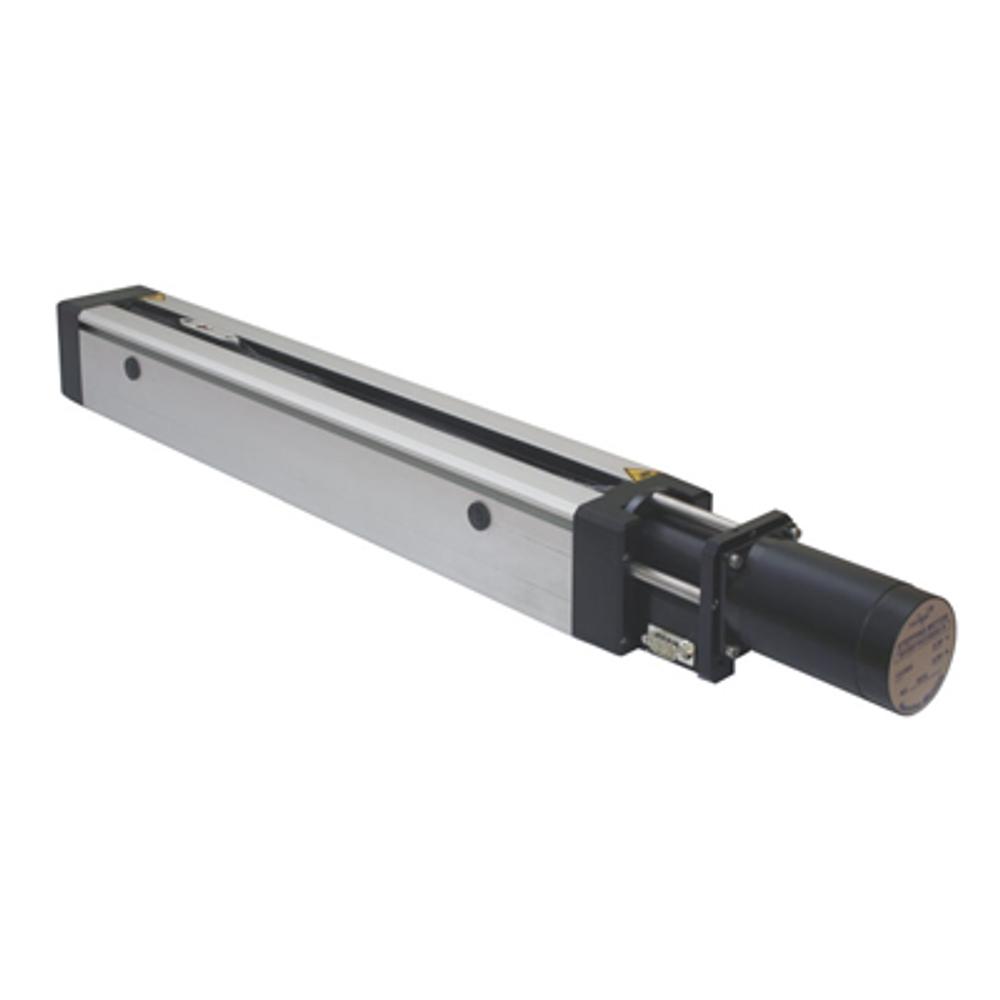

Long-Travel Motorized Linear Stage 960-0110
Long Travel Motorized Linear Stages 960-0110 series stages are designed to provide high-speed movement. Standard motors allow moving loads up to 40 kg. Load capacity can be increased using more powerful motors. This… Read more →
Listed in
Configure & order — pick a catalog variant or configure your own
| SKU | Travel range · Note | |
|---|---|---|
| 960-0110X-340 | 340 mm |
Out of stock
—
|
| 960-0110X-540 | 540 mm |
Out of stock
—
|
| 960-0110X-740 | 740 mm |
Out of stock
—
|
| 960-0110X-840 | 840 mm·Long-Travel Motorized Linear Stages 960-0110 can be ordered with different lead screw pitch 2.5 / 4 / 5 / 10 mm. |
Out of stock
—
|
| 960-0110Z-340 | 340 mm |
Out of stock
—
|
| 960-0110Z-540 | 540 mm |
Out of stock
—
|
| 960-0110Z-740 | 740 mm |
Out of stock
—
|
| 960-0110Z-840 | 840 mm |
Out of stock
—
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Travel range* | 340...2840 mm |
| Lead screw pitch | 2.5 / 4 / 5 / 10 mm |
| Resolution: | Resolution: |
| in full step** | 12.5 µm |
| in 1 / 8 step** | 1.57 µm |
| Max. speed** / on request we fit alternative motors | 40 mm / s |
| Load capacity: | |
| Horizontal | 40 kg |
| Vertical | 10 kg |
| Motor connector | DB9(M) |
| Stepper motor | |
| 960-0110X | 5918 |
| 960-0110Z | 5918-B |
| Mechanical end limit switches | 2 |
| Switch polarity | pushed is open |
| ** Test condition: / -Lead screw pitch - 2.5 mm / -Stepper motor: 2 phase bipolar wiring; phase resistance 2.4 Ω; 200 steps per revolution; step angle - 1.8°; current - 1.5A; / -Controllers / -36V. | ** Test condition: / -Lead screw pitch - 2.5 mm / -Stepper motor: 2 phase bipolar wiring; phase resistance 2.4 Ω; 200 steps per revolution; step angle - 1.8°; current - 1.5A; / -Controllers / -36V. |
Description
Long Travel Motorized Linear Stages 960-0110 series stages are designed to provide high-speed movement. Standard motors allow moving loads up to 40 kg. Load capacity can be increased using more powerful motors. This stage provides moderate resolution and accuracy. 960-0110 stages are supplied equipped with platform, base plates (2 pc) and appropriate amount of inserts.
Resolution and speed of 960-0110 series stages can be varied choosing appropriate ball screw pitch. Several standard options are available and should be specified upon ordering. For application requiring travel over 500 mm we suggest using suggest using 960-0115X series stages (X) paired with 960-0110 series stages (Y) to make XY assemblies.
For applications requiring vertical Z axis movement, we suggest using stages with brake mounted on motor, to prevent carrier sliding down when motor current is turned off. Ordering code of Z stages is 960-0110Z.
