Long-Travel Motorized Linear Stages 960-0115

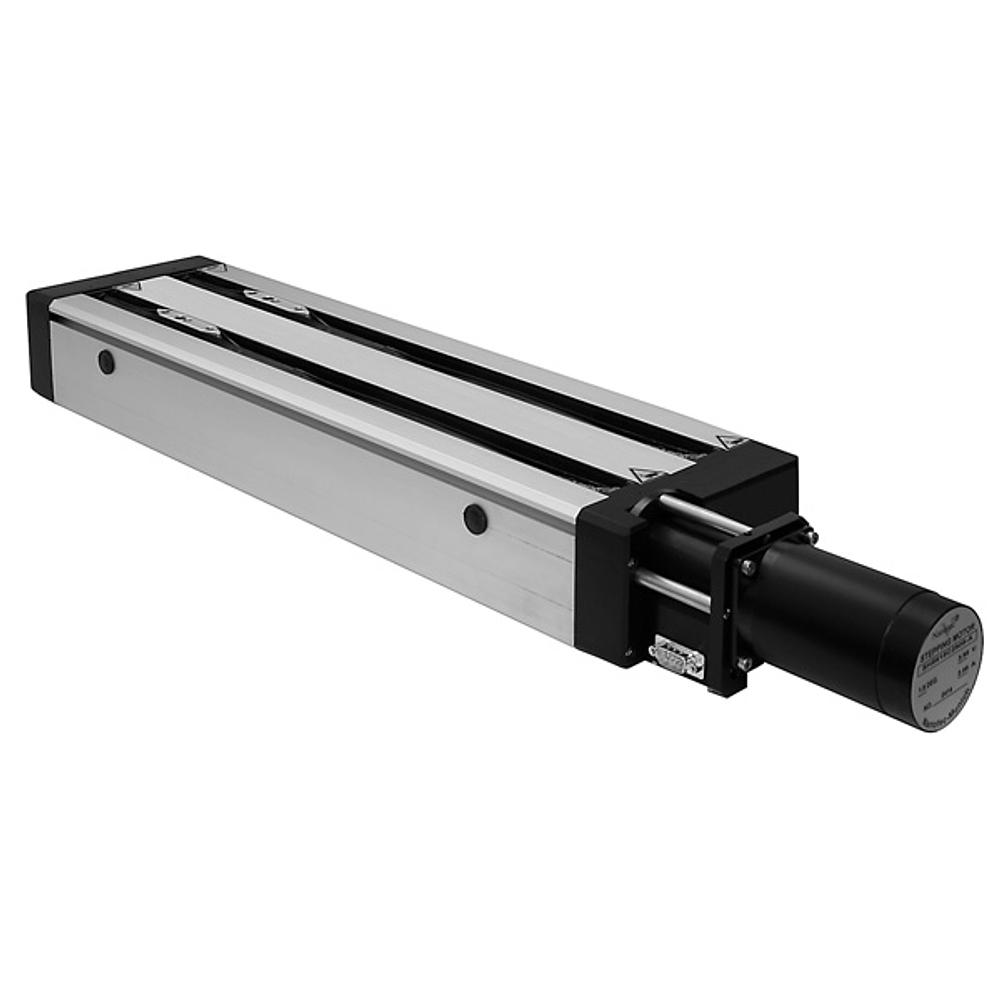

• Long travel • High resolution • Motors of other types are available Long Travel Motorized Linear Stage 960-0115 series stages are designed to provide high-speed movement. Standard motors allow moving loads up to 60… Read more →
Listed in
Configure & order — pick a catalog variant or configure your own
| SKU | Travel range · Note | |
|---|---|---|
| 960-0115X-340 | 340 mm·Long-Travel Motorized Linear Stages 960-0115 can be ordered with different lead screw pitch 2.5 / 4 / 5 / 10 mm. |
Out of stock
—
|
| 960-0115X-540 | 540 mm |
Out of stock
—
|
| 960-0115X-740 | 740 mm |
Out of stock
—
|
| 960-0115X-840 | 840 mm |
Out of stock
—
|
| 960-0115Z-340 | 340 mm |
Out of stock
—
|
| 960-0115Z-540 | 540 mm |
Out of stock
—
|
| 960-0115Z-740 | 740 mm |
Out of stock
—
|
| 960-0115Z-840 | 840 mm |
Out of stock
—
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a quote request — sales will confirm price and lead time within 1 business day.
Specifications
| Travel range | 340...2840 mm |
| Lead screw pitch | 2.5 / 4 / 5 / 10 mm |
| Resolution in full step* | 12.5 µm |
| Resolution in 1 / 8 step* | 1.57 µm |
| Max. speed* / on request we fit alternative motors | 40 mm / s |
| Load capacity: / Horizontal / Vertical | 60kg / 10kg |
| Motor connector | DB9(M) |
| Stepper motor | |
| 960-0115X | 5918 |
| 960-0115Z | 5918-B |
| Mechanical end limit switches | 2 |
| Switch polarity | pushed is open |
Description
- Long travel
- High resolution
- Motors of other types are available
Long Travel Motorized Linear Stage 960-0115 series stages are designed to provide high-speed movement. Standard motors allow moving loads up to 60 kg. Load capacity can be increased using more powerful motors. This stage provides moderate resolution and accuracy. 960-0115 series stages are supplied equipped with platform, bases plates (2 pc) and appropriate amount of inserts.
Resolution and speed of 960-0115 series stages can be varied choosing appropriate ball screw pitch. Several standard options are available and should be specified upon ordering.
For applications requiring vertical Z axis movement, we suggest using stages with brake mounted on motor, to prevent carrier sliding down when motor current is turned off. Ordering code of Z stages is 960-0115Z.
