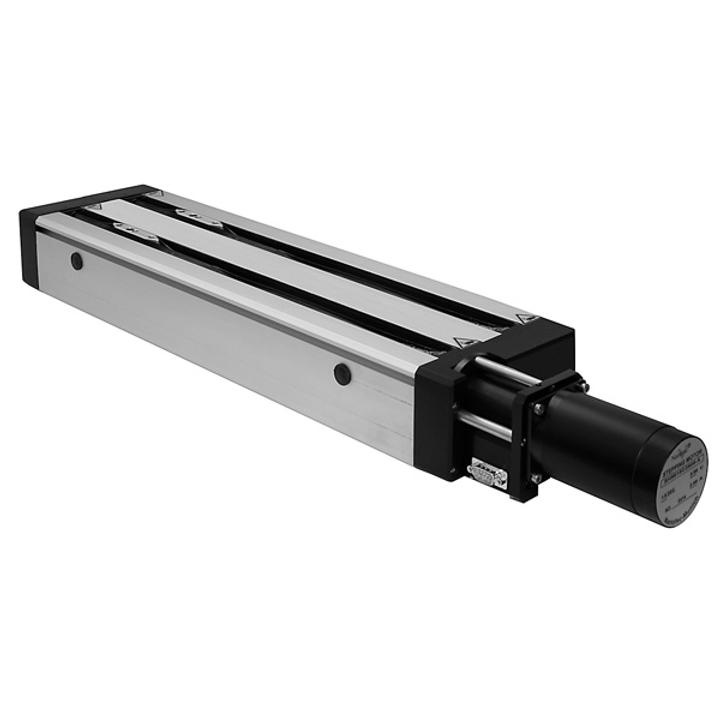

Long-Travel Motorized Linear Stages 960-0115 SKU: 960-0115X-840
• Long travel • High resolution • Motors of other types are available Long Travel Motorized Linear Stage 960-0115 series stages are designed to provide high-speed movement. Standard motors allow moving loads up to 60 kg. Load capacity can be increased using more powerful…
Variant specifications
| Specification | Value |
|---|---|
| Travel range | 840 mm |
Shared product specifications
These specifications apply across the Long-Travel Motorized Linear Stages 960-0115 product family.
| Travel range | 340...2840 mm |
| Lead screw pitch | 2.5 / 4 / 5 / 10 mm |
| Resolution in full step* | 12.5 µm |
| Resolution in 1 / 8 step* | 1.57 µm |
| Max. speed* / on request we fit alternative motors | 40 mm / s |
| Load capacity: / Horizontal / Vertical | 60kg / 10kg |
| Motor connector | DB9(M) |
| Stepper motor | |
| 960-0115X | 5918 |
| 960-0115Z | 5918-B |
| Mechanical end limit switches | 2 |
| Switch polarity | pushed is open |
