Femtoline Thin AR Lenses @ 515 + 1030 nm

Femtoline Thin AR Lenses @ 515 + 1030 nm

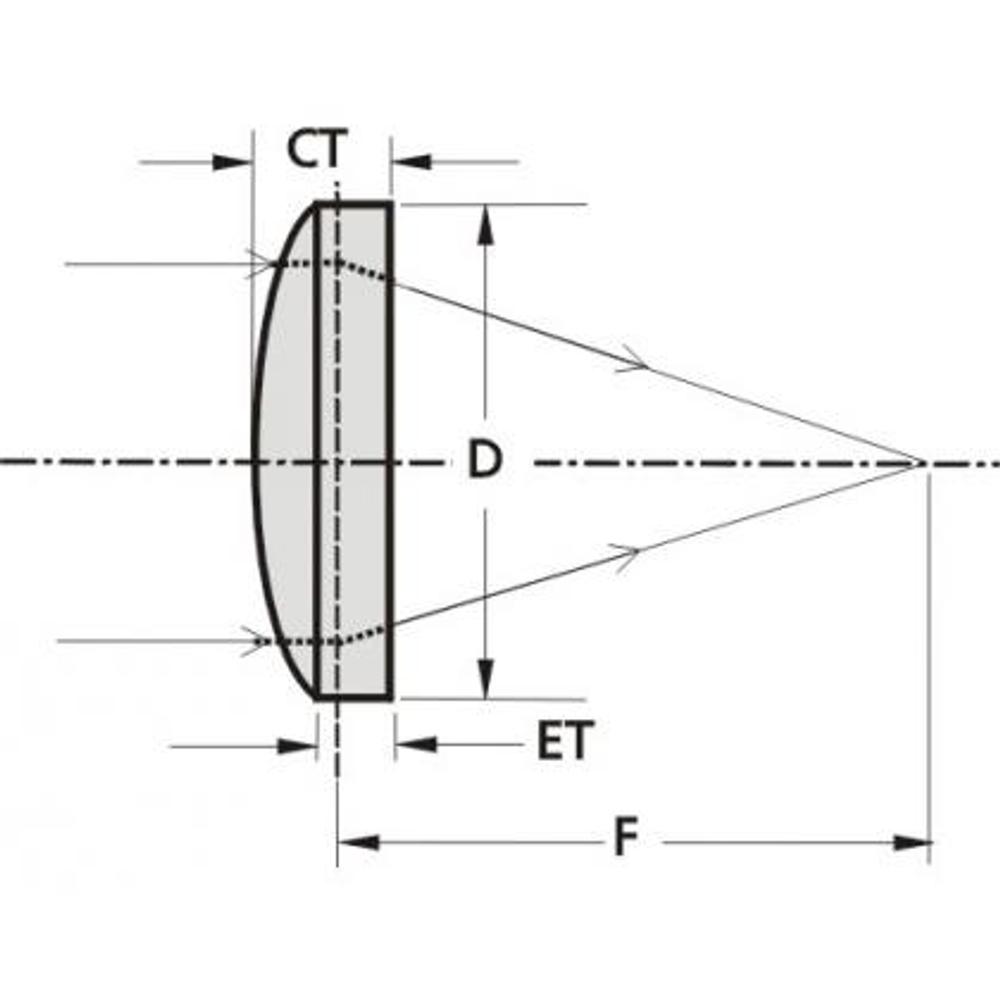

• Anti-Reflective coated AR/AR@515 + 1030 nm • Very thin: edge thickness varies from 0,5~1,9 mm • Centre thickness varies from 1~3 mm • Plano-Convex or Plano-Concave type • Can be also supplied uncoated, or with… Read more →

From $123 Configure & order →

Volume discount

  • 5–9 units −10%
  • 10+ units −15%

Applied in your cart. Quantities of any variant of this product count together.

Configure & order — pick a catalog variant or configure your own

Product

Diameter 12.5 mm - 50.8 mm · 4 values Any mm
mm
Center Thickness 1 mm - 14 mm · 19 values Any mm
mm
Focal Length -300 mm - 6000 mm · 33 values Any mm
mm

Surface 1

Surface Shape Any

Surface 1, Wavelength 1

Wavelength 500 nm - 530 nm · 2 values Any nm
nm
108 catalog variants — refine the spec to narrow it down.
SKU Diameter Center Thickness Focal Length Material Surface Shape S1 Coating Wavelength Surface Shape S2
110-1106ET+ARD1030 12.7 mm 2.5 mm 30 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$123
110-1106ET+ARD1030HT 12.7 mm 2.5 mm 30 mm UVFS Convex AR 500 nm - 530 nm Plano
1 in stock Ships in: 2–5 calendar days
$210
110-1108ET+ARD1030 12.7 mm 1.8 mm 40 mm UVFS Convex AR 500 nm - 530 nm Plano
Out of stock Ships in: 62–65 calendar days
$123
110-1108ET+ARD1030HT 12.7 mm 1.8 mm 40 mm UVFS Convex AR 500 nm - 530 nm Plano
Out of stock Ships in: 62–65 calendar days
$210
110-1109ET+ARD1030 12.7 mm 1.9 mm 50 mm UVFS Convex AR 515 nm Plano
2 in stock Ships in: 2–5 calendar days
$123
110-1109ET+ARD1030HT 12.7 mm 1.9 mm 50 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$210
110-1109MT+ARD1030 12.5 mm 1.9 mm 50 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 58–61 calendar days
$123
110-1111ET+ARD1030 12.7 mm 1.8 mm 75 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$123
110-1111ET+ARD1030HT 12.7 mm 1.8 mm 75 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$210
110-1111MT+ARD1030 12.5 mm — 75 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 58–61 calendar days
$123
110-1115ET+ARD1030 12.7 mm 1.5 mm 100 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$123
110-1115ET+ARD1030HT 12.7 mm 1.5 mm 100 mm UVFS Convex AR 515 nm Plano
1 in stock Ships in: 2–5 calendar days
$210
110-1115MT+ARD1030 12.5 mm — 100 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 58–61 calendar days
$123
110-1117ET+ARD1030 12.7 mm 1.4 mm 125 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$123
110-1117ET+ARD1030HT 12.7 mm 1.4 mm 125 mm UVFS Convex AR 515 nm Plano
2 in stock Ships in: 2–5 calendar days
$210
110-1117MT+ARD1030 12.5 mm — 125 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 58–61 calendar days
$123
110-1119ET+ARD1030 12.7 mm 1.5 mm 150 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$123
110-1119ET+ARD1030HT 12.7 mm 1.5 mm 150 mm UVFS Convex AR 515 nm Plano
2 in stock Ships in: 2–5 calendar days
$210
110-1119MT+ARD1030 12.5 mm — 150 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 58–61 calendar days
$123
110-1121ET+ARD1030 12.7 mm 1.2 mm 175 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$123
110-1121ET+ARD1030HT 12.7 mm 1.2 mm 175 mm UVFS Convex AR 515 nm Plano
1 in stock Ships in: 2–5 calendar days
$210
110-1121MT+ARD1030 12.5 mm — 175 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 58–61 calendar days
$123
110-1123ET+ARD1030 12.7 mm 1.2 mm 200 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$123
110-1123ET+ARD1030HT 12.7 mm 1.2 mm 200 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$210
110-1126ET+ARD1030HT 12.7 mm 1.1 mm 250 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$210
110-1129ET+ARD1030HT 12.7 mm 1.1 mm 300 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$210
110-1133ET+ARD1030 12.7 mm 1.1 mm 400 mm UVFS Convex AR 515 nm Plano
1 in stock Ships in: 2–5 calendar days
$123
110-1133ET+ARD1030HT 12.7 mm 1.1 mm 400 mm UVFS Convex AR 515 nm Plano
1 in stock Ships in: 2–5 calendar days
$210
110-1135ET+ARD1030 12.7 mm 1.1 mm 450 mm UVFS Convex AR 515 nm Plano
1 in stock Ships in: 2–5 calendar days
$123
110-1135ET+ARD1030HT 12.7 mm 1.1 mm 450 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$210
110-1137ET+ARD1030HT 12.7 mm 1.1 mm 500 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$210
110-1205ET+ARD1030 25.4 mm 4.9 mm 50 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$147
110-1205ET+ARD1030HT 25.4 mm 4.9 mm 50 mm UVFS Convex AR 515 nm Plano
1 in stock Ships in: 2–5 calendar days
$234
110-1209ET+ARD1030 25.4 mm 3 mm 75 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$147
110-1209ET+ARD1030HT 25.4 mm 3 mm 75 mm UVFS Convex AR 500 nm - 530 nm Plano
1 in stock Ships in: 2–5 calendar days
$234
110-1211ET+ARD1030 25.4 mm 2.5 mm 100 mm UVFS Convex AR 515 nm Plano
1 in stock Ships in: 2–5 calendar days
$147
110-1211ET+ARD1030HT 25.4 mm 2.5 mm 100 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$234
110-1216ET+ARD1030 25.4 mm 2 mm 125 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$147
110-1216ET+ARD1030HT 25.4 mm 2 mm 125 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$234
110-1217ET+ARD1030 25.4 mm 2 mm 150 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$147
110-1217ET+ARD1030HT 25.4 mm 2 mm 150 mm UVFS Convex AR 500 nm - 530 nm Plano
Out of stock Ships in: 62–65 calendar days
$234
110-1219ET+ARD1030 25.4 mm 2 mm 200 mm UVFS Convex AR 515 nm Plano
2 in stock Ships in: 2–5 calendar days
$147
110-1219ET+ARD1030HT 25.4 mm 2 mm 200 mm UVFS Convex AR 500 nm - 530 nm Plano
Out of stock Ships in: 62–65 calendar days
$234
110-1223ET+ARD1030 25.4 mm 2 mm 300 mm UVFS Convex AR 515 nm Plano
2 in stock Ships in: 2–5 calendar days
$147
110-1223ET+ARD1030HT 25.4 mm 2 mm 300 mm UVFS Convex AR 500 nm - 530 nm Plano
Out of stock Ships in: 62–65 calendar days
$234
110-1225ET+ARD1030 25.4 mm 2 mm 350 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$147
110-1225ET+ARD1030HT 25.4 mm 2 mm 350 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$234
110-1227ET+ARD1030 25.4 mm 2 mm 400 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$147
110-1227ET+ARD1030HT 25.4 mm 2 mm 400 mm UVFS Convex AR 500 nm - 530 nm Plano
Out of stock Ships in: 62–65 calendar days
$234
110-1231ET+ARD1030 25.4 mm 2 mm 450 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$147
110-1231ET+ARD1030HT 25.4 mm 2 mm 450 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$234
110-1233ET+ARD1030 25.4 mm 2 mm 500 mm UVFS Convex AR 515 nm Plano
2 in stock Ships in: 2–5 calendar days
$147
110-1233ET+ARD1030HT 25.4 mm 2 mm 500 mm UVFS Convex AR 500 nm - 530 nm Plano
Out of stock Ships in: 62–65 calendar days
$234
110-1245ET+ARD1030 25.4 mm 1.5 mm 1000 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$147
110-1245ET+ARD1030HT 25.4 mm 1.5 mm 1000 mm UVFS Convex AR 500 nm - 530 nm Plano
Out of stock Ships in: 62–65 calendar days
$234
110-1255ET+ARD1030 25.4 mm 1.4 mm 1500 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$147
110-1255ET+ARD1030HT 25.4 mm 1.4 mm 1500 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$234
110-1265ET+ARD1030HT 25.4 mm 1.4 mm 2000 mm UVFS Convex AR 515 nm Plano
1 in stock Ships in: 2–5 calendar days
$234
110-1505ET+ARD1030HT 50.8 mm 14 mm 75 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 58–61 calendar days
$354
110-1509ET+ARD1030 50.8 mm 10.3 mm 100 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$267
110-1509ET+ARD1030HT 50.8 mm 10.3 mm 100 mm UVFS Convex AR 515 nm Plano
1 in stock Ships in: 2–5 calendar days
$354
110-1511ET+ARD1030HT 50.8 mm 7.4 mm 150 mm UVFS Convex AR 515 nm Plano
1 in stock Ships in: 2–5 calendar days
$354
110-1515ET+ARD1030HT 50.8 mm 6.1 mm 200 mm UVFS Convex AR 515 nm Plano
1 in stock Ships in: 2–5 calendar days
$354
110-1519ET+ARD1030HT 50.8 mm 4.9 mm 300 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$354
110-1523ET+ARD1030 50.8 mm 4.3 mm 400 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$267
110-1523ET+ARD1030HT 50.8 mm 4.3 mm 400 mm UVFS Convex AR 515 nm Plano
1 in stock Ships in: 2–5 calendar days
$354
110-1527ET+ARD1030HT 50.8 mm 3.9 mm 500 mm UVFS Convex AR 500 nm - 530 nm Plano
Out of stock Ships in: 62–65 calendar days
$354
110-1545ET+ARD1030HT 50.8 mm 3.2 mm 1000 mm UVFS Convex AR 500 nm - 530 nm Plano
Out of stock Ships in: 62–65 calendar days
$354
110-1550ET+ARD1030HT 50.8 mm 3 mm 1500 mm UVFS Convex AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$354
110-1567ET+ARD1030HT 50.8 mm 2.6 mm 5000 mm UVFS Convex AR 515 nm Plano
1 in stock Ships in: 2–5 calendar days
$354
110-1570ET+ARD1030HT 50.8 mm 2.6 mm 6000 mm UVFS Convex AR 515 nm Plano
1 in stock Ships in: 2–5 calendar days
$354
112-1104ET+ARD1030HT 12.7 mm 1 mm -20 mm UVFS Concave AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$210
112-1106ET+ARD1030 12.7 mm 1 mm -30 mm UVFS Concave AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$123
112-1106ET+ARD1030HT 12.7 mm 1 mm -30 mm UVFS Concave AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$210
112-1106MT+ARD1030 12.5 mm — -30 mm UVFS Concave AR 515 nm Plano
Out of stock Ships in: 58–61 calendar days
$123
112-1108ET+ARD1030 12.7 mm 1 mm -40 mm UVFS Concave AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$123
112-1108MT+ARD1030 12.5 mm 1 mm -40 mm UVFS Concave AR 515 nm Plano
Out of stock Ships in: 58–61 calendar days
$123
112-1109ET+ARD1030 12.7 mm 1 mm -50 mm UVFS Concave AR 515 nm Plano
1 in stock Ships in: 2–5 calendar days
$123
112-1109ET+ARD1030HT 12.7 mm 1 mm -50 mm UVFS Concave AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$210
112-1109MT+ARD1030 12.5 mm — -50 mm UVFS Concave AR 515 nm Plano
Out of stock Ships in: 58–61 calendar days
$123
112-1110ET+ARD1030 12.7 mm 1 mm -60 mm UVFS Concave AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$123
112-1110ET+ARD1030HT 12.7 mm 1 mm -60 mm UVFS Concave AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$210
112-1112ET+ARD1030 12.7 mm — -75 mm UVFS Concave AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$123
112-1112ET+ARD1030HT 12.7 mm — -75 mm UVFS Concave AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$210
112-1112MT+ARD1030 12.5 mm — -75 mm UVFS Concave AR 515 nm Plano
Out of stock Ships in: 58–61 calendar days
$123
112-1113ET+ARD1030 12.7 mm 1 mm -80 mm UVFS Concave AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$123
112-1115ET+ARD1030 12.7 mm 1 mm -100 mm UVFS Concave AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$123
112-1115ET+ARD1030HT 12.7 mm 1 mm -100 mm UVFS Concave AR 515 nm Plano
1 in stock Ships in: 2–5 calendar days
$210
112-1115MT+ARD1030 12.5 mm — -100 mm UVFS Concave AR 515 nm Plano
Out of stock Ships in: 58–61 calendar days
$123
112-1117ET+ARD1030 12.7 mm 1 mm -125 mm UVFS Concave AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$123
112-1117ET+ARD1030HT 12.7 mm 1 mm -125 mm UVFS Concave AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$210
112-1119ET+ARD1030 12.7 mm 1 mm -150 mm UVFS Concave AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$123
112-1119MT+ARD1030 12.5 mm 1 mm -150 mm UVFS Concave AR 515 nm Plano
Out of stock Ships in: 58–61 calendar days
$123
112-1205ET+ARD1030 25.4 mm 1.5 mm -50 mm UVFS Concave AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$147
112-1205ET+ARD1030HT 25.4 mm 1.5 mm -50 mm UVFS Concave AR 515 nm Plano
3 in stock Ships in: 2–5 calendar days
$234
112-1209ET+ARD1030 25.4 mm 1.5 mm -75 mm UVFS Concave AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$147
112-1209ET+ARD1030HT 25.4 mm 1.5 mm -75 mm UVFS Concave AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$234
112-1211ET+ARD1030 25.4 mm 1.5 mm -100 mm UVFS Concave AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$147
112-1211ET+ARD1030HT 25.4 mm 1.5 mm -100 mm UVFS Concave AR 515 nm Plano
3 in stock Ships in: 2–5 calendar days
$234
112-1215ET+ARD1030 25.4 mm 1.5 mm -125 mm UVFS Concave AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$147
112-1217ET+ARD1030 25.4 mm 1.5 mm -150 mm UVFS Concave AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$147
112-1217ET+ARD1030HT 25.4 mm 1.5 mm -150 mm UVFS Concave AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$234
112-1219ET+ARD1030 25.4 mm 1.5 mm -200 mm UVFS Concave AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$147
112-1219ET+ARD1030HT 25.4 mm 1.5 mm -200 mm UVFS Concave AR 515 nm Plano
1 in stock Ships in: 2–5 calendar days
$234
112-1221ET+ARD1030 25.4 mm 1.5 mm -250 mm UVFS Concave AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$147
112-1221ET+ARD1030HT 25.4 mm 1.5 mm -250 mm UVFS Concave AR 515 nm Plano
1 in stock Ships in: 2–5 calendar days
$234
112-1223ET+ARD1030 25.4 mm 1.5 mm -300 mm UVFS Concave AR 515 nm Plano
Out of stock Ships in: 62–65 calendar days
$147
112-1223ET+ARD1030HT 25.4 mm 1.5 mm -300 mm UVFS Concave AR 515 nm Plano
1 in stock Ships in: 2–5 calendar days
$234

We can make this for you

No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.

Specifications

Shape Type Round
Diameter Upper Tolerance 0 mm
Diameter Lower Tolerance -0.12 mm
Edge Thickness Upper Tolerance 0.2 mm
Edge Thickness Lower Tolerance -0.2 mm
Focal Length tolerance %, +/- 2 %
Material UVFS

Surface 1, Wavelength 1

Coating AR
AOI (angle of incidence) 0 deg

Surface 1, Wavelength 2

Coating AR
AOI (angle of incidence) 0 deg

Surface 2

Surface Shape Plano

Surface 2, Wavelength 1

Coating AR
AOI (angle of incidence) 0 deg

Surface 2, Wavelength 2

Coating AR
AOI (angle of incidence) 0 deg

Description

  • Anti-Reflective coated AR/AR@515 + 1030 nm
  • Very thin: edge thickness varies from 0,5~1,9 mm
  • Centre thickness varies from 1~3 mm
  • Plano-Convex or Plano-Concave type
  • Can be also supplied uncoated, or with different AR coatings

Femtoline Thin AR coated at 515 + 1030 nm Lenses for applications with femtosecond Ti:Sapphire laser pulses. Presented lenses ensure low Group Delay Dispersion of broadband femtosecond Ti:Sapphire laser pulses.

Downloads

PDF
EKSMA_Optics_Thin_Lenses_5_.pdf PDF · 90.1 KB

Related products — often paired with this product
