DP Series Pockels Cell Drivers for Low Operation Voltages (≤2 MHz, ≤3.6 kV)
Features: • HV pulse amplitude up to 3.6 kV • Repetition rate up to 2 MHz • HV pulse duration extension using pulse regeneration technique • Alternative aluminum case option featuring conductive cooling… Read more →
Listed in
Configure & order — pick a catalog variant or configure your own
| SKU | MAX. HV REPETITION RATE · MAX. HV OPERATING VOLTAGE · Max. HV operating voltage · Max. HV repetition rate · Control | |
|---|---|---|
| DP-1000-1.8 | 1000 kHz·1.8 kV |
Out of stock
$2,678
|
| DP-1000-1.8-Al | 1000 kHz·1.8 kV |
Out of stock
$2,863
|
| DP-2000-1.5 | 1.5 kV·2000 kHz·switchable |
Out of stock
—
|
| DP-2000-1.5-Al | 2000 kHz·1.5 kV |
Out of stock
$3,095
|
| DP-250-2.5 | 250 kHz·2.5 kV |
Out of stock
—
|
| DP-250-2.5-Al | 250 kHz·2.5 kV |
Out of stock
$2,499
|
| DP-250-3.6 | 250 kHz·3.6 kV |
Out of stock
$2,701
|
| DP-250-3.6-Al | 250 kHz·3.6 kV |
Out of stock
$2,915
|
| DP-400-1.5 | 400 kHz·1.5 kV |
Out of stock
—
|
| DP-400-1.5-AI | 400 kHz·1.5 kV |
Out of stock
—
|
| DP-50-3.6 | 50 kHz·3.6 kV |
Out of stock
$1,990
|
| DP-50-3.6-AI | 50 kHz·3.6 kV |
Out of stock
$2,701
|
| DP-500-2.6 | 500 kHz·2.6 kV |
Out of stock
$2,915
|
| DP-500-2.6-Al | 500 kHz·2.6 kV |
1 in stock
Ships in: 2–5 calendar days
$3,118
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a quote request — sales will confirm price and lead time within 1 business day.
Specifications
| DP-50-3.6 / DP-50-3.6-AI | DP-250-2.5 / DP-250-2.5-Al | DP-250-3.6 / DP-250-3.6-Al | DP-400-1.5 / DP-400-1.5-AI | |
|---|---|---|---|---|
| Maximal HV operating voltage | 3.6 kV | 2.5 kV | 3.6 kV | 1.5 kV |
| Maximal HV repetition rate | 60 kHz | 250 kHz | 250 kHz | 400 kHz |
| Pulse duration | 100 - 5000 ns | 100 - 5000 ns | 100 - 5000 ns | 100 - 5000 ns |
| HV pulse rise time, typical | <7 ns | <6 ns | <7 ns | <5.5 ns |
| HV pulse fall time, typical | <7 ns | <6 ns | <7 ns | <5.5 ns |
| Output polarity | Positive | Positive | Positive | Positive |
| HV power consumption | <20 W | <40 W | <75 W | <20 W |
| 12V / 24V power consumption | <1 W | <4.5 W | <4 W | <5.5 W |
| Cooling | Water | Water | Water | Water |
| DP-500-2.6 / DP-500-2.6-Al | DP-1000-1.8 / DP-1000-1.8-Al | DP-2000-1.5 / DP-2000-1.5-Al | |
|---|---|---|---|
| Maximal HV operating voltage | 2.6 kV | 1.8 kV | 1.5 kV |
| Maximal HV repetition rate | 500 kHz | 1 MHz | 2 MHz |
| Pulse duration | 100 - 5000 ns | 100 - 5000 ns | 100 - 5000 ns |
| HV pulse rise time, typical | <6.5 ns | <6 ns | <7 ns |
| HV pulse fall time, typical | <6.5 ns | <7 ns | <7 ns |
| Output polarity | Positive | Positive | Positive |
| HV power consumption | <90 W | <80 W | <120 W |
| 12V / 24V power consumption | <6 W | <9 W | <12 W |
| Cooling | Water | Water | Water |
Description
Features:
- HV pulse amplitude up to 3.6 kV
- Repetition rate up to 2 MHz
- HV pulse duration extension using pulse regeneration technique
- Alternative aluminum case option featuring conductive cooling possibility and relocated water and HV output connectors (Option 1)
- OEM version available upon request

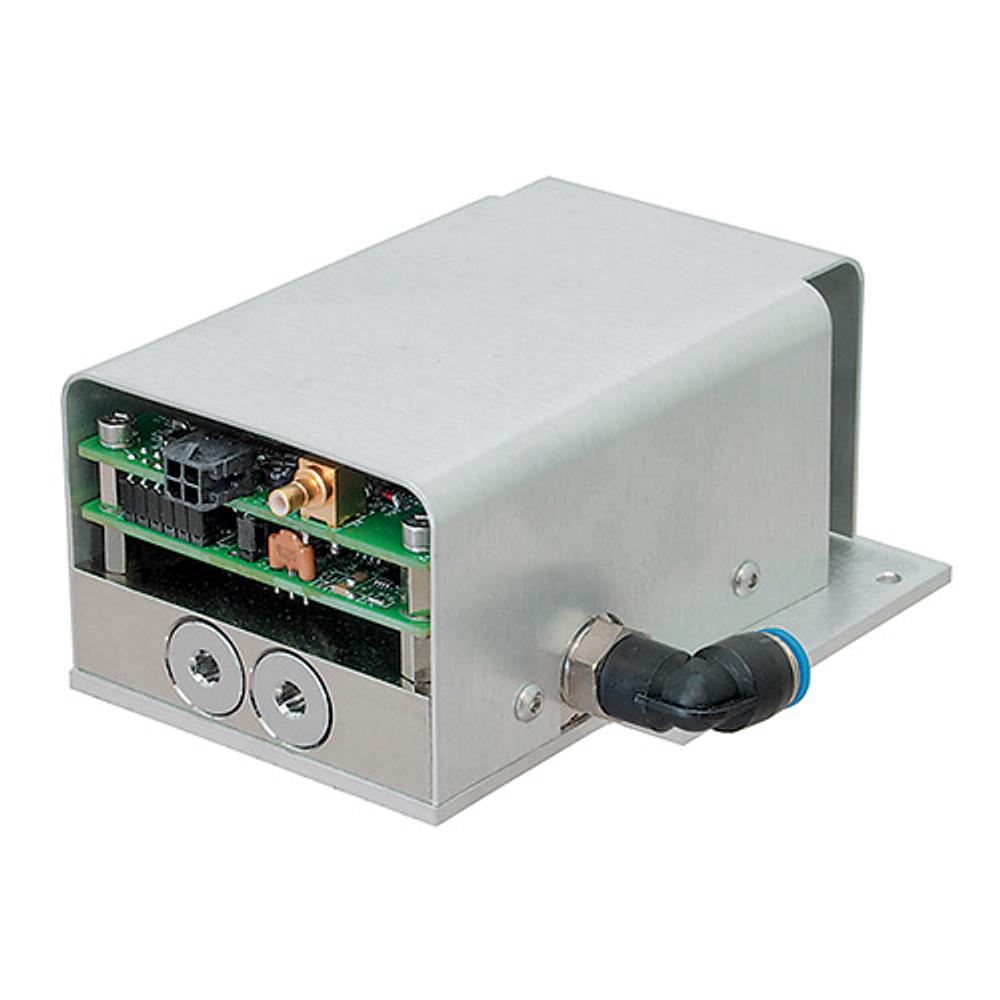

DP series units are available in two versions: "open frame" which is ideal for OEM manufacturers incorporating drivers in their own systems and encased in aluminum housings. Encasing of Pockels cell driver in aluminum housing solves two problems: shields both humans and electronics from high voltage impact from operating Pockels cell driver, and protects driver itself from potentially harmful external contact - ensuring safe operation and driver longevity. The housed option is especially handy for researchers and custom product manufacturers who use these drivers during their own systems build-up.
