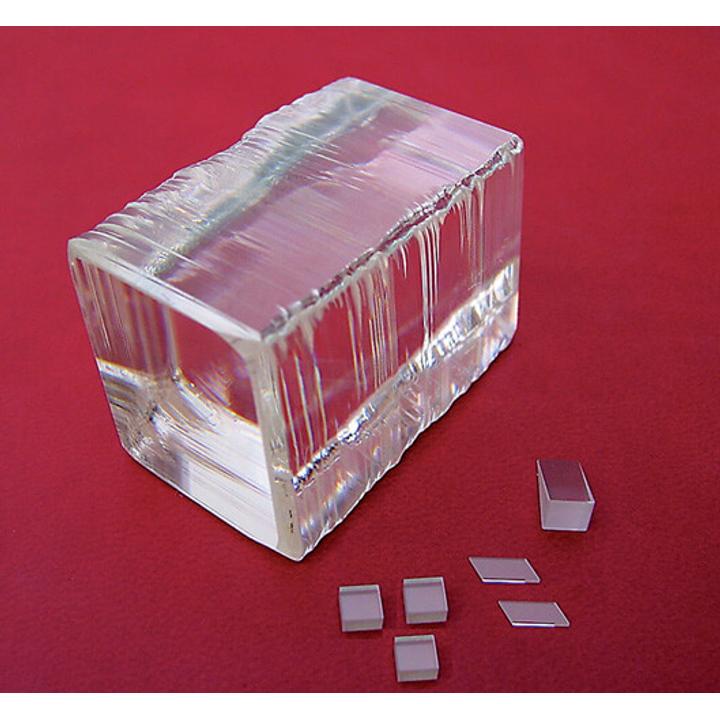

Yb:KGW Crystals SKU: YbKGW-1105-01
Yb:KGW and Yb:KYW crystals have broad emission bandwidths and are used as lasing materials to generate ultrashort (~ 100-200 fs) high power pulses. Direct pump of Yb:KGW/KYW crystals with laser diodes operating at 981 nm supports compact laser systems. Yb:KGW/KYW laser generates…
Variant specifications
| Product | Value |
|---|---|
| Width | 2 mm |
| Height | 2 mm |
| Thickness | 5 mm |
| Design Wavelength Range | 1023 nm - 1060 nm |
| Material | Yb:KGW |
| Orientation | Np-cut |
| Concentration | 3 % |
| Surface 1 | Value |
|---|---|
| Surface quality, MIL | 10-5 |
| Surface 1, Wavelength 1 | Value |
|---|---|

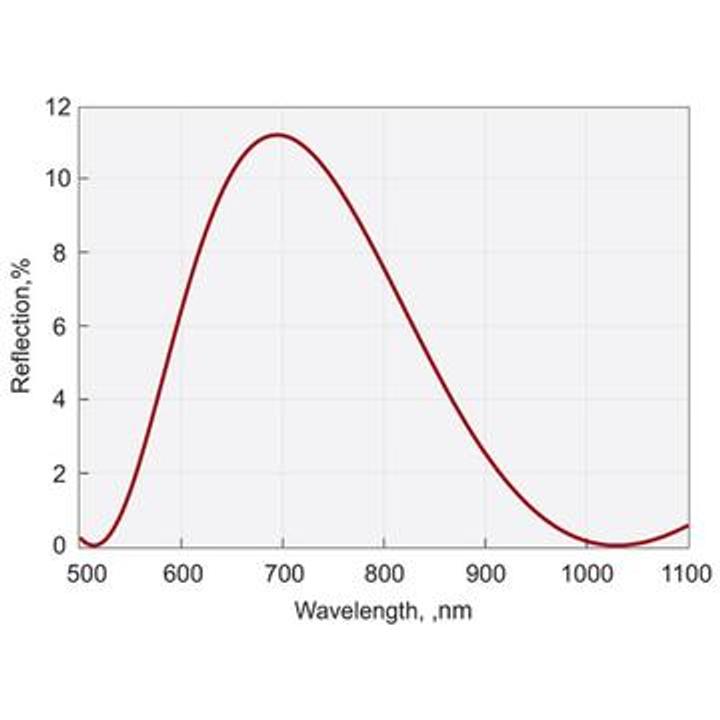

| Coating | AR |
| Wavelength | 980 nm - 1040 nm |
| Surface 2 | Value |
|---|---|
| Surface quality, MIL | 10-5 |
| Surface 2, Wavelength 1 | Value |
|---|---|
| Coating | AR |
| Wavelength | 980 nm - 1040 nm |
Product brochures
Shared documentation for the complete product family.
