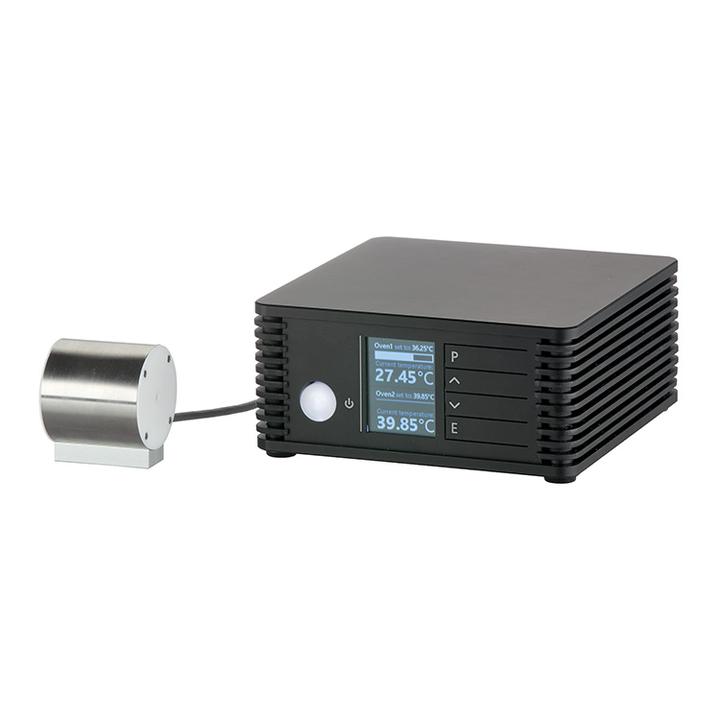

Temperature Controller TC2 with Oven CO1 SKU: TC2

TC1 and CO1 is high temperature set (up to 200 °C) consisting of thermocontroller TC1 and crystal oven CO1. TC1 has two independent outputs and can control two CO1-30 ovens simultaneously or one CO2-50 oven. Trough RS232 computer interface it can be controlled from personal…

Variant specifications

Specification	Value
Description	Temperature controller

Shared product specifications

These specifications apply across the Temperature Controller TC2 with Oven CO1 product family.

Specifications

SPECIFICATIONS	TC2 + CO1-30	TC2 + CO1-50
Quantity of ovens possible to connect to one controller TC2	2	2
Temperature tuning range	RT-200°C	RT-200°C
Maximum crystals dimensions	12 x 12 x 30 mm	12 x 12 x 50 mm
Temperature turning step	± 0.05 °C	± 0.05 °C
Accuracy	± 0.5 °C	± 0.5 °C
Long-term stability	± 0.05 °C	± 0.05 °C
Control interfaces	LAN, USB	LAN, USB
Powering requirements	90 – 264 V, 47 – 63 Hz	90 – 264 V, 47 – 63 Hz
Power consumption	< 50 W	< 50 W
Dimensions	Ø52×52 mm	Ø52×72 mm
