Variant specifications
| Product | Value |
|---|---|
| Width | 15 mm |
| Height | 15 mm |
| Thickness | 7 mm |
| Applications | SHG |
| Pump Wavelength | 532 nm |

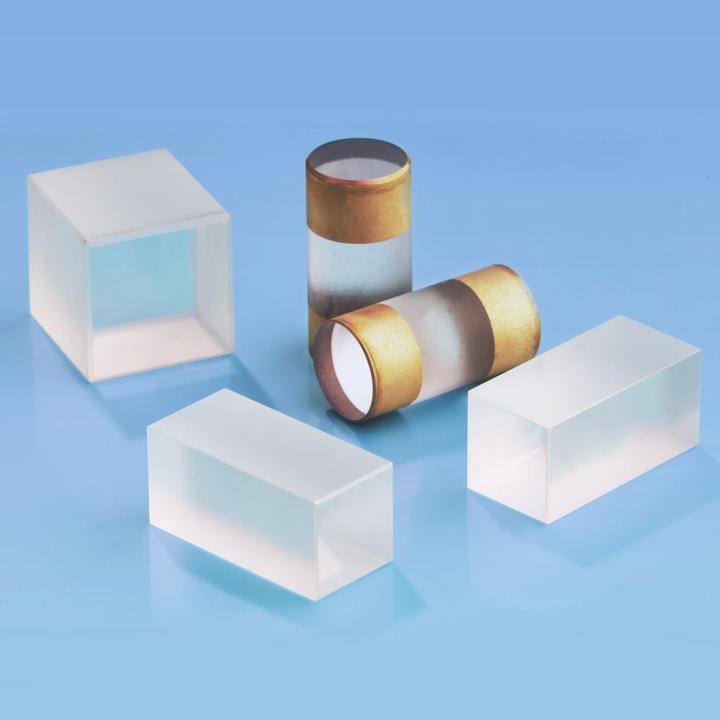

| Material | KDP |
| Product Type | T1 |
| Theta Angle | 76.5 Deg |
| Phi Angle | 45 Deg |
| TWD, fringes @633 nm | -(0.5) |
| Parallelism, angle | 0 - 30 sec |
| Surface 1 | Value |
|---|---|
| Surface quality, MIL | 20-10 |
| Clear Aperture, % | > 90 % |
| Surface 1, Wavelength 1 | Value |
|---|---|
| Coating | AR |
| Wavelength | 532 nm |
| Reflectivity, % | < 0.2 % |
| Surface 2 | Value |
|---|---|
| Surface quality, MIL | 20-10 |
| Clear Aperture, % | > 90 % |
| Surface 2, Wavelength 1 | Value |
|---|---|
| Coating | AR |
| Wavelength | 266 nm |
| Reflectivity, % | < 0.2 % |
| Side Surface 1 | Value |
|---|---|
| Perpendicularity | 0 - 5 min |
