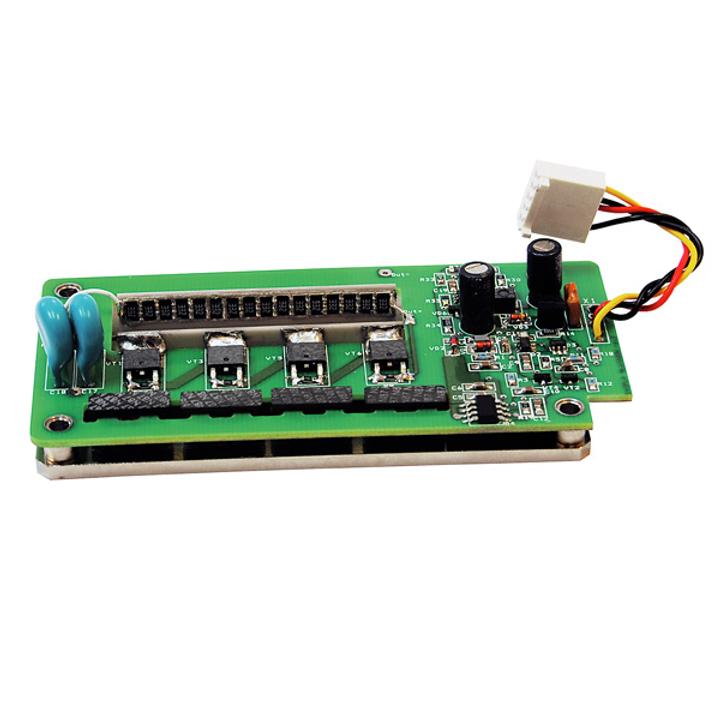

DQ High Repetition Rate Pockels Cell Driver for Q-Switching SKU: DQ-100-4
Features: • Pulse repetition rate up to 100 kHz • Fast HV rise time <7 ns for 4 kV pulse. • HV pulse amplitude up to 4 kV DQ Series high repetition rate Pockels cell driver has been designed for use in mode-locked lasers for cavity dumping or for cavity Q-switching of…
Variant specifications
| Specification | Value |
|---|---|
| Max HV pulse amplitude | 4.0 kV |
Shared product specifications
These specifications apply across the DQ High Repetition Rate Pockels Cell Driver for Q-Switching product family.
Specifications
| Maximum high voltage (HV) pulse amplitude | 4.0 kV |
| Polarity | Positive |
| HV pulse rise time | < 7 ns |
| HV pulse fall time | ~2 µs 1) |
| HV pulse duration | 180 ns 1) |
| Maximum HV pulse repetition rate | 100 kHz |
| HV pulse jitter | < 0.5 ns |
| External triggering pulse duration requirement | 100 - 1000 ns |
| External triggering pulse amplitude requirement | 3-5 V (50 Ω) |
| External triggering pulse rise & fall time | < 10 ns |
| HV pulse delay | 35–40 ns |
| External powering requirements: high voltage supply low voltage DC supply | 0–4.0 kV, 9 mA max 2) 9–24 V, 500 mA max 2) |
| Operating temperature | 0–35 °C 3) |
| Size | 104 × 52 × 25 mm |
