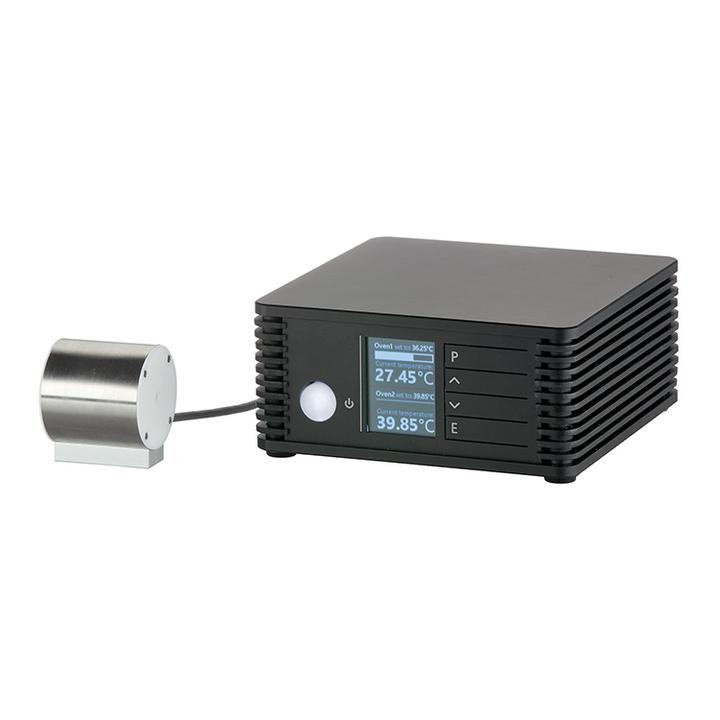

Temperature Controller TC1 with Crystal Oven CO1 From Stock SKU: CO1-30-4/4
TC1 and CO1 is high temperature set (up to 200 °C) consisting of thermocontroller TC1 and crystal oven CO1. TC1 has two independent outputs and can control two CO1-30 ovens simultaneously or one CO2-50 oven. Trough RS232 computer interface it can be controlled from personal…
Variant specifications
| Specification | Value |
|---|---|
| Description | Oven for crystal with aperture 4 × 4 mm, length up to 30 mm |
Shared product specifications
These specifications apply across the Temperature Controller TC1 with Crystal Oven CO1 From Stock product family.
Specifications
| SPECIFICATIONS | TC1+CO1-30 |
|---|---|
| Quantity of ovens possible to connect to one controller TK1 | 2 |
| Temperature tuning range , °C | RT-200 |
| Maximum crystals dimensions, mm | 12x12x30 |
| Sealing (optional) | FS windows |
| Accuracy °C | ± 0.5 |
| Long-term stability °C | ± 0.1 |
| Resolution °C | 0.1 |
| Powering requirements | 90-264 V 47...66 Hz |
| Power consumption, W | 45 |
| Sensor type | PT1000 |
| Output connector | DB9 |
| Serial interface | RS232 |
| (DB 9) | (DB 9) |
| Dimensions, W×H×D, mm | Ø52×52 |
