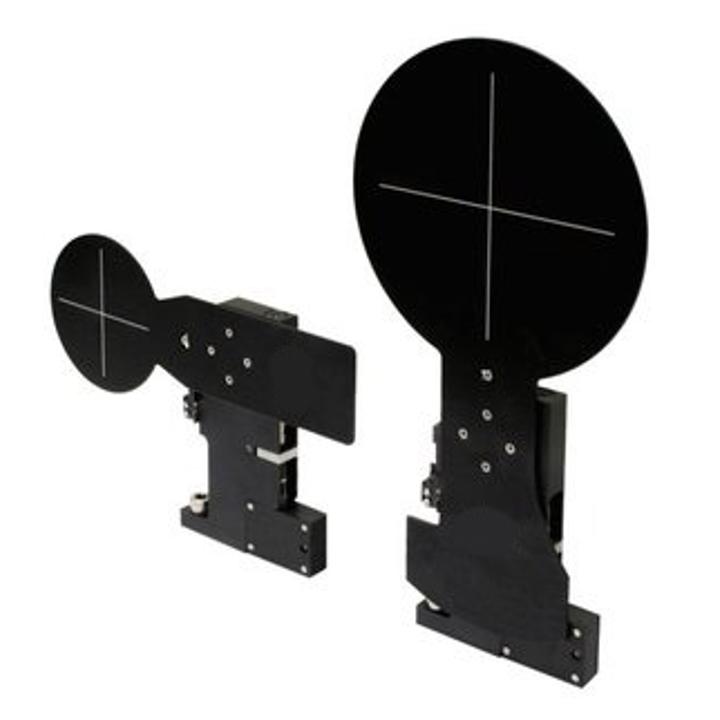

Laser Beam Shutters SKU: 990-0912+CP
• Ultra thin (only 14.7 mm) design • 25 - 100 mm diameter beam shutters available on request Beam shutters are used to block laser beam path and to prevent equipment or eyes from taking damage due to unpredicted circumstances or laser malfunction. For instance, laboratory doors…
Variant specifications
| Specification | Value |
|---|---|
| Size | ø 120 mm |
| Description | with controller & power supply |
Shared product specifications
These specifications apply across the Laser Beam Shutters product family.
| Turning angle | 90° |
| Turning time | 1 sec |
| Cable | 1.6 m length |
| Motor connector | DB9(M) |
| DC Motor size | ⌀10 mm |
| Gear | 4:1 |
| Power | 12 V, 0.176 A |
| Limit switches | 2 pc mechanical |
| Recommended controller | 980-1045 |
| Recommended power supply | PS12-1.5-4 |
Classification
| Type | beam-dump |
Variant files
Technical drawings, models and data files for SKU 990-0912+CP.
