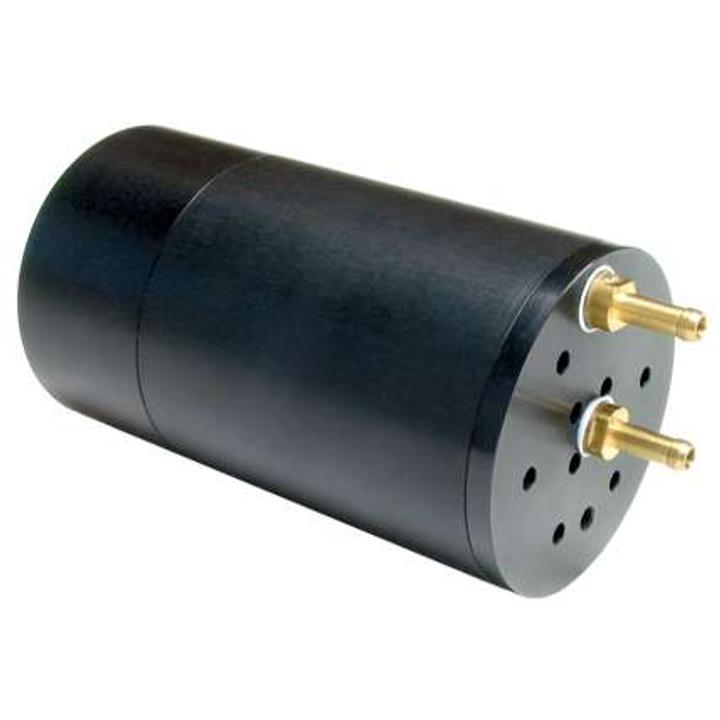

Water-Cooled Beam Dump 990-0820 SKU: 990-0820
Water-Cooled Beam Dump 990-0820 blocks a CW or a pulsed laser beam. It is mainly intended for beams 2 inch wide. Water absorbs much energy. So, the dump is best suited for beams of up to 1 kW. The wavelength range is from 0.1 to 30 µm. Even if the non-reflective coating is…
Variant specifications
| Specification | Value |
|---|---|
| Aperture | ø 66 mm |
| Max power | 1 kW |
| Mounting | M6x6 |
Shared product specifications
These specifications apply across the Water-Cooled Beam Dump 990-0820 product family.
| Wavelength range | 0.1-30 µm |
| Max. Handling power | 1 kW |
| Max. Energy | 50 J (20 Hz) |
| Acceptance aperture | 66 mm (2.59'') |
| Laser type | pulsed, CW |
Classification
| Type | beam-dump |
Product brochures
Shared documentation for the complete product family.
