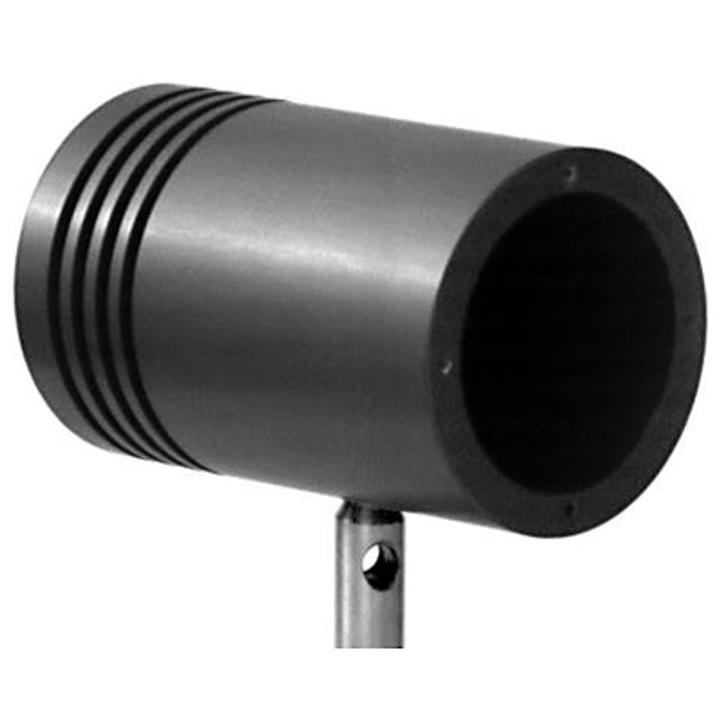

Air-Cooled Beam Dumps 990-0800 SKU: 990-0801
Air-Cooled Beam Dumps are designed to block continuous wave (CW) or pulsed laser beams. These beam traps can effectively absorb beams with optical power of up to 50 W. They feature a wide wavelength range and can be operated with lasers from 0.1 to 30 µm. Convection cooled…
Variant specifications
| Specification | Value |
|---|---|
| Aperture | ø 20 mm |
| Max power | 5 W |
| Mounting | M4x6 |
Shared product specifications
These specifications apply across the Air-Cooled Beam Dumps 990-0800 product family.
MOUNTING SUGGESTIONS
| Rods / posts (M6 thread) | Standard rods, 820-0010 & 820-0020 series |
| Rod / post holder | Rod Holders with Base Adapters, 820-0051 series |
| Other | Table Clamps, 820-0125 |
| Wavelength range | 0.1-30 µm |
| Laser type | pulsed, CW |
Classification
| Type | beam-dump |
