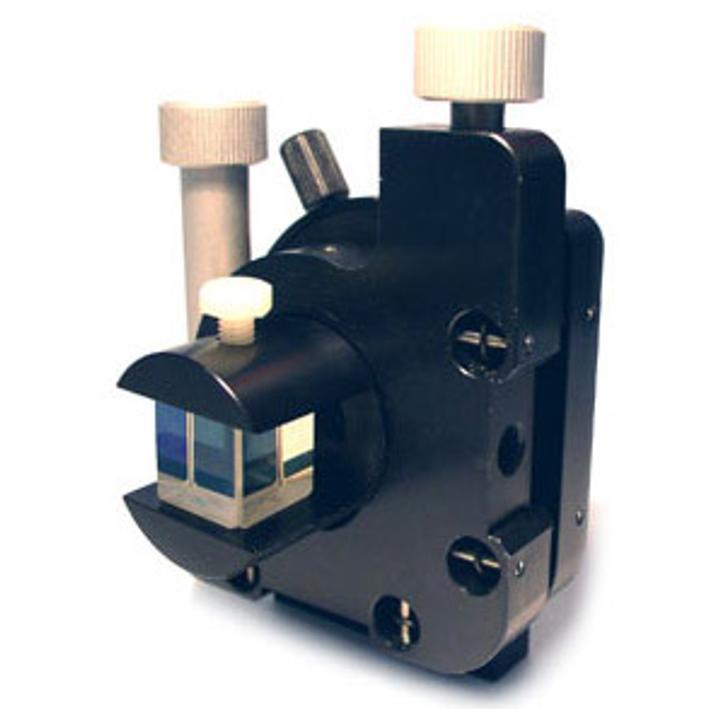

Continuously Variable Attenuator / Beamsplitter 990-0060 SKU: 990-0060-11VIS
• Divides laser beam into two beams of manually adjustable intensity ratio • Convenient 90° angle between reflected and transmitted beams • Negligible beam deviation • Large dynamic range Continuously Variable Attenuators / Beamsplittesr are designed for down to 100 fs laser…
Variant specifications
| Specification | Value |
|---|---|
| Central wavelength | 450-680 nm |
| Extinction ratio | > 200:1 |
| Laser Damage Threshold | 1 J/cm² @ 532 nm, 10 Hz, 10 ns |
Shared product specifications
These specifications apply across the Continuously Variable Attenuator / Beamsplitter 990-0060 product family.
| Clear aperture | 11 mm |
| Extinction ratio for broadband attenuators for attenuators designed for specific laser wavelength | TS / TP < 1:200 TS / TP < 1:500 |
| Weight | 0.16 kg |
