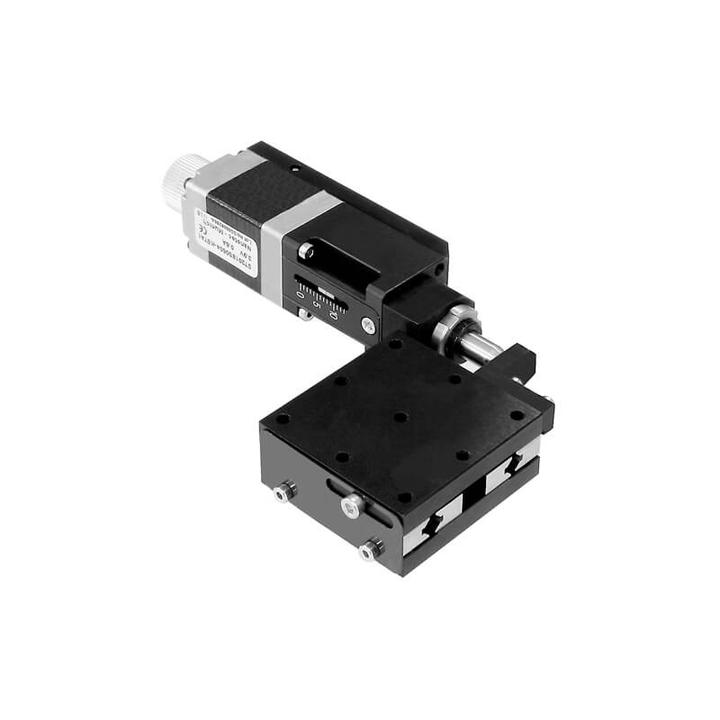

Motorized Translation Stage 970-0080 SKU: 970-0080
• Compact design • Precise movement • 13 mm travel range • X-Y-Z direct stacking • Black anodized aluminium • Motorized Actuator 970-0050-15 • Lockable • Angle bracket 810-0112 is used for vertical mounting
Variant specifications
| Product | Value |
|---|---|
| Product Type | Motorized Translation Stage |
| Mount Material and Coating | Black Anodised Aluminum |
| Travel Range | 13 mm |
| Possible Axis Configurations | X |
| Weight | 0.25 kg |
| Mounting Thread | M3 |
| Width | 38.3 mm |
| Length | 124 mm |
| Height | 21 mm |
| Travel Resolution | 1.25 µm |
| Lead Screw Pitch | 0.25 mm |
