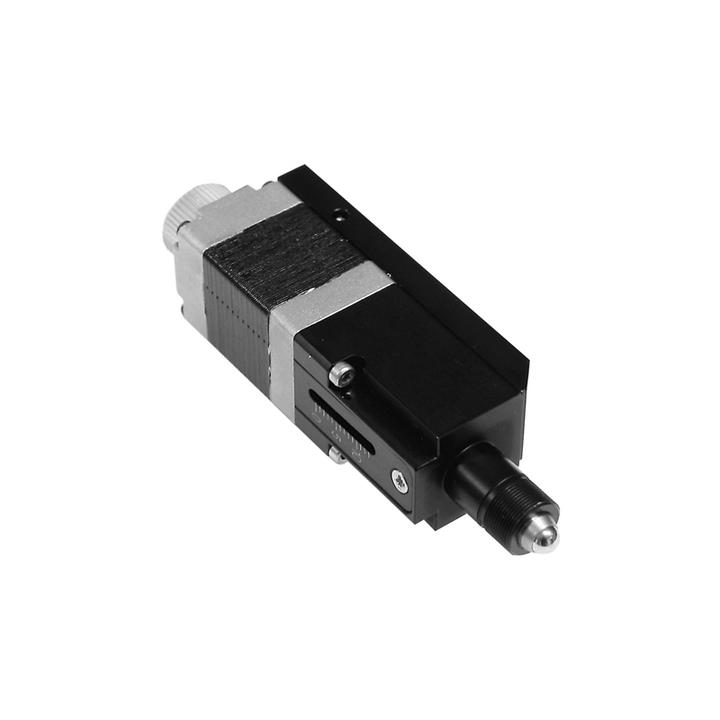

Compact Motorized Actuator 970-0060 SKU: 970-0060
• Reduced size • Manual drive with a knob • Limit switch: optoelectronic couple • Step motor controllers (USB, RS232, Manual) are offered separately • Optional power supplies for higher voltages/speeds are available
Shared product specifications
These specifications apply across the Compact Motorized Actuator 970-0060 product family.
| Travel range | 8 mm |
| Resolution | 1.25 µm |
| Lead screw pitch | 0.25 mm |
| Nominal force | 30 N |
| Tip shape | Round. Flat on request. |
| Weight | 0.10 kg |
| Cable | Integrated, 1.2 m length |
| Motor connector | HDB15(M) |
| Stepper motor | 20 |
