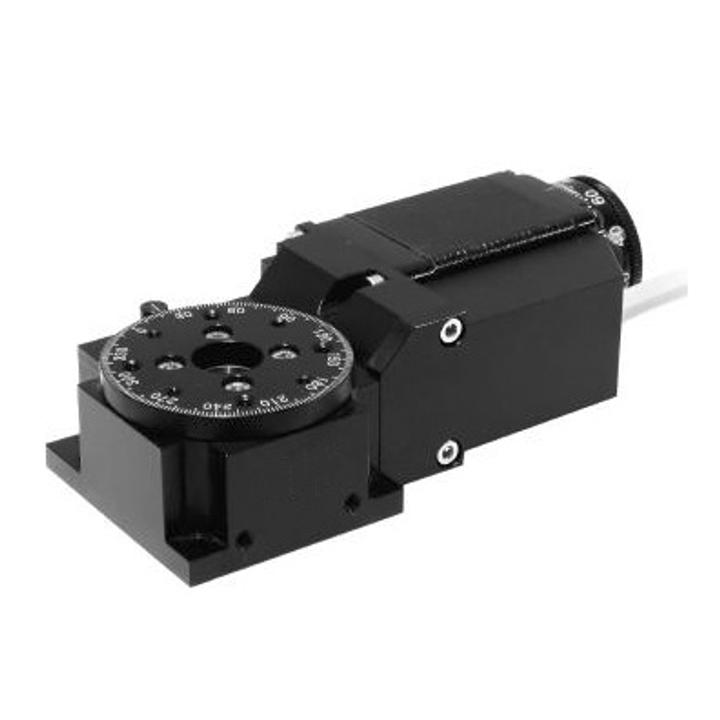

Motorized Rotation Stages 960-0170 SKU: 968-0170
• 360° rotation with 0.9 arcmin resolution. • Mini Motorized Rotation Stage with Vacuum compatible stepper motor 960-0170V is available. • Encoders or Revolution sensors are available on request. More information
Variant specifications
| Specification | Value |
|---|---|
| Description | with stepper motor 28 |
Shared product specifications
These specifications apply across the Motorized Rotation Stages 960-0170 product family.
| Model | 968-0170 | 968-0170S | 960-0170 |
|---|---|---|---|
| L, mm | 111 | 98 | 92.5 |
| m, mm | 54 | 41 | 36 |
| Rotation range, deg | 360 | 360 | 360 |
| Resolution in full step | 0.9 arcmin (0.015°) | 0.9 arcmin (0.015°) | 0.9 arcmin (0.015°) |
| Uni-Directional Repeatability | 0.4 arcmin | 0.4 arcmin | 0.4 arcmin |
| Bi-Directional Repeatability | 1.6 arcmin | 1.6 arcmin | 1.6 arcmin |
| Max. rotation speed | 75° / s (36V) / 30° / s (12V) | 75° / s (36V) / 30° / s (12V) | 75° / s (36V) / 30° / s (12V) |
| Wobble | 1 arcmin | 1 arcmin | 1 arcmin |
| Eccentricity | 10 µm | 10 µm | 10 µm |
| Load capacity / Horizontal / Radial / Torque | 4 kg / 1.5 kg / 0.5 Nm | 4 kg / 1.5 kg / 0.35 Nm | 3 kg / 1.5 kg / 0.15 Nm |
| Cable | integrated, 1.6 m length | integrated, 1.6 m length | integrated, 1.6 m length |
| Motor connector | HDB15(M) | HDB15(M) | HDB15(M) |
| Stepper motor | 28 | 28S | 20 |
| Mechanical home reference switch | 1, pushed is "closed" | 1, pushed is "closed" | 1, pushed is "closed" |
| Motorized Rotation Stages - Solidworks file | |
| Motorized Rotation Stages - DWG file | |
| Motorized Rotation Stages - STEP file |
