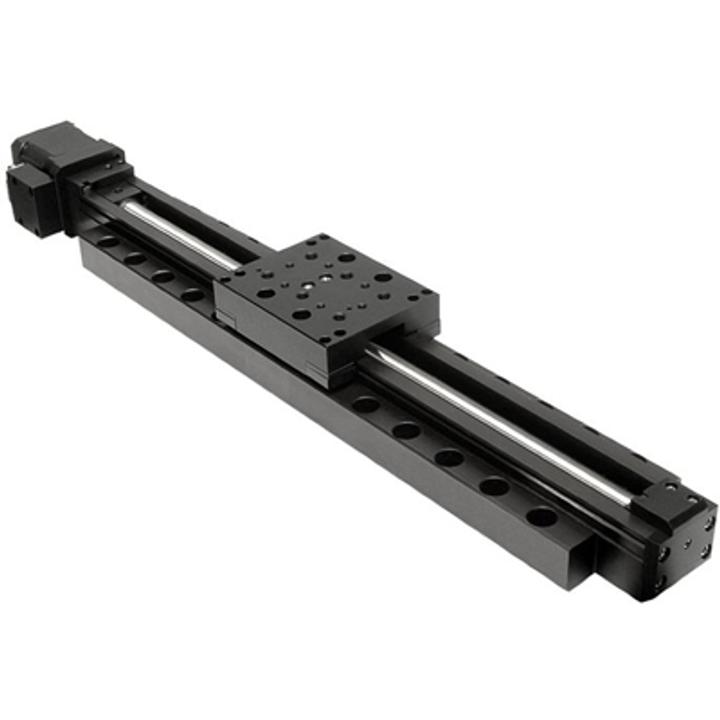

Motorized Delay Line 960-0100 SKU: 960-0100SM
• 300 mm travel range • Steel rail design. Stability and rigidity ensured • 2.5 µm nominal resolution • Recirculating ball modules are incorporated in the platform • Stepper motor with 200 steps per revolution Motorized Delay Line 960-0100 provides precision path delays of up…
Variant specifications
| Product | Value |
|---|---|
| Product Type | Motorized Translation Stage |
| Travel Range | 300 mm |
| Possible Axis Configurations | X |
| Load Capacity Horizontal | 10 kg |
| Load Capacity Vertical | 3 kg |
| Maximum Travel Speed | 50 mm/s |
| Weight | 4.55 kg |
| Motor Connector | RS232 |
| Width | 125 mm |
| Length | 507.5 mm |
| Height | 45 mm |
| Lead Screw Pitch | 2 mm |
