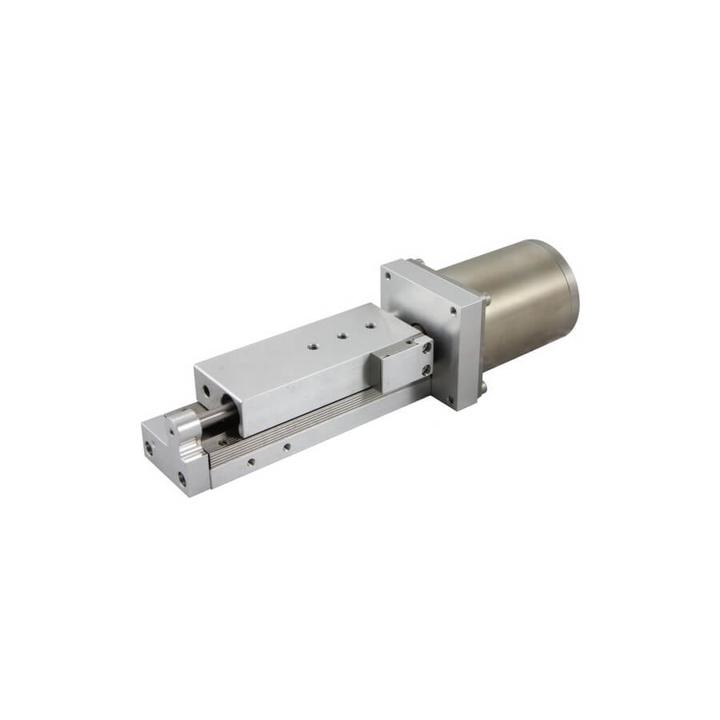

Narrow Motorized Translation Stage with Vacuum Compatible Stepper Motor 960-0050V SKU: 960-0050V
Vacuum Compatible Motorised Linear Stage 960-0050V is a newly developed stage. It boasts a possibility to operate in any orientation, which means that the stage can be hung upside-down or be operated vertically with motor facing upward or downward. Durability of stage was taken…
Shared product specifications
These specifications apply across the Narrow Motorized Translation Stage with Vacuum Compatible Stepper Motor 960-0050V product family.
| Travel range | 50 mm |
| Lead screw pitch | 0.25 mm |
| Resolution in full step * | 1.25 µm |
| Max. speed * | 2.5 mm / s |
| Load capacity / Horizontal / Vertical | 3 kg / 1 kg |
| Fleuroplastic cable | integrated, 2m length |
| Motor connector | HDB15(M) |
| Motor | VSS42 |
| Weight | 0.55 kg |
| Assemblies / X-Y / Z | 810-0250-01V / 810-0150-01V |
