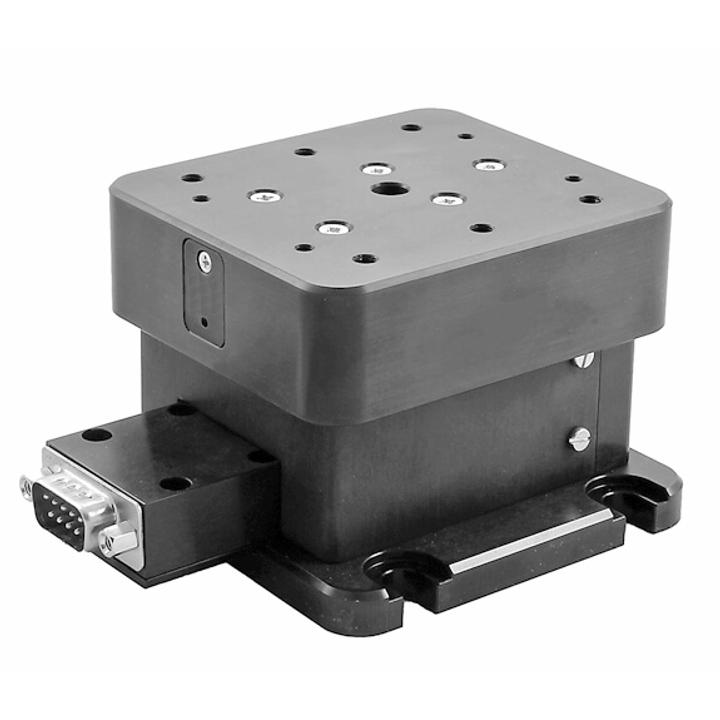

Motorized Z Stage 940-0212 SKU: 940-0212
Compact Motorized Z Stage provides 13 mm travel range. The stages ideally fits many motorized linear stages. 960-0170 series motorized rotation stages can be directly mounted on the top of 940-0212.
Shared product specifications
These specifications apply across the Motorized Z Stage 940-0212 product family.
| Travel range | 13 mm |
| Resolution in full step | 5 μm |
| Resolution in 1 / 8 step | 0.625 μm |
| Lead screw pitch | 1 mm |
| Maximum speed | 20 mm / sec |
| Load capacity | 4 kg |
| Unidirectional repeatability | 1 μm |
| Bi-directional repeatability | 2 μm |
| Motor | 2 phase stepper actuator |
| Optocoupler end limit switches | 2 |
| Switch polarity | pushed is open |
| Motorized Z Stage - Solidworks file | |
| Motorized Z Stage - DWG file | |
| Motorized Z Stage - STEP file |
