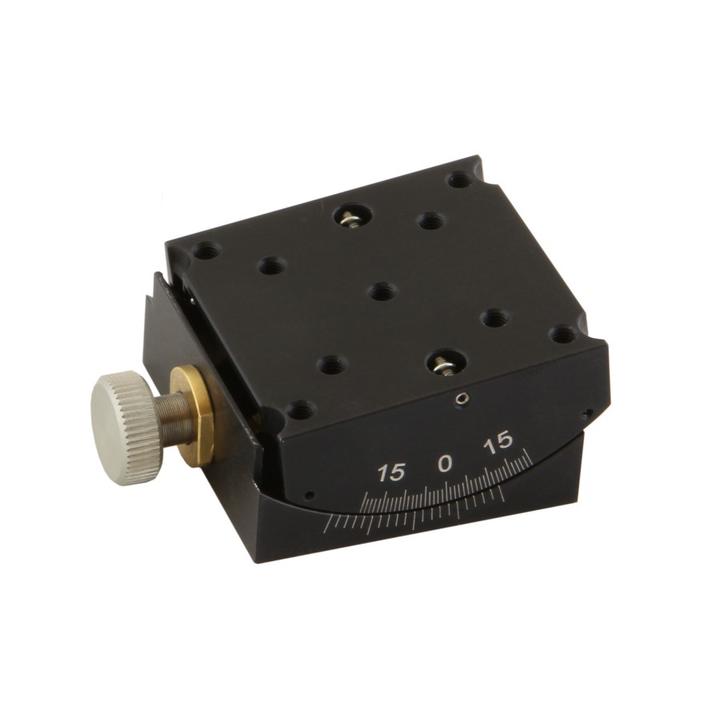

Small Goniometer 860-0180 SKU: 860-0180
• Compact • High precision • Rotation about virtual point • 15 mm virtual point height
Shared product specifications
These specifications apply across the Small Goniometer 860-0180 product family.
| Rotation range | ±15° |
| Reading resolution | 0.1° (vernier scale) |
| Drive geometry | Lever (tangential) |
| Driving screw pitch | 0.25 mm |
| Transmission ratio | 0°27'59"...0°30'45"(the ratio is per revolution) |
| Ratio decimal | 0.4665°...0.5126° (the ratio is per revolution) |
| Horizontal load capacity | 1 kg |
| Material | aluminium |
| Finish | black anodized |
| Small Goniometer - DWG file | |
| Small Goniometer - STEP file |
Classification
| Type | translation|rotation |
