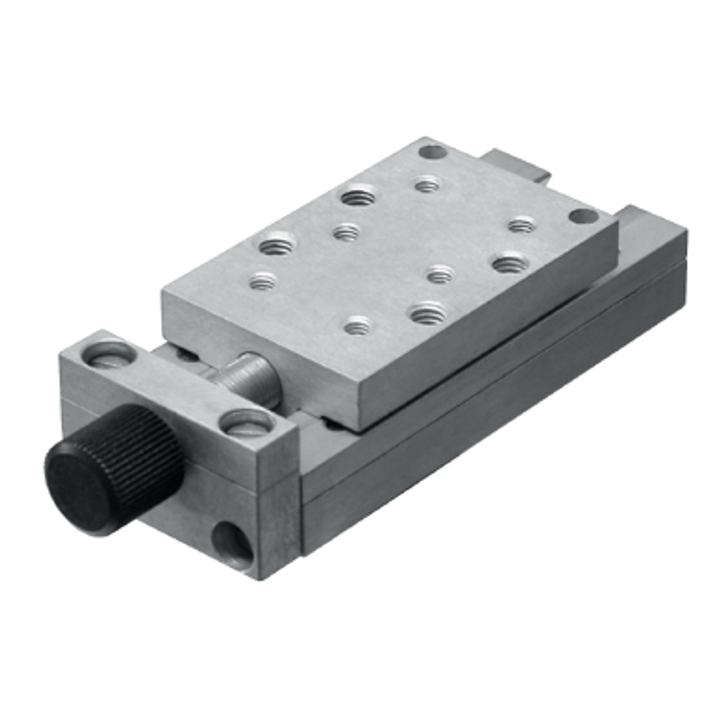

Non-Magnetic Linear Translation Stage 860-0056 SKU: 860-0056BP
• Precision non-magnetic translation stage • Only non-magnetic materials (brass, bronze, aluminium) are used for stage construction • X-Y-Z configurations available Fine screws of non-magnetic linear translation stages have pitch of 0,5 mm. Non-magnetic linear stages 860-0056…
Variant specifications
| Specification | Value |
|---|---|
| Description | Base Plate |
Shared product specifications
These specifications apply across the Non-Magnetic Linear Translation Stage 860-0056 product family.
| Travel range | 20 mm |
| Sensitivity | 5 µm |
| Screw backflash | 0.02 mm |
| Load capacity: / horizontal / vertical | 2 kg / 1 kg |
| Non-Magnetic Translation Stage - DWG file | |
| Non-Magnetic Translation Stage - STEP file |
Classification
| Type | translation|rotation |
