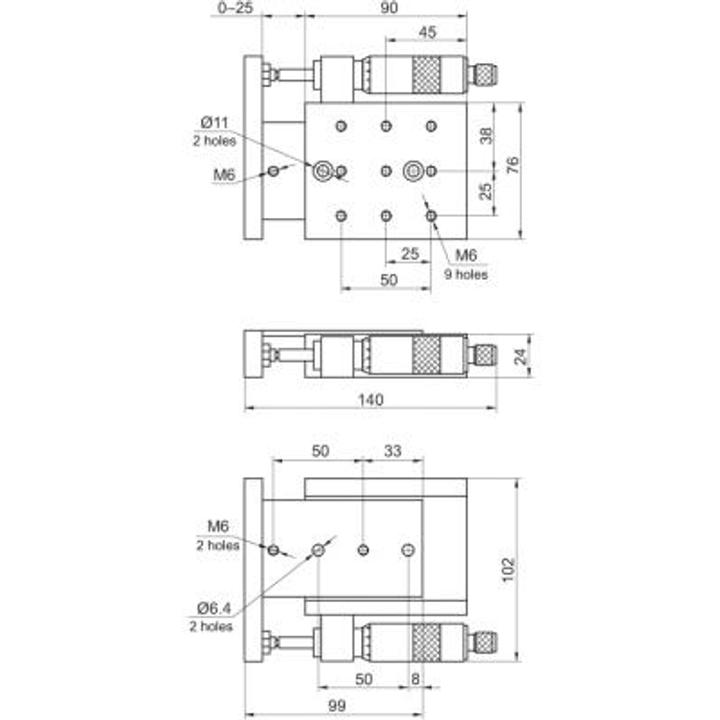

Precision Translation Stages 860-0020, -0030, -0040, -0050 SKU: 860-0020
Model 860‑0020, 860‑0030, 860‑0040, 860‑0050 precision translation stages provide smooth and precise platform movement along one axis. They feature precision ball bearing construction, with hardened balls rolling between opposing pairs of hardened, polished steel rods. Carefully…
Variant specifications
| Specification | Value |
|---|---|
| Clear aperture | no |
| Drive position | side |
| Weight | 1.72 kg |
Shared product specifications
These specifications apply across the Precision Translation Stages 860-0020, -0030, -0040, -0050 product family.
Specifications
| Max. stage travel | 25 mm |
| Sensitivity | 2 µm |
| Reading accuracy | 10 µm |
| Angular deviation (any axis) | ± 200 µrad |
| Max. straightness | ± 3 µm |
| Max. loading capacity | 30 kg |
Variant files
Technical drawings, models and data files for SKU 860-0020.
Product brochures
Shared documentation for the complete product family.
