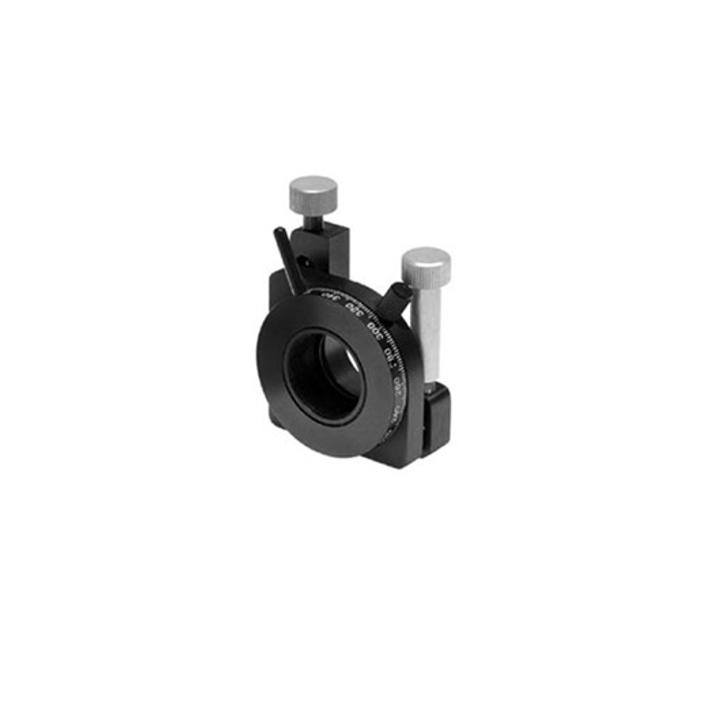

Adjustable Polarizer Holder of Side Drive 840-0195 SKU: 840-0195
• Dimensions most compact among 1” optics mounts • Both tilt and tip are controlled from aside the optical path • Original stabilized L-shaped flat spring • Fine adjustment screws with 0.25 mm pitch • Hardened inserts under adjusters • Accepts optics 25.4 mm (1”) in diameter •…
Shared product specifications
These specifications apply across the Adjustable Polarizer Holder of Side Drive 840-0195 product family.
| Tilt / tip range | ±2° |
| Sensitivity | 3 arcsec |
| Rotation range | 360° |
| Scale gradation | 2° |
| Optics accepted / diameter / thickness | ≤Ø 25.4 mm / ≤10.5 mm |
| Clear aperture | 23 mm |
| 840-0195 Adjustable Polarizer Holder of Side Drive - DWG file | |
| 840-0195 Adjustable Polarizer Holder of Side Drive - STEP file |
