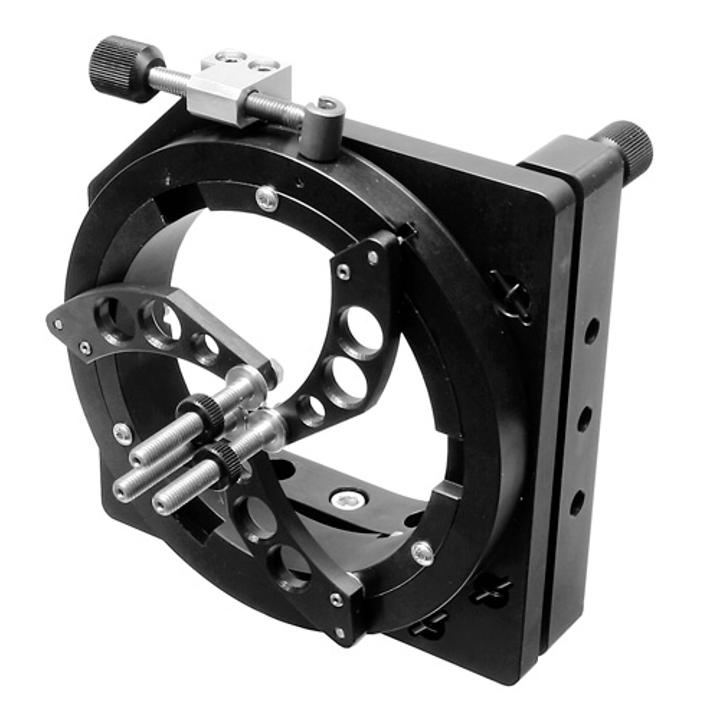

Self-Centering Large Aperture Optical Mount 840-0007 SKU: 840-0007-10X
• Tilt/tip range ±2° • More linear axes are possible on request • For optics ranging between 5-100 or 5-150 mm in diameter 840-0007 Self-Centring Optical Mounts are designed for mounting optics of a wide range of different diameters. These mounts are especially handy for…
Variant specifications
| Specification | Value |
|---|---|
| Description | Set of 840-0007-10 Mount, 860-0052 Linear Translation Stage and Base Plate |
| Group | Sets of Optical Mounts with Stages for Linear Translation |
Shared product specifications
These specifications apply across the Self-Centering Large Aperture Optical Mount 840-0007 product family.
| Fine screw thread | M6x0.25 |
| Optics diameter range: | Optics diameter range: |
| 840-0007-10 | 5-100 mm |
| 840-0007-15 | 5-150 mm |
| XY tilt / tip range | ± 2 ° |
| X axis translation range (for 840-0007-10X) | 25 mm |
| Self-Centering Large Aperture Optical Mount - STEP file |
