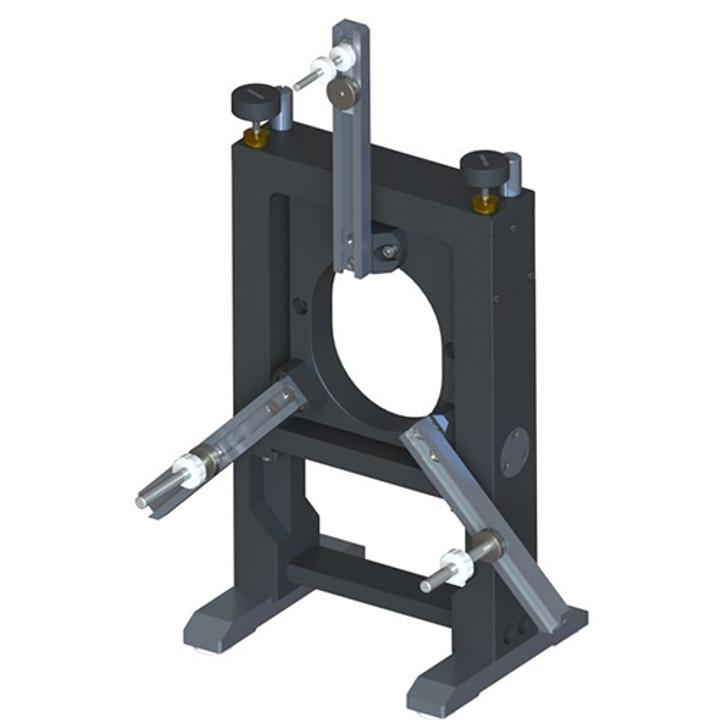

Precise Adjustable Kinematic Mount for Large Optics 840-0005-05 SKU: 840-0005-05
840-0005-05 Kinematic Mount is a modification of the standard version of the . This model is designed for even larger optical components with diameter up to 500 mm, while retaining mechanical parameters of the standard version. • Long-term stability • Adjustment screw thread…
Shared product specifications
These specifications apply across the Precise Adjustable Kinematic Mount for Large Optics 840-0005-05 product family.
| Fine screw thread | M6x0.35 |
| Horizontal rotation range | ±1.5° |
| Vertical yaw range | ±1.5° |
| Sensitivity | 0.5 arcsec |
| Load capacity | 10 kg |
| Compatible with optical elements: | Compatible with optical elements: |
| Diameter | 300÷500 mm |
| Thickness | up to 52 mm |
| Weight | 11 kg |
