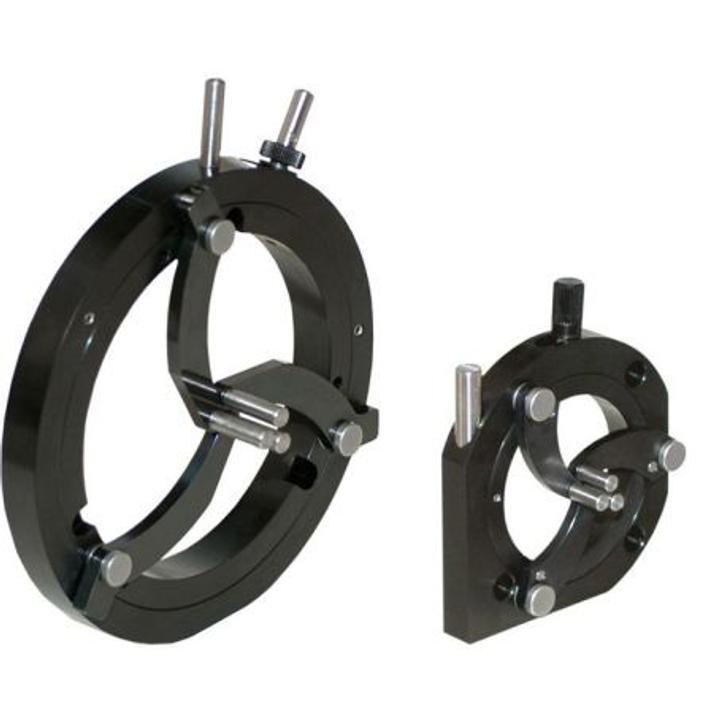

Self-Centering Lens/Optics Mounts 830-0025 SKU: 830-0025-40
Self-Centering Lens/Optics Mounts reliably centres and securely holds round optics and cylindrical objects. This device is particularly valuable when lenses of different diameters are being used interchangeably, as repeated centering at constant height is necessary. •…
Variant specifications
| Specification | Value |
|---|---|
| Description | for ø6 - ø40 mm optics |
Shared product specifications
These specifications apply across the Self-Centering Lens/Optics Mounts 830-0025 product family.
| Self-Centering Lens / Optics Mount - Solidworks file | |
| Self-Centering Lens / Optics Mount - DWG file | |
| Self-Centering Lens / Optics Mount - STEP file |
Classification
| Type | optical-mount |
Variant files
Technical drawings, models and data files for SKU 830-0025-40.
Product brochures
Shared documentation for the complete product family.
