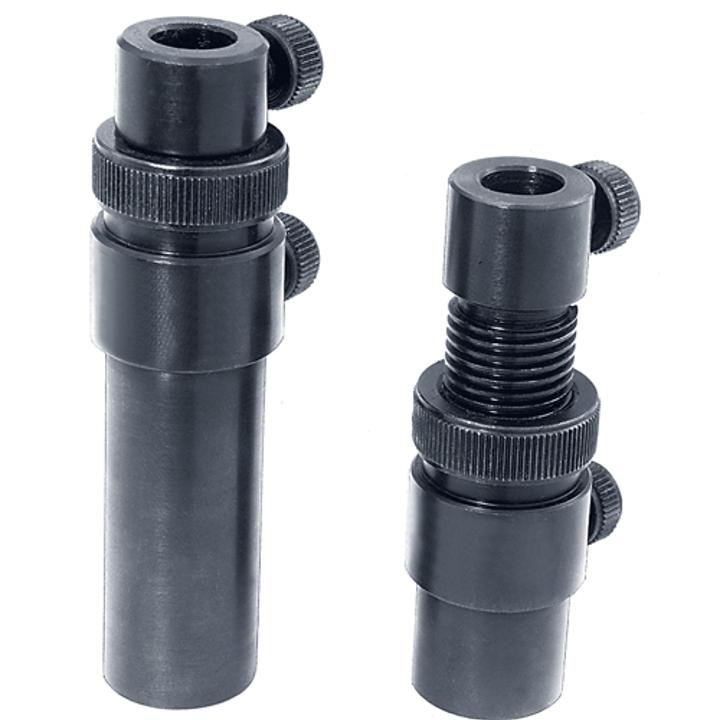

Rod Translators 820-0040 SKU: 820-0040-02
The model 820-0040 Rod Translators provide stable mounting, vertical translation and fixing of model 820-0010 Standard Rods in place. One round turn of knurled collet produces 2 mm linear translation of rod with no rotation. Both the rod and translator bore are double-bored to…
Variant specifications
| Product | Value |
|---|---|
| Product Type | Rod Translator |
| Height | 67 mm |
| Diameter | 29 mm |
| Mount Material and Coating | Black Oxidized Steel |
| Weight | 0.22 kg |
| Mounting Thread | M6 |
Product brochures
Shared documentation for the complete product family.
