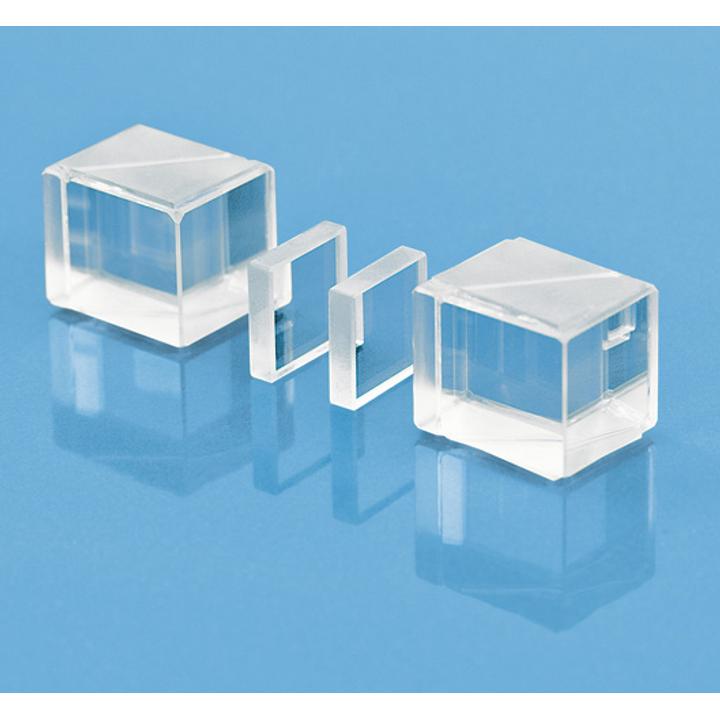

BaF2 Optical Crystals for Cross Polarized Wave Generation SKU: 540-7125
Cross-Polarized Wave (XPW) generation is a nonlinear third order process during which fundamental and generated waves have the same frequency; however, generated wave is perpendicularly polarized to pump wave polarization. Phase matching occurs over large bandwidth in XPW…
Variant specifications
| Specification | Value |
|---|---|
| Orientation | [011] |
| Thickness | 2.5 mm |
| Size | 10x10 mm |
| Group | Unmounted BaF2 Optical Crystals |
Shared product specifications
These specifications apply across the BaF2 Optical Crystals for Cross Polarized Wave Generation product family.
Specifications
| Material | BaF₂ |
| Surface quality | 60-40 scratch & dig (MIL-PRF-13830B) |
| Clear aperture | 90% of diameter |
| Diameter tolerance | +0.0 -0.25 mm |
| Thickness tolerance | 0.2 mm |
| Parallelism | 3 arcmin |
| Flatness | λ / 2 @ 633 nm |
| BaF₂ | CaF₂ | CVD-Diamond | |
|---|---|---|---|
| Orientation | h-cut [011] | h-cut [011] | z-cut [001] |
| Length, mm | 2 | 2 | 1.2 |
| n | 1.464 | 1.426 | 2.383 |
| (10⁻²² m² / V²) | 1.53 | 0.94 | 11 |
| σ | -1.2 | -0.6 | -1.8 |
| GVD (fs² / mm) | -6 | -27 | 63 |
Physical Properties
| Crystal type | cubic |
| Density, g / cm³ | 5.27 |
| Melting point, °C | 1525 |
| Refractive index @ 0.265 µm | n = 1.51217 |
| Refractive index @ 10.3 µm | n = 1.39636 |
| Transmission band, µm | 0.135-15 |
Classification
| Line | femtoline |
