Broadband Thin Film Laser Polarizers (at 70°) SKU: 420-1643T12BBi70

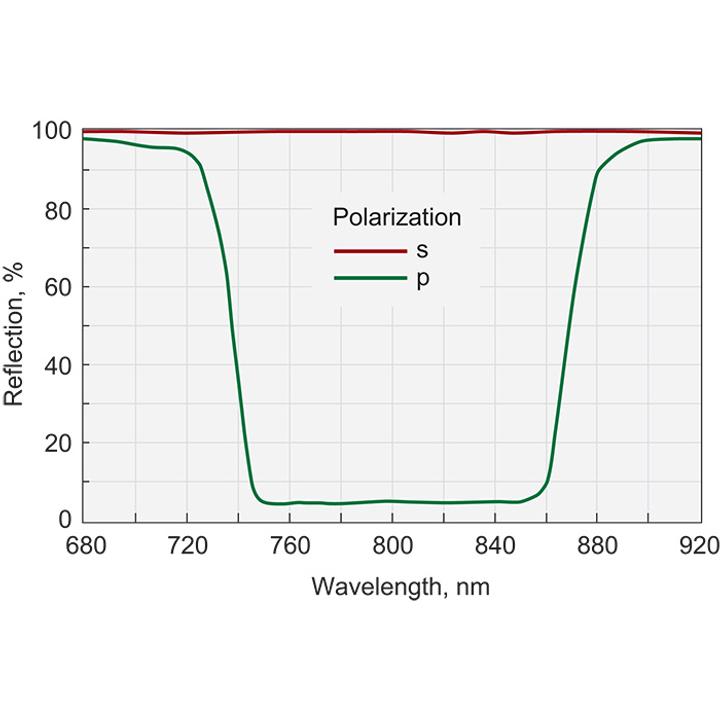

Broadband thin film polarizers separate the s- and p-polarization components in broad region at 70° angle of incidence (AOI). These polarizers are designed to be used in high energy laser systems, typically as extracavity attenuators for femtosecond lasers. Polarizers are made…
Variant specifications
| Product | Value |
|---|---|
| Shape Type | Rectangular |
| Center Thickness | 12 mm |
| Center Thickness Upper Tolerance | 0.2 mm |
| Center Thickness Lower Tolerance | -0.2 mm |
| Material Type | FS |
| Material | UVFS |
| Parallelism, angle | 0 deg 0 min 0 sec - 0 deg 0 min 30 sec |
| Surface 1 | Value |
|---|---|
| Surface Shape | Plano |
| Surface quality, grind or polish | Polished |
| Power and Irregularity, fringes @633 nm | 0(0.2) |
| Clear Aperture, % | 85 % - 100 % |
| Surface 1, Wavelength 1 | Value |
|---|---|
| Coating | Rs/Tp |
| Wavelength | 333 nm - 353 nm |
| Reflectivity, % | 99.5 % - 100 % |
| Transmission, % | 95 % - 100 % |
| AOI (angle of incidence) | 70 deg 0 min 0 sec - 70 deg 0 min 0 sec |
| AOI Lower Tolerance | -2 deg 0 min 0 sec |
| AOI Upper Tolerance | 2 deg 0 min 0 sec |
| Surface 2 | Value |
|---|---|
| Surface Shape | Plano |
| Surface quality, grind or polish | Polished |
| Power and Irregularity, fringes @633 nm | 0(0.2) |
| Clear Aperture, % | 85 % - 100 % |
| Surface 2, Wavelength 1 | Value |
|---|---|
| Coating | AR |
| Wavelength | 333 nm - 353 nm |
| Reflectivity, % | 0 % - 0.1 % |
| AOI (angle of incidence) | 70 deg 0 min 0 sec - 70 deg 0 min 0 sec |
