Pellin-Broca Prisms SKU: 325-1215

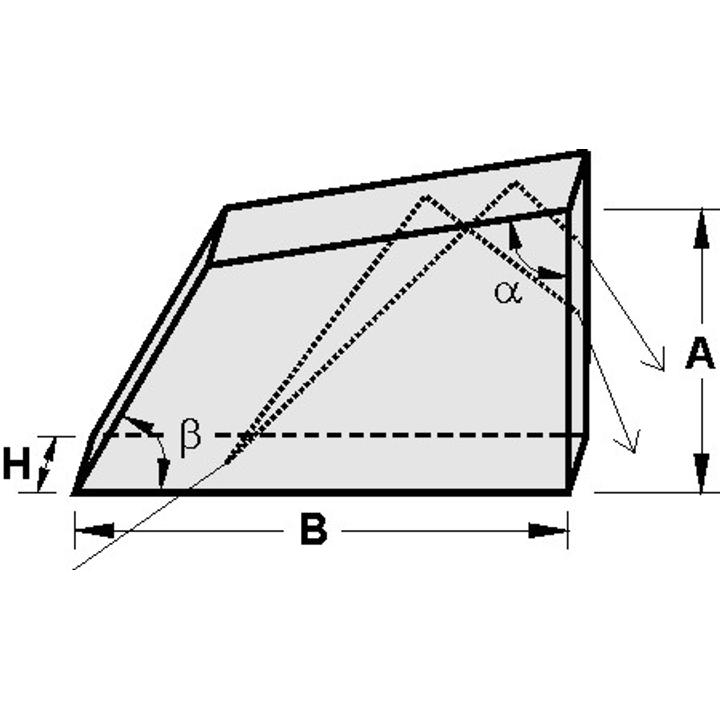

• Extremely small loss for p-polarized beam • Separated by wavelength light is conveniently turned by 90° angle with minimum deviation • UVFS prisms provide 1.26° separation between 532 and 1064 nm In a Pellin-Broca prism, an ordinary dispersing prism is split in half along…
Variant specifications
| Product | Value |
|---|---|
| Design Wavelength Range | 546.1 nm - 546.1 nm |
| Side A length | 15 mm |
| Side A length Lower Tolerance | -0.2 mm |
| Side A length upper tolerance | 0.2 mm |
| Side B length | 26 mm |
| Side B length lower tolerance | -0.2 mm |
| Side B length upper tolerance | 0.2 mm |
| Thickness | 15 mm |
| Thickness Tolerance Lower Limit | 0.2 mm |
| Thickness Tolerance Upper Limit | -0.2 mm |
| Material Type | FS |
| Material | UVFS |
| Alpha Angle | 79 deg 30 min 0 sec |
| Alpha Angle tolerance | 0 deg 30 min 0 sec |
| Beta Angle | 60 deg 0 min 0 sec |
| Beta Angle tolerance | 1 deg 0 min 0 sec |
| Surface 1 | Value |
|---|---|
| Surface quality, grind or polish | Polished |
| Power and Irregularity, fringes @633 nm | 0(0.2) |
| Clear Aperture, % | 80 % - 100 % |
| Surface 2 | Value |
|---|---|
| Surface quality, grind or polish | Polished |
| Power and Irregularity, fringes @633 nm | 0(0.2) |
| Clear Aperture, % | 80 % - 100 % |
| Surface 3 | Value |
|---|---|
| Surface quality, grind or polish | Polished |
| Power and Irregularity, fringes @633 nm | 0(0.2) |
| Clear Aperture, % | 80 % - 100 % |
Variant files
Technical drawings, models and data files for SKU 325-1215.
Product brochures
Shared documentation for the complete product family.
