UV FS Series Lens Kits
← Back to product family

UV FS Series Lens Kits SKU: 140-1240-AR700-900

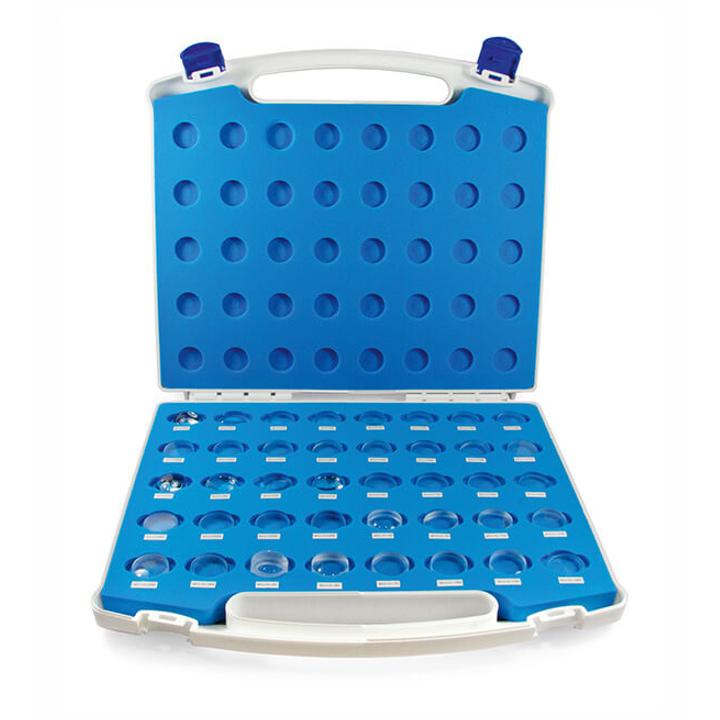

Lens kits contain a range of Ø 25.4 mm UV FS lenses with various different focal lengths. Kits include plano/convex, biconvex, plano/concave and biconcave lenses packed into a plastic box for safe handling and storage. We offer lens kits of two sizes: large lens kits with 40…

Variant specifications

Specification Value
Coating BBAR @ 700-900 nm, R<0.8 %
Group Large lens kits (40 lenses)

Shared product specifications

These specifications apply across the UV FS Series Lens Kits product family.

List of Lenses in Large UV FS Lens Kit — Plano-convex lenses (16 pcs.)

Code Dia, mm* F, mm Centre Thickness / CT, mm Edge Thickness / ET, mm
110-1203E 25.4 30 9.75 2.0
110-1205E 25.4 50 6.0 2.3
110-1209E 25.4 75 4.5 2.2
110-1210E 25.4 80 4.6 2.4
110-1211E 25.4 100 4.0 2.3
110-1216E 25.4 125 4.0 2.6
110-1217E 25.4 150 4.0 2.9
110-1219E 25.4 200 4.0 3.1
110-1221E 25.4 250 4.0 3.3
110-1223E 25.4 300 4.0 3.4
110-1225E 25.4 350 4.0 3.5
110-1227E 25.4 400 4.0 3.6
110-1233E 25.4 500 4.0 3.7
110-1235E 25.4 600 4.0 3.7
110-1239E 25.4 750 4.0 3.8
110-1245E 25.4 1000 4.0 3.8

List of Lenses in Large UV FS Lens Kit — Biconvex lenses (12 pcs.)

Code Dia, mm* F, mm Centre Thickness / CT, mm Edge Thickness / ET, mm
111-1204E 25.4 25 10.0 2.0
111-1207E 25.4 40 7.1 2.6
111-1210E 25.4 50 6.0 2.5
111-1214E 25.4 75 4.0 1.7
111-1218E 25.4 100 4.0 2.3
111-1222E 25.4 150 3.2 2.1
111-1226E 25.4 200 3.0 2.1
111-1230E 25.4 250 3.0 2.3
111-1234E 25.4 300 3.0 2.4
111-1238E 25.4 400 3.0 2.6
111-1240E 25.4 500 3.0 2.7
111-1260E 25.4 1000 3.0 2.8

List of Lenses in Small UV FS Lens Kit — Plano-convex lenses (10 pcs.)

Code Dia, mm* F, mm Centre Thickness / CT, mm Edge Thickness / ET, mm
110-1203E 25.4 30 9.75 2.0
110-1205E 25.4 50 6.0 2.3
110-1209E 25.4 75 4.5 2.2
110-1211E 25.4 100 4.0 2.3
110-1216E 25.4 125 4.0 2.6
110-1217E 25.4 150 4.0 2.9
110-1219E 25.4 200 4.0 3.1
110-1223E 25.4 300 4.0 3.4
110-1233E 25.4 500 4.0 3.7
110-1245E 25.4 1000 4.0 3.8
Material UV FS
Surface quality 40-20 scratch & dig (MIL-PRF-13830B)
Clear aperture 90% of the diameter
Diameter tolerance +0.00, -0.12 mm
Thickness tolerance ±0.5 mm
Surface irregularity λ / 8 @ 633 nm
Concentricity 3 arcmin
Paraxial focal length: / UV FS ±2% @ 355 nm

List of Lenses in Large UV FS Lens Kit — Plano-concave lenses (6 pcs.)

Code Dia, mm* F, mm Centre Thickness / CT, mm Edge Thickness / ET, mm
112-1205E 25.4 -50 1.9 5.5
112-1209E 25.4 -75 3.1 5.3
112-1211E 25.4 -100 3.0 4.7
112-1217E 25.4 -150 3.1 4.2
112-1219E 25.4 -200 3.1 4.0
112-1223E 25.4 -300 3.4 4.0

List of Lenses in Large UV FS Lens Kit — Biconcave lenses (6 pcs.)

Code Dia, mm* F, mm Centre Thickness / CT, mm Edge Thickness / ET, mm
114-1204E 25.4 -25 5.3 12.0
114-1208E 25.4 -50 4.2 6.0
114-1212E 25.4 -75 3.8 6.1
114-1216E 25.4 -100 3.6 5.3
114-1220E 25.4 -150 3.9 5.3
114-1224E 25.4 -200 3.0 3.8

List of Lenses in Small UV FS Lens Kit — Plano-concave lenses (5 pcs.)

Code Dia, mm* F, mm Centre Thickness / CT, mm Edge Thickness / ET, mm
112-1205E 25.4 -50 1.9 5.5
112-1209E 25.4 -75 3.1 5.3
112-1211E 25.4 -100 3.0 4.7
112-1215E 25.4 -125 3.0 4.4
112-1217E 25.4 -150 3.1 4.2

Product brochures

Shared documentation for the complete product family.

PDF
EKSMA_Optics_Lens_Kits.pdf PDF · 156 KB
